Airmar B60 sonda kroz trup univerzalni konektor

Airmar B60 sonda kroz trup univerzalni konektor

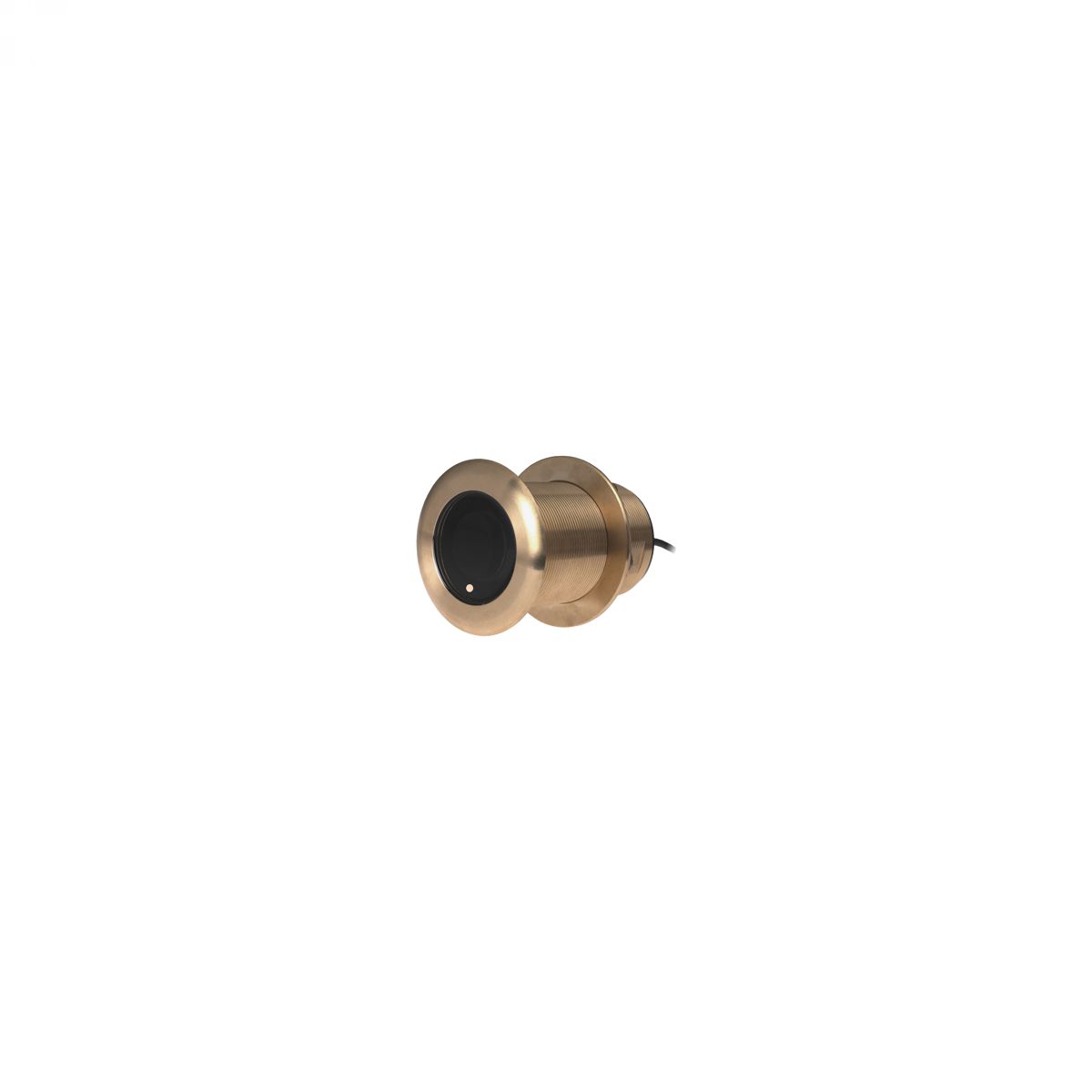

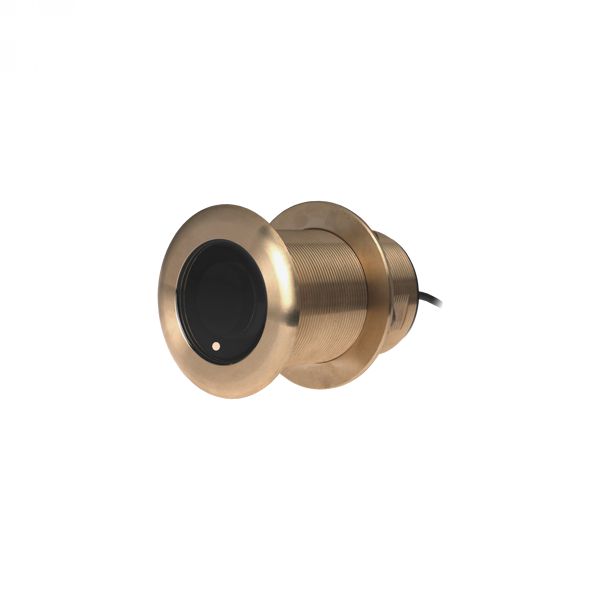

B60 Traditional/CW Tilted Element™ Thru-hull

B60 je brončana, kroz trup, dvofrekventna sonda, Dubina i temperatura vode

Airmar B60 sonda kroz trup univerzalni konektor dolazi u dvije verzije

• B60 Fixed 12° tilted version for 8 to 15° hull deadrise angles Art 31-554-2-01
• B60 Fixed 20° tilted version for 16 to 24° hull deadrise angles Art 31-556-2-01

pojedinosti

• Dubina i temperatura vode
• 600 W
• 50 kHz sa širokom širinom snopa od 45° za dubinske performanse do 353 m (1200′)
• 200 kHz sa širinom snopa od 12° za performanse dubine do 206 m (700′)
• Savršen za brodove sa središnjom konzolom ili prikolice
• Niskoprofilna izbočina pruža se samo 5 mm (3/16″) izvan trupa
• Nema utjecaja na radnu izvedbu vašeg plovila
• Brončano kućište za korištenje na trupovima od stakloplastike ili drva
• Težina: 2,8 kg
• 20,3 × 25,4 × 10,16 cm

.....................................................................................................................................

B60 Depth/Temperature Transducer ( 0° , 10°  ili 20° Tilt)

The B60 is a Bronze, thru-hull, tilted, dual-frequency, depth and temperature transducer.

The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Details

• Depth and water temperature
• 600 W

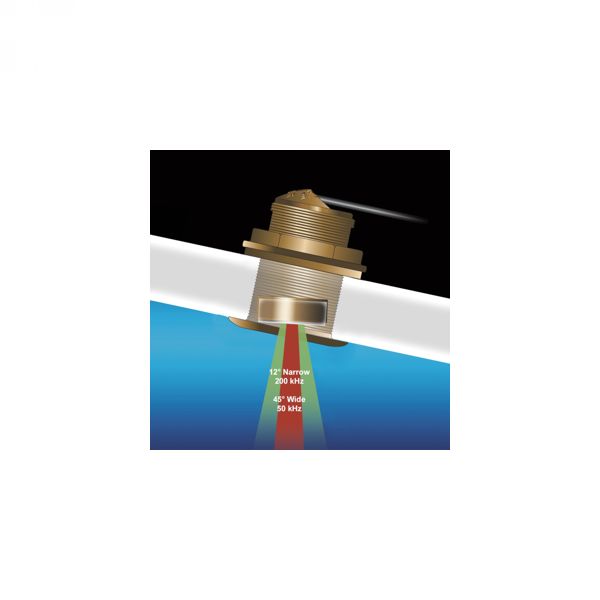

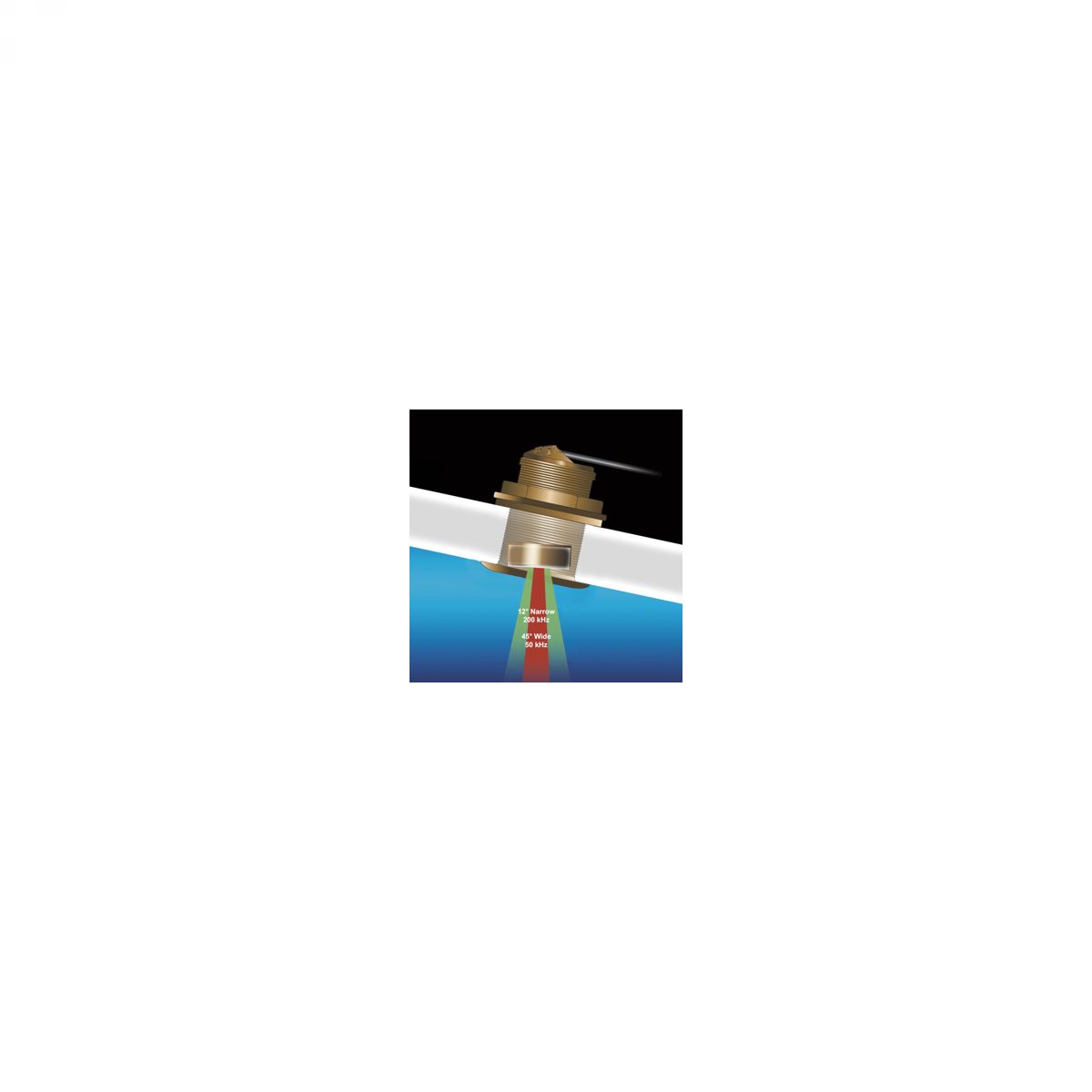

• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200′)
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
• Perfect for center-console or trailered boats
• Low-profile protrusion extends only 5 mm (3/16″) outside the hull
• No effect on your boat’s running performance
• Bronze housing for use on fiberglass or wood hulls
• Weight: 1.4 kg (3 lb.)
