B&G Triton2 Speed/Depth/Wind Instrument pack
Part Number: 000-14955-002
Uključuje
- zaslon s instrumentima Triton²,
- senzor dubine/brzine/temperature DST810,
- žičani senzor vjetra WS310
- početni kit NMEA 2000®.
Triton² zaslon u boji pruža jedriličarima jasan vizualni prikaz ključnih podataka o instrumentima uključujući brzinu, dubinu, vjetar, smjer, AIS ciljeve, GPS podatke i još mnogo toga.
Optički spojeni zaslon znači apsolutno nultu kondenzaciju ili zamagljivanje, dok transflektivna LCD tehnologija pruža izniman kontrast i vidljivost – danju ili noću – dok troši manje energije od tradicionalnih zaslona samo s pozadinskim osvjetljenjem. Fleksibilni, NMEA 2000® certificirani, Triton² zaslon može se integrirati u širi navigacijski sustav i također se može kombinirati s Triton² Pilot tipkovnicom i NAC autopilot računalom kako bi se stvorio potpuni sustav upravljanja autopilotom, sa algoritmima za upravljanje autopilotom specifičnim za B&G.
Ključne značajke Optičko spajanje S optički povezanim LCD zaslonom od 4,1 inča, Triton² vam omogućuje da jasno vidite u svim uvjetima sa svojim velikim jasnim zaslonom u boji 100% bez kondenzacije ili zamagljivanja. Učinkovita LCD tehnologija: Transflective LCD tehnologija koristi reflektirano ambijentalno svjetlo za poboljšanje dnevne vidljivosti, pružajući najjasniji dostupni namjenski zaslon za jedrenje. LED pozadinsko osvjetljenje pruža visoko podesivo osvjetljenje kada je potrebno, čineći Triton² iznimno učinkovitim i produžujući vrijeme dostupno iz kapaciteta baterije. Jednostavan za korištenje: Triton² pruža jednostavne izbornike na zaslonu kojima se upravlja mekanim i pouzdanim vodootpornim tipkama. Intuitivni dizajn olakšava konfiguriranje i korištenje vašeg zaslona. Dizajn niskog profila: Debljine od samo 8 mm, instrument Triton2 daje elegantan izgled svakom brodu. Gotovo upola manji od svojih debelih konkurenata, Triton² vam neće smetati, uhvatiti užad ili vrijeđati oko! NMEA 2000® certifikat: NMEA 2000 certifikat znači da možete biti sigurni kada dodajete Triton2 postojećem NMEA 2000 sustavu. NMEA 2000 certifikat također otvara široku paletu budućih opcija proširenja za vaš Triton² sustav. Jednostavna instalacija: Ravna metoda prednje montaže i okvir koji se pričvršćuje preko (4) vijka za montažu kombiniraju se s jednim NMEA 2000 priključkom koji nosi i napajanje i umreženi podaci. Triton² se jednostavno i brzo instalira Integracija autopilota: Triton² će prikazati B&G Pilot podatke na jasnom statusnom zaslonu. Dodatkom Triton² Pilot tipkovnice instrument postaje potpuno funkcionalan Pilot kontroler.
B&G Triton2 Speed/Depth/Wind Instrument pack
Part Number: 000-14955-002
COMES WITH
|

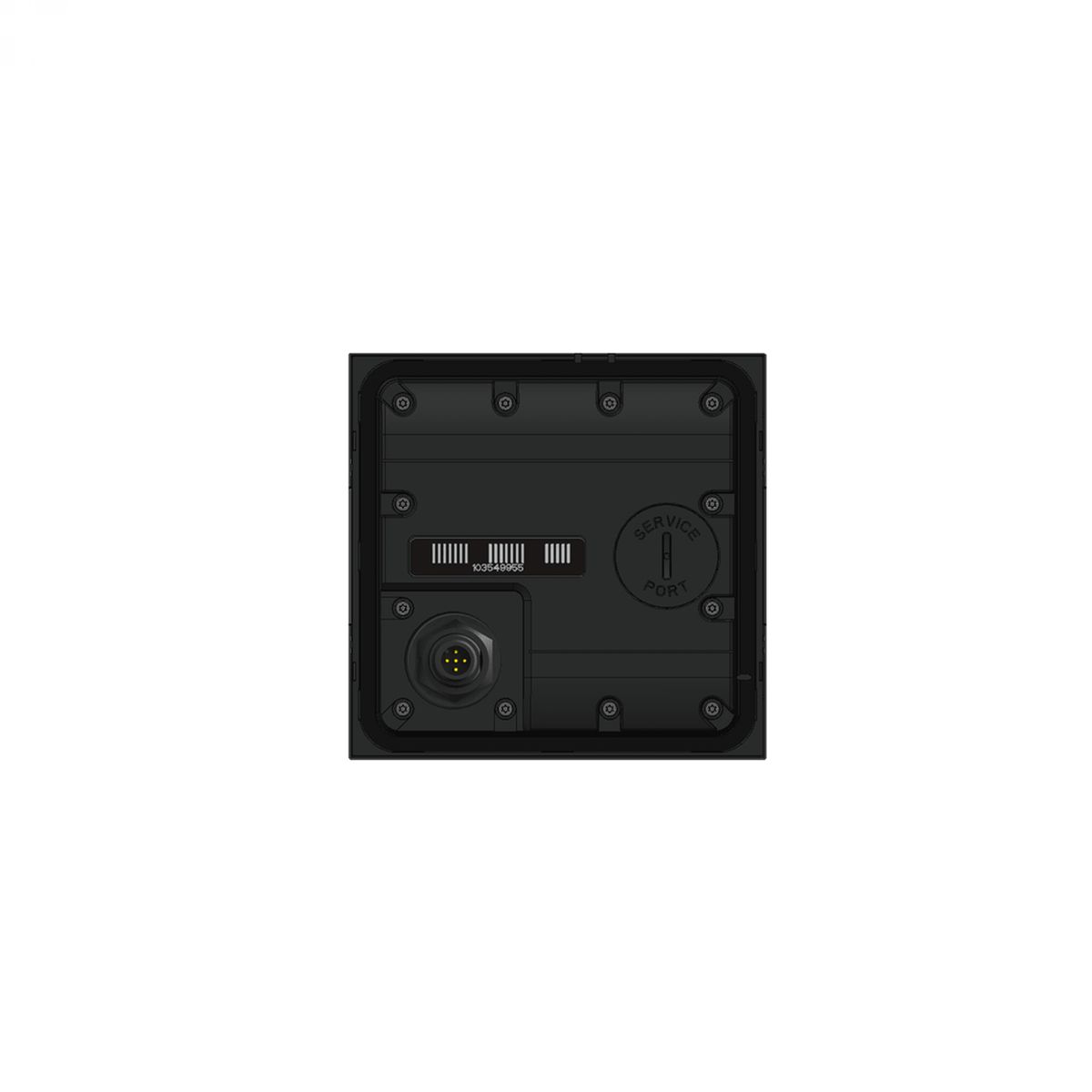

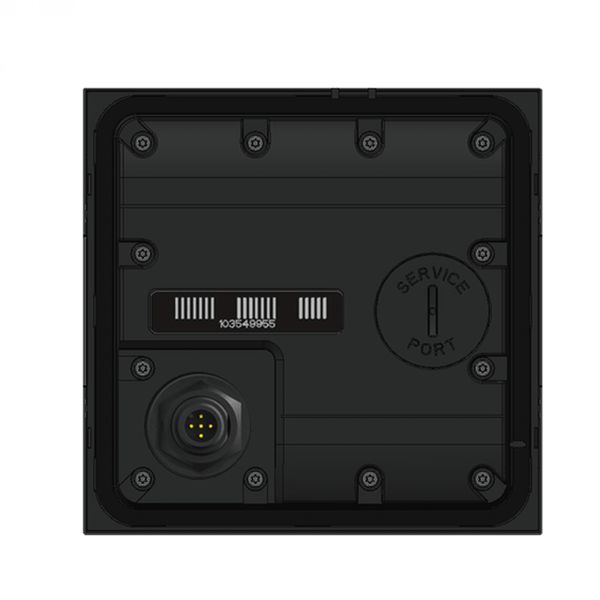

000-13294-001 |

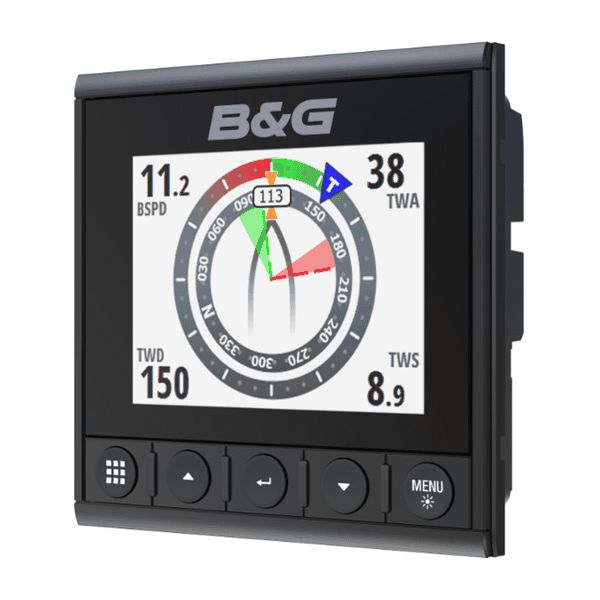

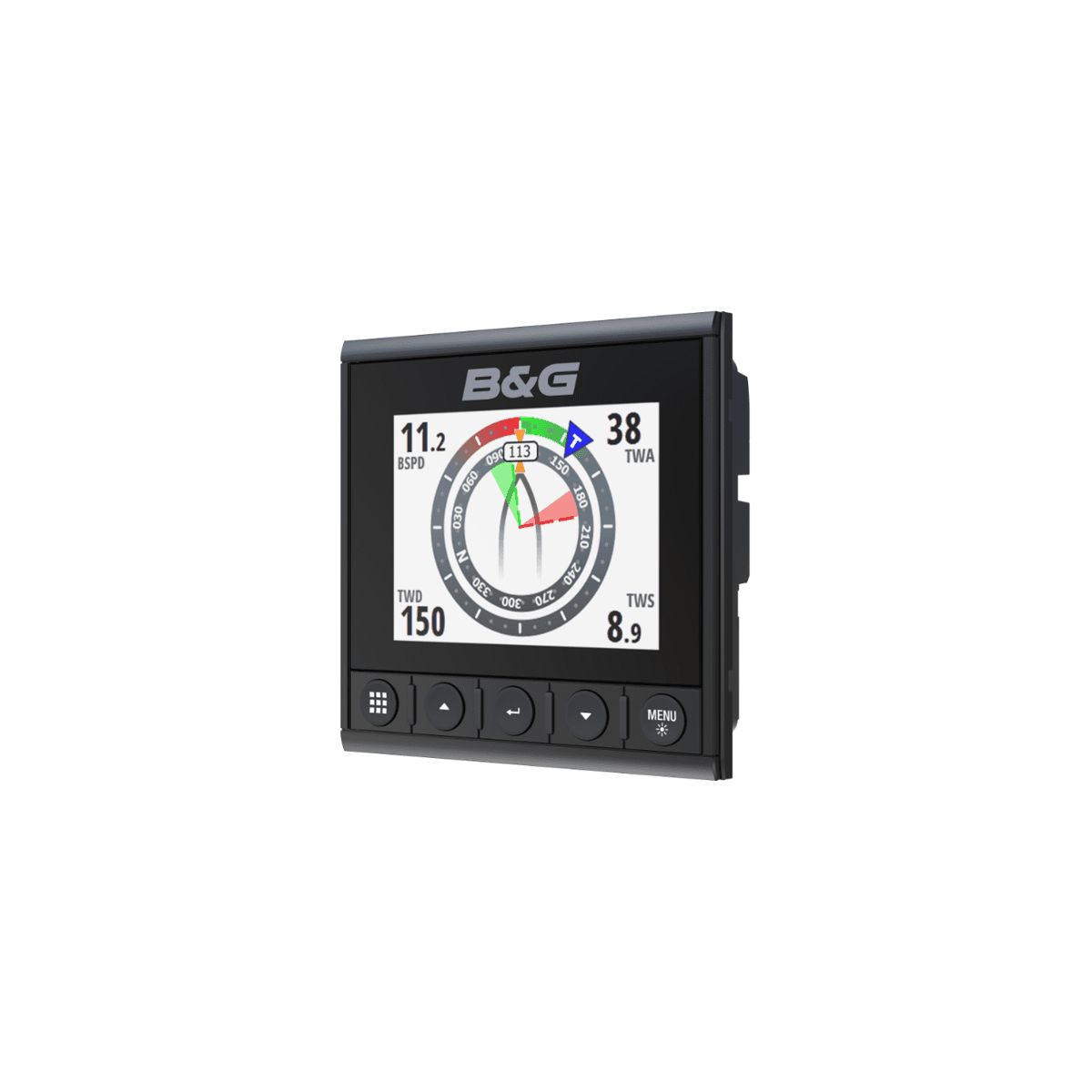

Triton² Digital Instrument Display
Triton² Digital Display - Multi-purpose 4.1 inch colour sailing instrument and autopilot display.
|
 |
000-0119-88 |
N2K Cable - 0.6m (2ft)
N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000® cable for backbone extension or drop cable to connect an additional network device
|
 |
000-0119-79 |
N2K T-Joiner
N2K-T-RD - Micro-C T-connector for connection of an additional network device
|
 |
000-13950-001 |
IS42 & Triton2 Installation Kit
IS42 & Triton2 Installation Kit - Includes edge bezel, screws and guide tool.
|
 |
000-13722-001 |
Suncover, Triton² Display
Suncover for B&G Triton² Display
|
|
 |
000-14391-001 |

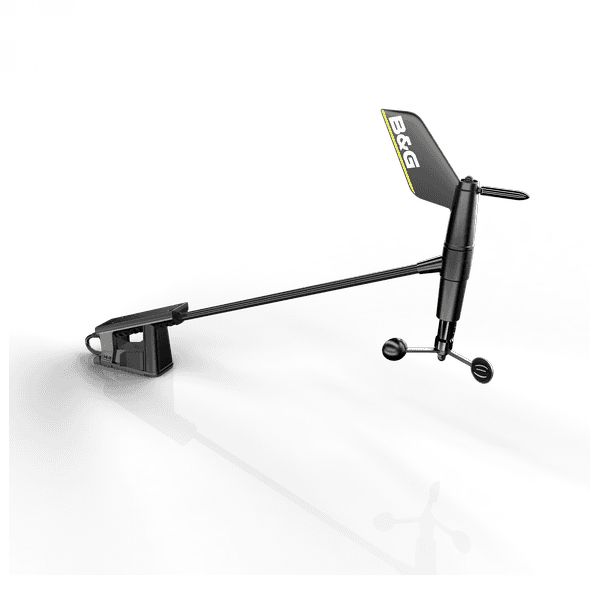

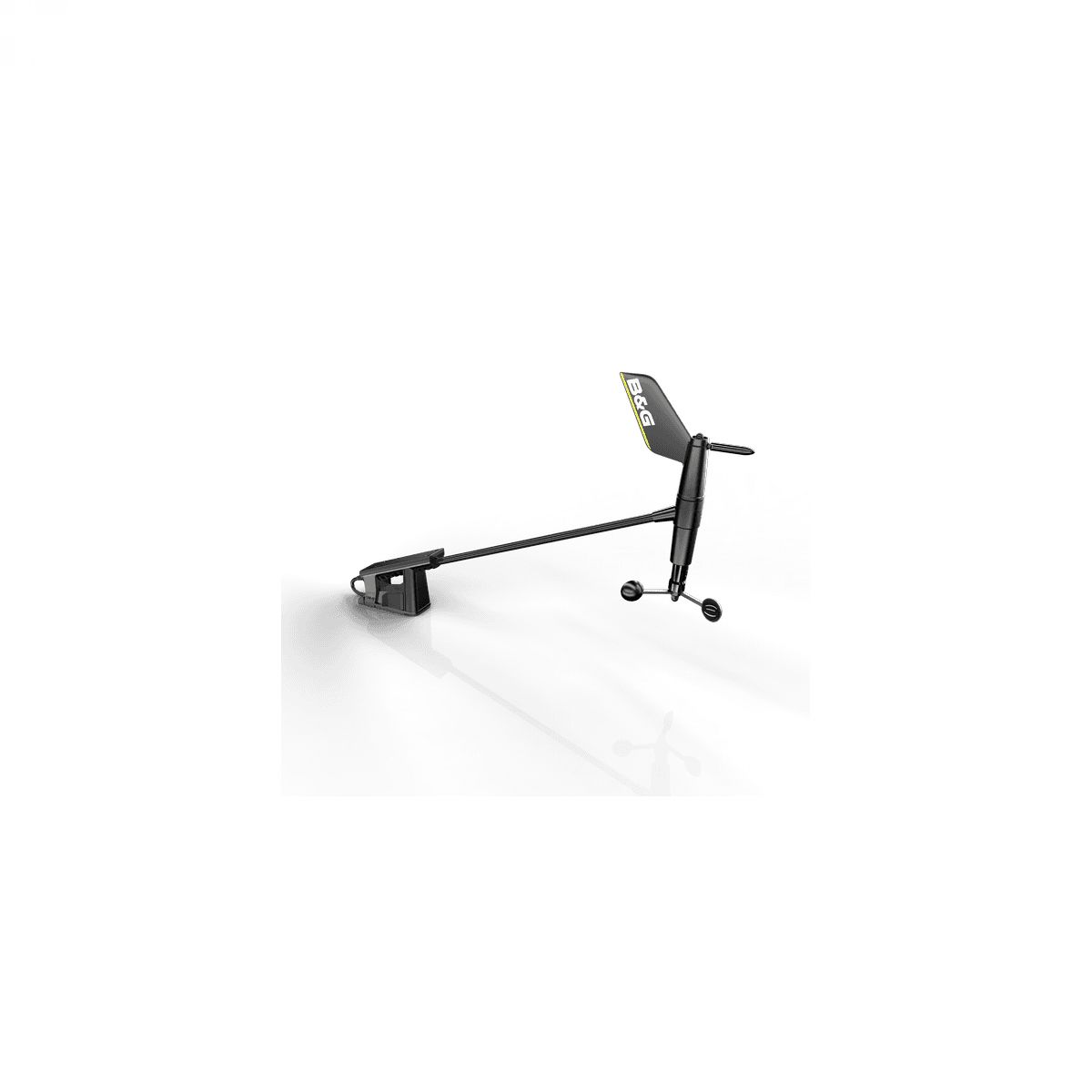

WS310 Wired Wind Sensor
WS310 Wired Wind Sensor only.
|
|
000-14389-001 |
WS310 Wired Interface

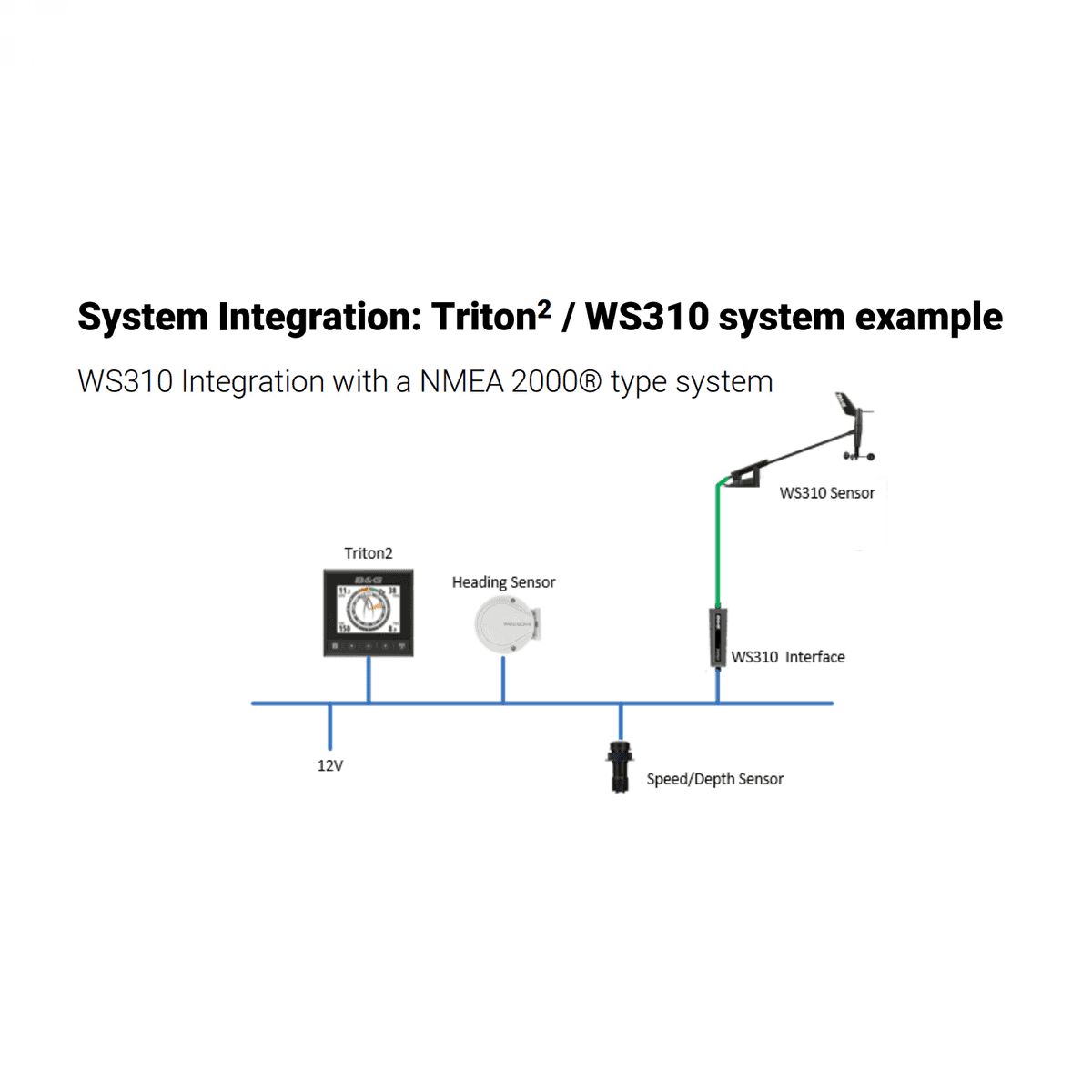

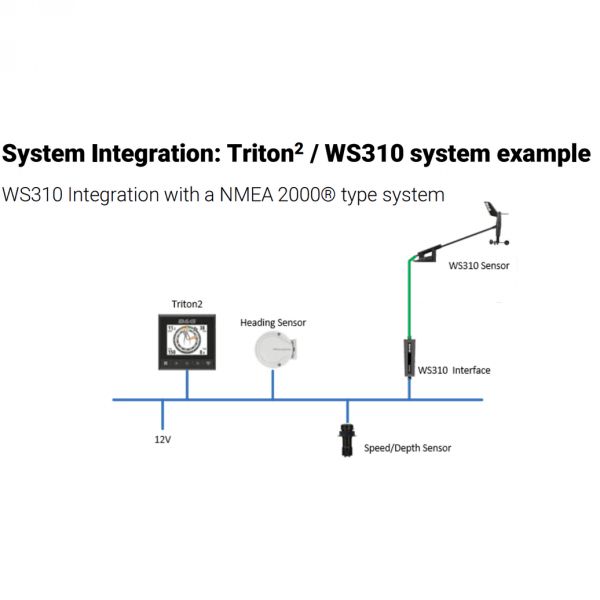

WS310 Wired Interface. Converts NMEA 0183 wind data from the Masthead Unit to NMEA 2000®.
|
|
|
 |
000-15735-001 |
DST-810 Depth/Speed/Temp Sensor (Plastic)
DST-810 Depth/Speed/Temp Sensor. Plastic thru-hull housing.
|
|
000-10760-001 |
N2K Autopilot backbone start kit
NMEA 2000 Micro-C Auto pilot network starter kit: Includes Network power cable, 4.5 m (15 ft) N2K cable, 3 x T-connectors, and 2 x network terminators.
|
|
|
 |
000-14396-001 |
WS310/700 20m (65') Mast Cable
20m (65’) mast cable with pre-molded connectors for the WS310 and WS700 series wired wind sensors.
|
B&G Triton2 Speed/Depth/Wind Instrument pack
Part Number: 000-14955-002

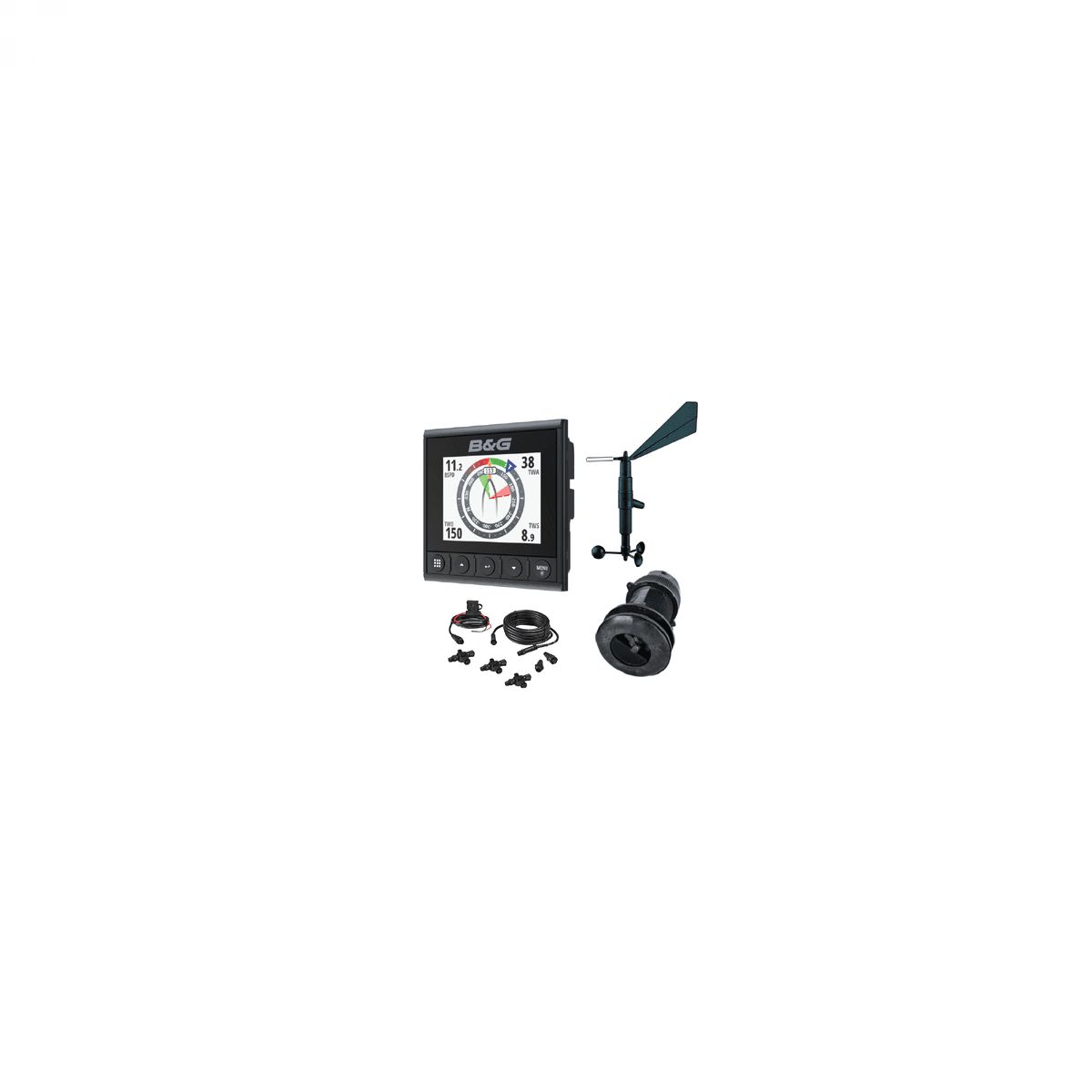

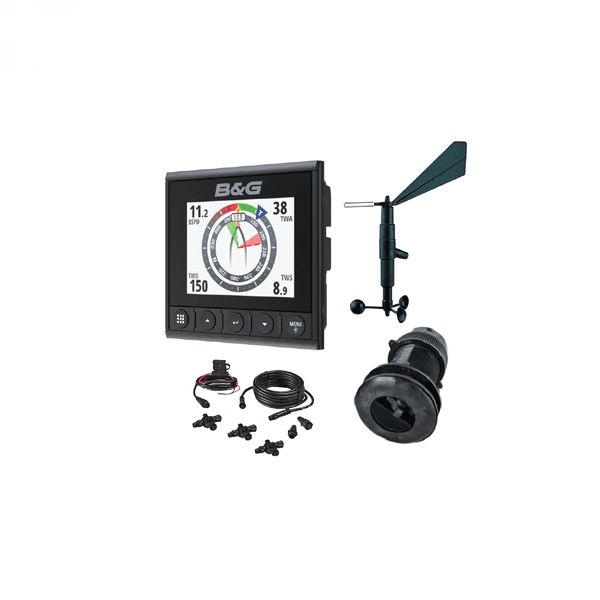

Includes Triton² Instrument Display, DST810 Depth/Speed/Temperature sensor, WS310 Wired Wind Sensor and a NMEA 2000® starter kit.

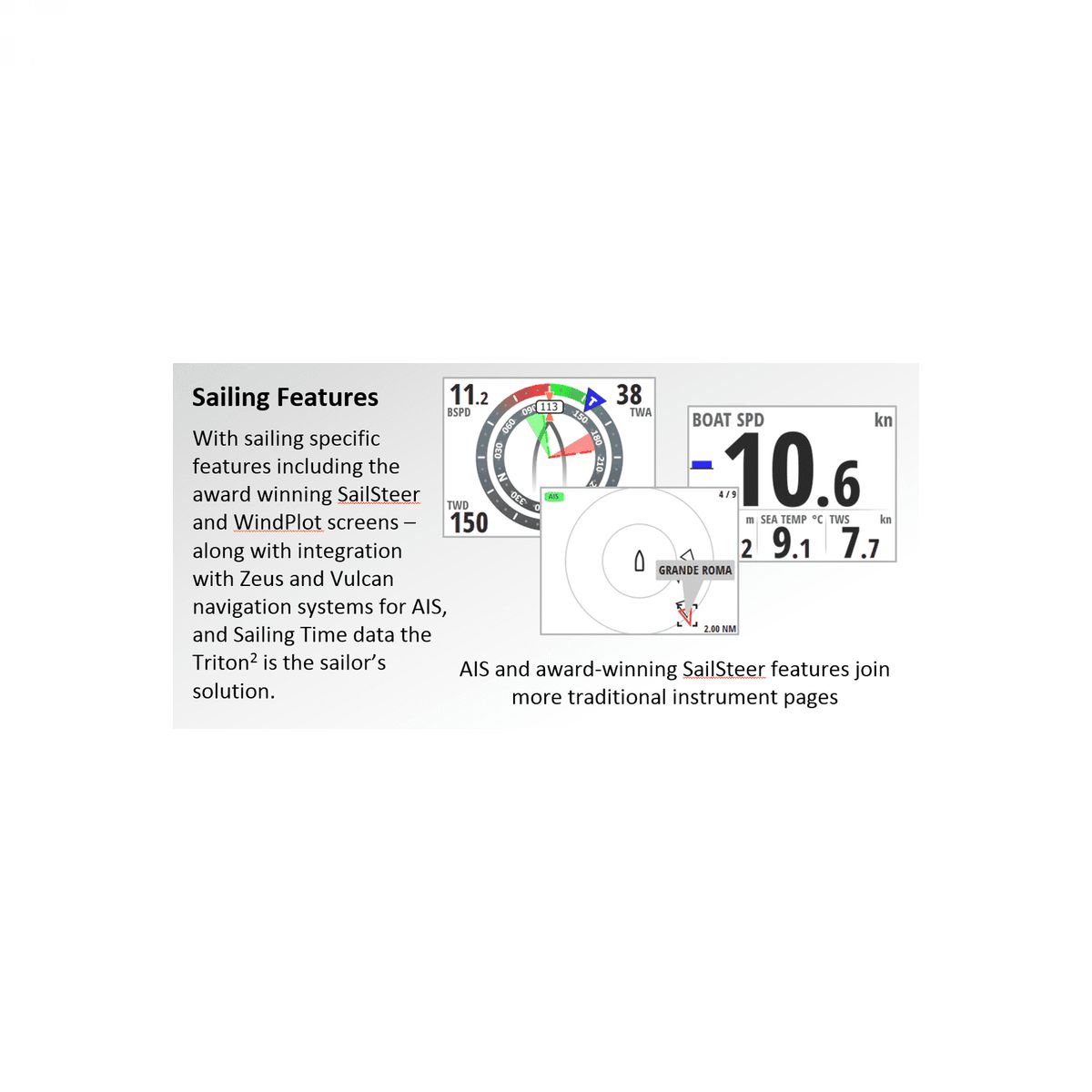

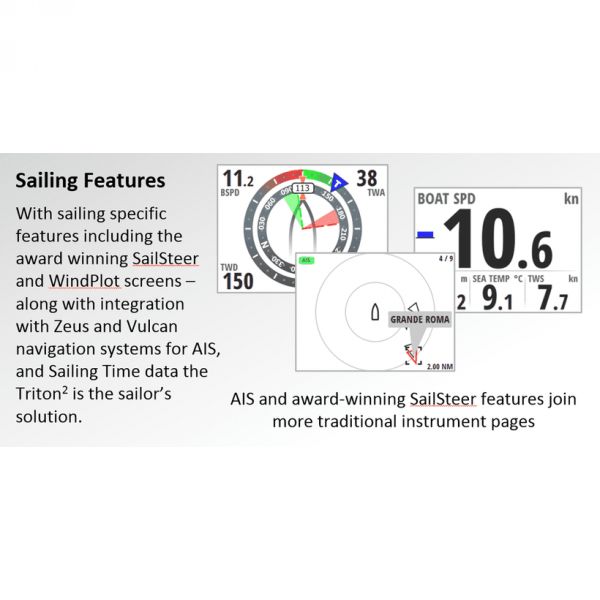

Overview The full-colour Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data and more.
An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility – day or night – while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.

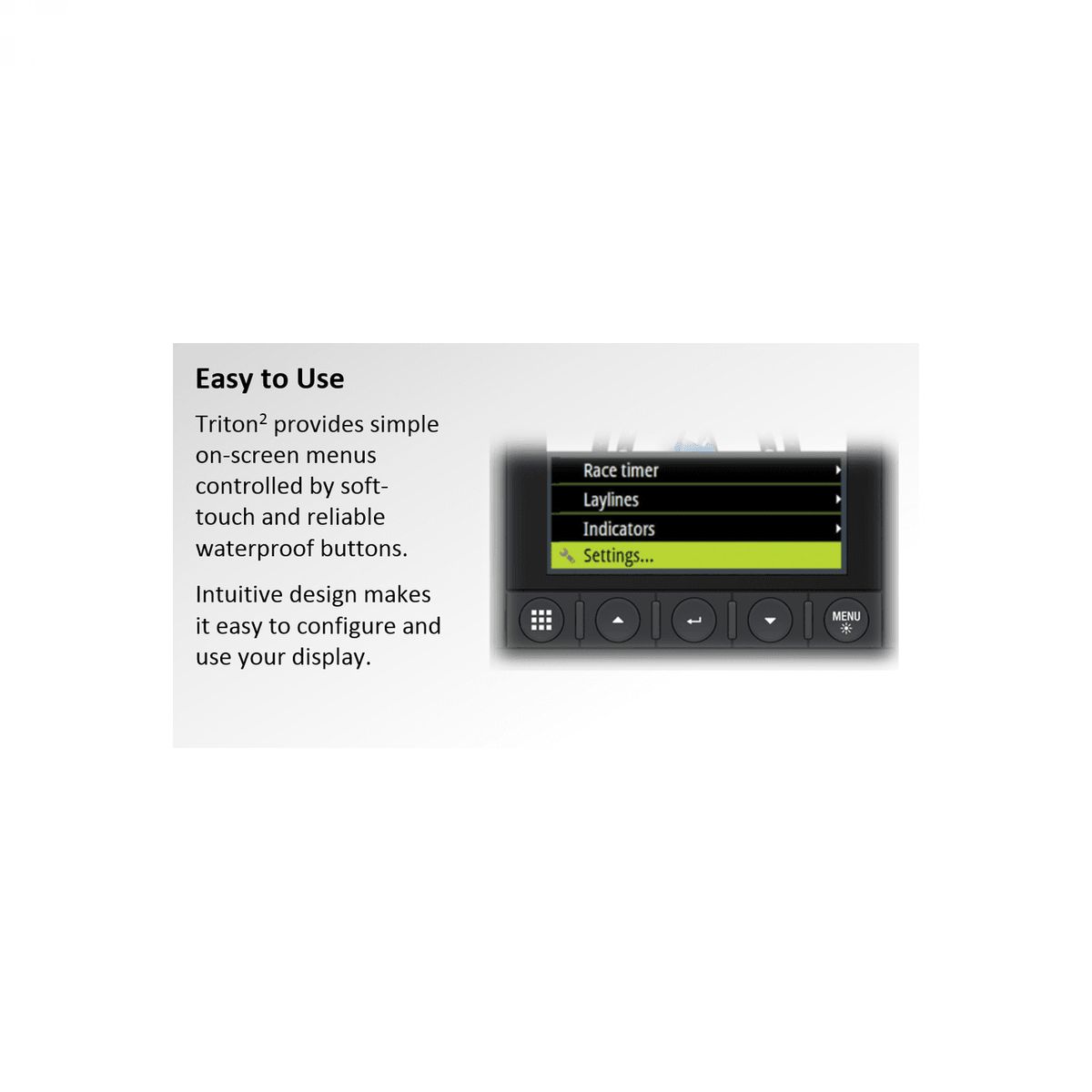

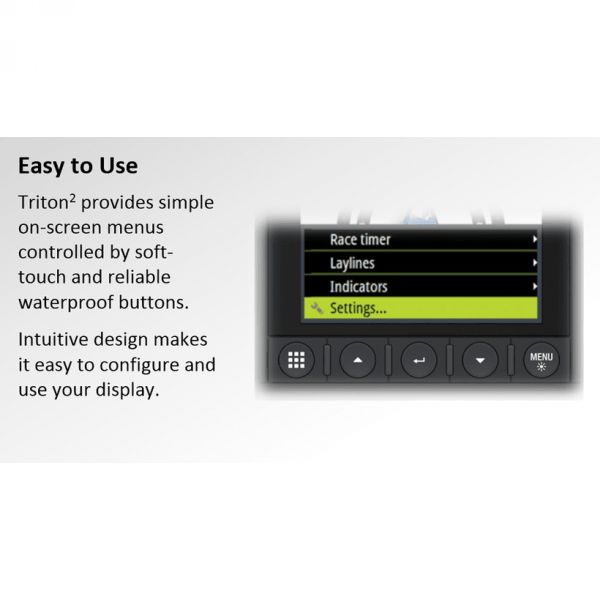

Key Features Optical Bonding Sporting an Optically Bonded 4.1-inch LCD display, Triton² allows you to see clearly in all conditions with its large clear colour display 100% free from condensation or fogging. Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity. Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons. Intuitive design makes it easy to configure and use your display. Low Profile Design: At just 8mm thin the Triton2 instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won’t get in the way, catch ropes or offend the eye! NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton2 to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system.. Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data. The Triton² is simple and quick to install Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen.With the addition of a Triton² Pilot keypad the instrument becomes a fully functional Pilot controller.
