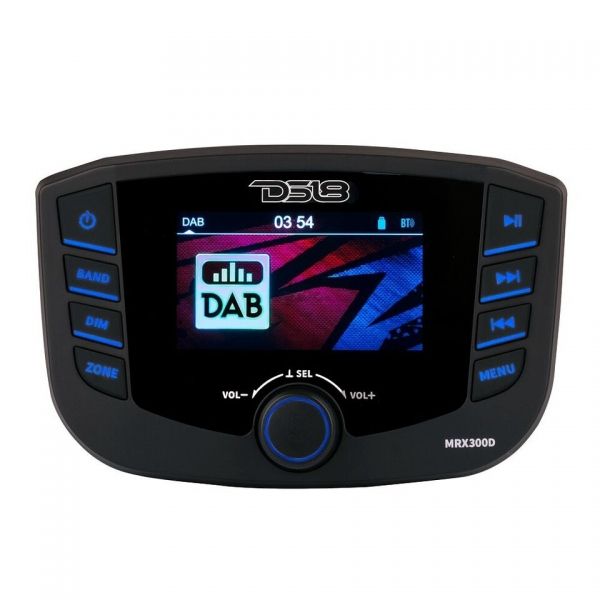

DS18 Audio MRX300D marine radio
DS18 MRX300D nudi potpunu kontrolu nad zvučnim sustavom vašeg plovila!
Povezivanje je jednostavno uz Bluetooth v5.0 za besprijekorno strujanje zvuka sa svih vaših omiljenih uređaja. USB priključak omogućuje reprodukciju glazbe i punjenje, podržavajući do 64 GB MP3 i WMA datoteka. S uključenim AUX ulazom, ulazom za DALJINSKI (preporučuje se MXRC) I ulazom za STRAŽNJU KAMERU, vaše pomorsko ili sportsko vozilo bit će spremno za sve!
Opremljen AM/FM tunerom i DAB+ kompatibilnošću, MRX300D dolazi s 30 unaprijed postavljenih postavki za jednostavan pristup vašim omiljenim postajama. Njegova univerzalna montažna rupa osigurava besprijekorno uklapanje u nadzornu ploču svakog plovila, dok njegova ocjena IPX6 i otpornost na UV/soli jamče dugotrajnu izdržljivost u teškim morskim uvjetima.
3-inčni TFT zaslon u boji MRX300D zaštićen je Gorilla Glass staklom i spojen da bude otporan na vodu i udarce. Podesivi gumbi s pozadinskim osvjetljenjem, dostupni u sedam boja, pružaju zadivljujuće sučelje kojim je lako upravljati čak iu uvjetima slabog osvjetljenja.
Ali ne radi se samo o izgledu – MRX300D pruža i iznimne audio performanse. Uz tri nezavisne zone kontrole, možete prilagoditi postavke glasnoće i tonova za svako područje vašeg plovila. 2-pojasni EQ omogućuje precizno podešavanje basa i visokih tonova u svakoj zoni, osiguravajući optimalnu reprodukciju zvuka prilagođenu vašim željama. Sa snažnim izlazom pretpojačala od 4,5 volta, ova glavna jedinica isporučuje nevjerojatnih 50 W MAX snage po kanalu na 2 ohma.
Doživite DS18 MRX300D i podignite svoj brodski zvuk na nove visine.
SPECS
- SKU MRX300D
- Radni napon 10,5 - 16 volti
- Upozorenje o niskom naponu DA (< 10,5 V)
- Ocjena vodootpornosti IPX6
- UV/zaštita od soli DA, B117 slana magla i D4329 testirano na izlaganje UV zračenju
- Tipke Guma + RGB pozadinsko osvjetljenje 7 boja po izboru (automatski/bijela/crvena/plava/zelena/ljubičasta/cijan/žuta)
- Panel zaslona Gorilla Glass s mokrim spojenim zaslonom
- EEPROM Da (sve postavke se spremaju kada se isključi napajanje)
- Vrsta zaslona Zaslon s tranzistorom tankog filma (TFT).
- Rezolucija 640*360 piksela, IPS
- DAB Frekvencijski raspon: 174,928-239,200 MHz
- Osjetljivost: 93dB
- Stereo odvajanje: 50 dB na 1 kHz
- Omjer signal/šum (S/N): 65 dB
AUDIO
- RMS 4 x 18 W pri 4 ohma, 4 x 25 W pri 2 ohma
- Maks. 4 x 50 W pri 2 ohma
- Minimalno opterećenje 2 ohma stabilno po kanalu
- Frekvencijski odziv 20Hz do 20Khz
- RCA predizlazni napon 4,5 volta
- Izlazna impedancija 500 ohma
- Ekvilajzer 2 pojasa (bas 80Hz, visoki tonovi 12Khz)
- Unaprijed postavljene postavke DA (S-bas/vokal/snažan/jasnoća)
- Kontrolna razina subwoofera (0 do 40)
- Audio zone 3 zone (Stereo + Subwoofer svaka)
- Neovisna kontrola zone DA (razina/ton)
- Audio ulaz L+R RCA (pomoćni ulaz)
TUNER
- FM frekvencijski raspon 87,5 - 108 MHz
- AM frekvencijski raspon 522 - 1620 KHz
- Prijemnik 18 FM / 12 AM
- Sustav radijskih podataka DA (AF/TA/NEWS) Mogućnost odabira
- Frekvencijski raspon 174,928-239,200 MHz
- Osjetljivost 93 dB
- Stereo odvajanje 50 dB na 1 kHz
- Omjer signal/šum (S/N) 65 dB
POVEZIVOST
- Bluetooth verzija 5.0 + EDR
- Audio Streaming A2DP
- USB kompatibilnost v2.0
- USB kapacitet 64 Gb maks
- USB kapacitet punjenja 2,1 Amp
- Kompatibilnost audio datoteka MP3, WMA
- Daljinski upravljač
- Žičani 3,5 mm priključak, (kompatibilan s MXRC)
DS18 Audio MRX300D marine radio
DS18 MARINE HEADUNIT TFT SCREEN 3 ZONES 4 VOLTS OUTPUT WITH DAB+ FOR EUROPE
Introducing DS18's MRX300D marine and powersports head unit. It features Bluetooth v5.0 for seamless audio streaming, a USB port for music playback and charging, and an AUX input. With AM/FM tuner, DAB+ compatibility, and 30 presets, accessing your favorite stations is easy. Its universal mounting hole ensures a seamless fit, while its IPX6 rating and UV/salt resistance guarantee durability. The 3-inch full-color TFT display is protected by Gorilla Glass and bonded for water and impact resistance. With three independent zones of control, customizable volume and tone settings, and a powerful 4.5-volt pre-amp output, the MRX300D delivers exceptional audio performance. Elevate your marine audio experience with DS18's MRX300D.
SPECS
- SKU MRX300D
- Operating Voltage 10.5 - 16 Volts
- Low Voltage Warning Alert YES (< 10.5V)
- Waterproof Rating IPX6
- UV/Salt Protection YES, B117 Salt Fog & D4329 UV Exposure Tested
- Buttons Rubber + RGB Backlit 7 Colors Selectable (Auto/White/Red/Blue/Green/Purple/Cyan/Yellow)
- Screen Panel Gorilla Glass with Wet Bonded Display
- EEPROM Yes (all settings are saved when power is disconnected)
- Display Type Thin Film Transistor (TFT) Display
- Resolution 640*360 pixel, IPS
- DAB Frequency Range: 174.928-239.200 MHz
- Sensitivity: 93dB
- Stereo separation: 50 dB at 1 kHz
- Signal/noise ratio(S/N): 65 dB
AUDIO
- RMS 4 x 18W @ 4ohm, 4 x 25W @ 2ohm
- Max 4 x 50W @ 2ohm
- Min Load 2 ohm Stable per Channel
- Frequency Response 20Hz to 20Khz
- RCA Pre-Out Voltage 4.5 Volts
- Output Impedance 500ohm
- Equalizer 2 Bands (Bass 80Hz, Treble 12Khz)
- Presets YES (S-Bass/Vocal/Powerful/clarity)
- Subwoofer Control Level (0 to 40)
- Audio Zones 3 Zones (Stereo + Subwoofer each)
- Independent Zone Control YES (Level/Tone)
- Audio Input L+R RCA (Aux Input)
TUNER
- FM Frequency Range 87.5 - 108 MHz
- AM Frequency Range 522 - 1620 KHz
- Tuner Presets 18 FM / 12 AM
- Radio Data System YES (AF/TA/NEWS) Selectable
- Frequency Range 174.928-239.200 MHz
- Sensitivity 93 dB
- Stereo separation 50 dB at 1 kHz
- Signal/noise ratio(S/N) 65 dB
CONNECTIVITY
- Bluetooth Version 5.0 + EDR
- Audio Streaming A2DP
- USB Compatibility v2.0
- USB Capacity 64 Gb Max
- USB Charge Capacity 2.1Amp
- Audio Files Compatibility MP3, WMA
- Remote Control
- Wired 3.5mm Jack Input, (Compatible with MXRC)

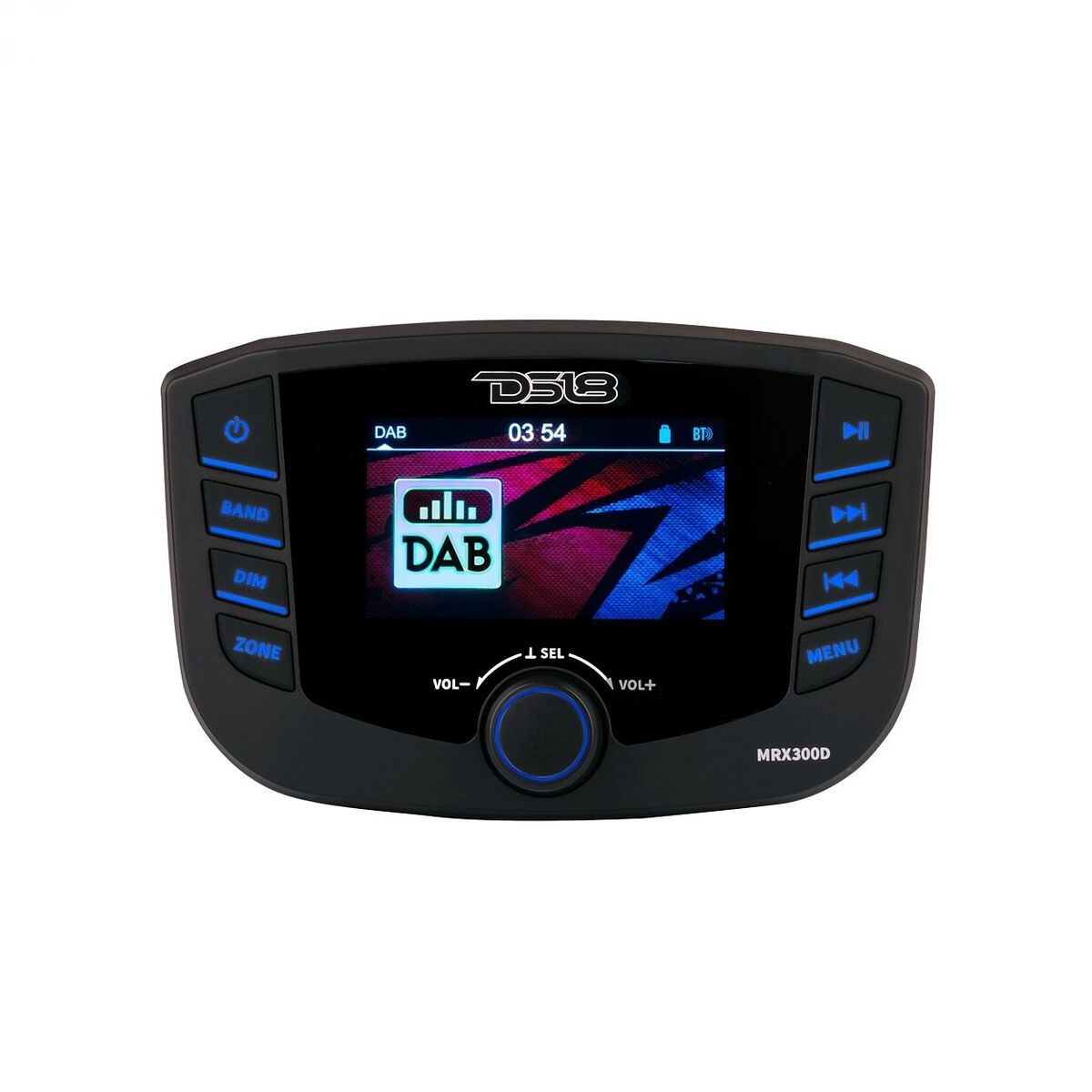

DS18 MRX300D
Marine & Powersports Head Unit

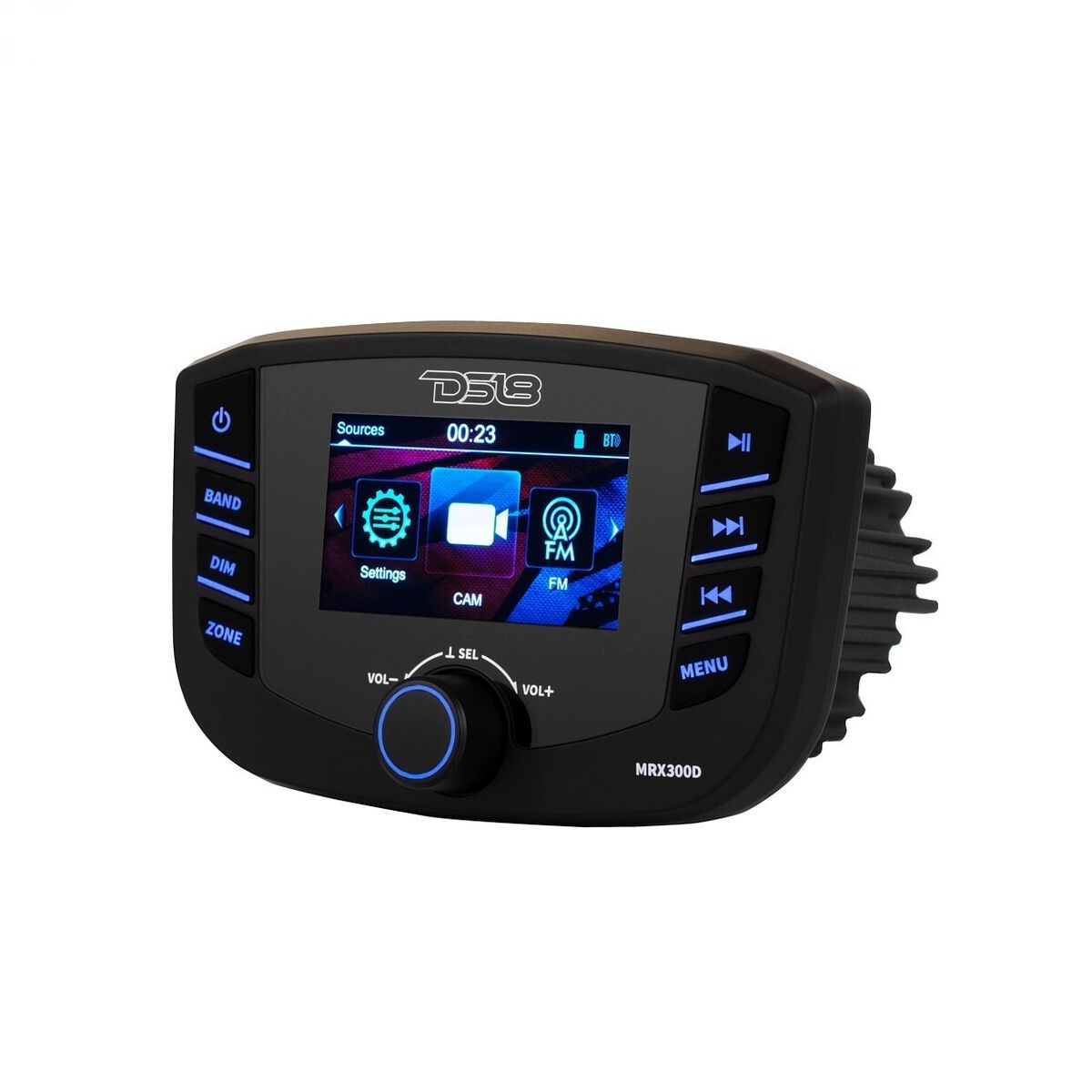

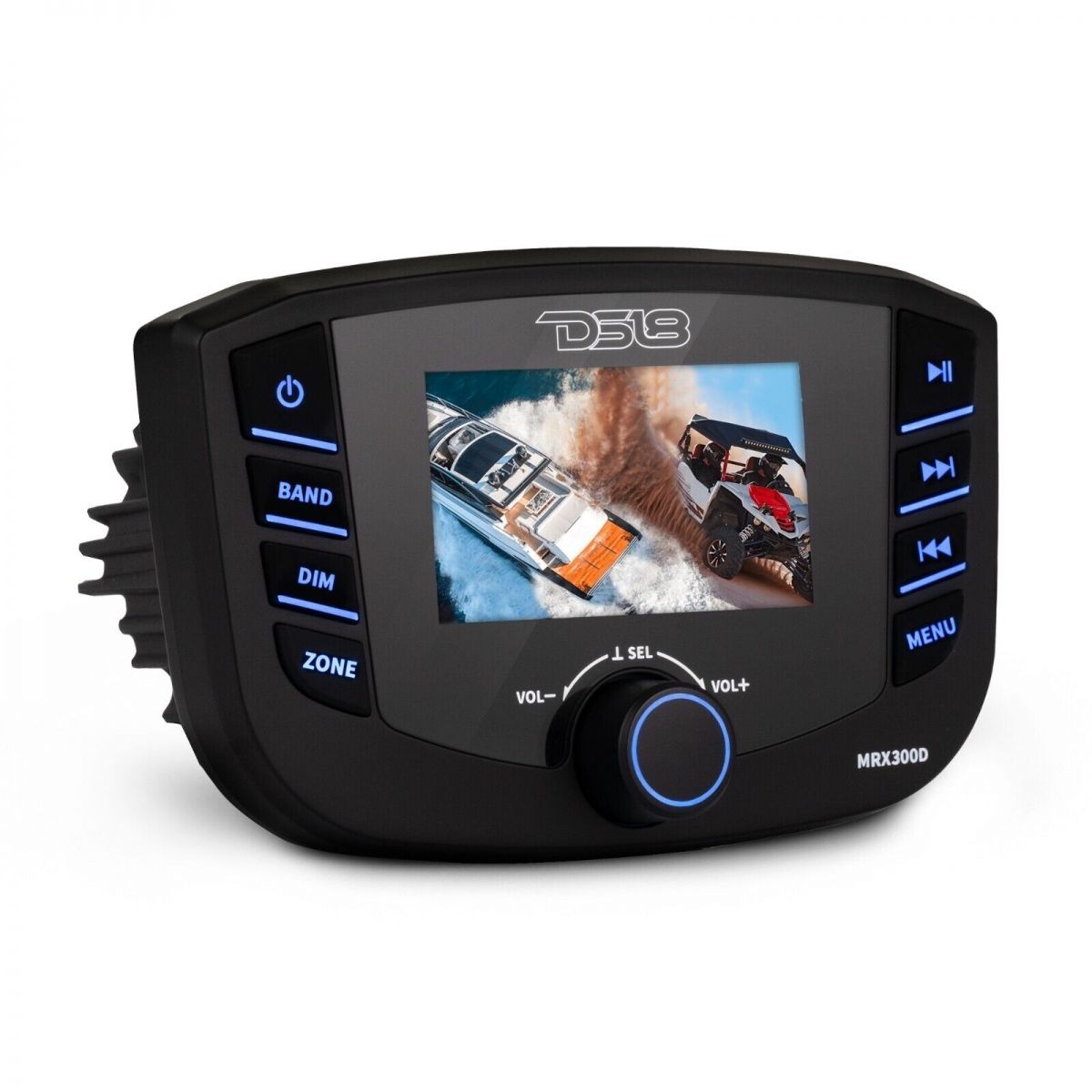

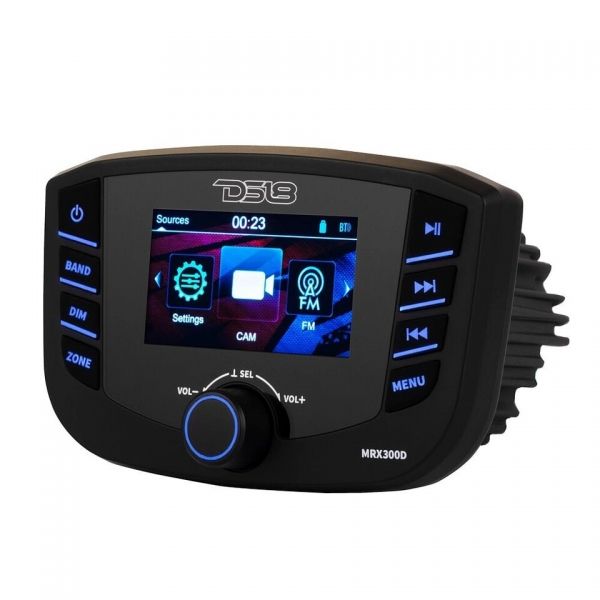

DS18’s MRX300D offers complete control over your boat's sound system!

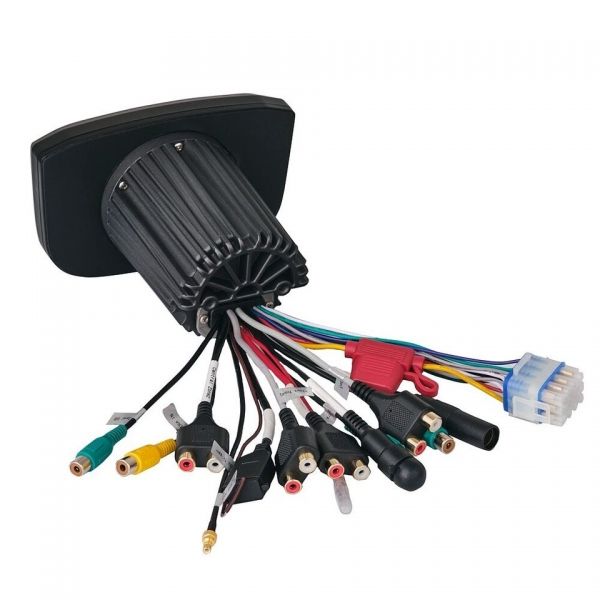

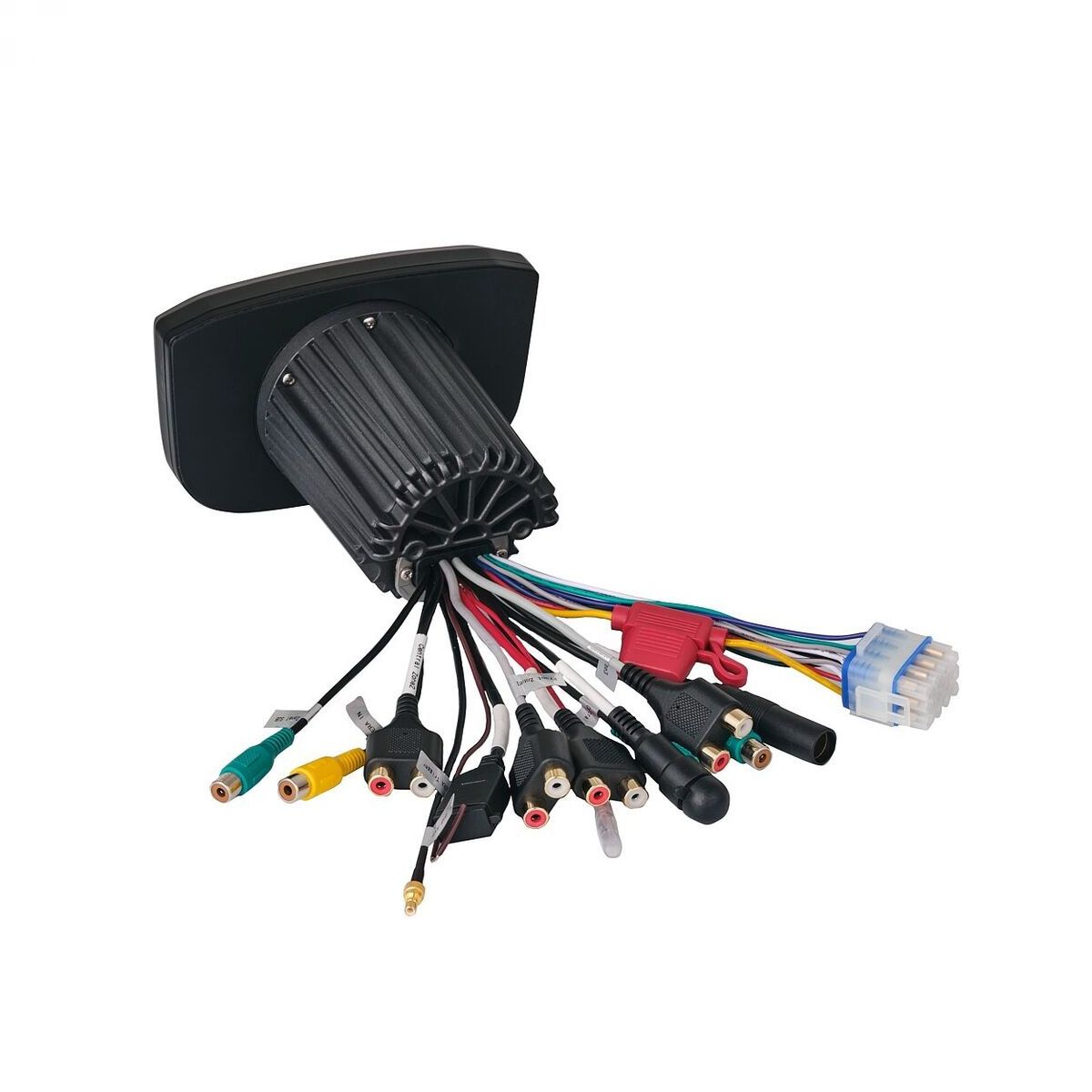

Connecting is easy with Bluetooth v5.0 for seamless audio streaming from all your favorite devices. The USB port allows for music playback and charging, supporting up to 64GB of MP3 and WMA files. With an included AUX input, REMOTE input (MXRC Recommended), AND REARVIEW CAMERA input, your marine or powersports vehicle will be ready for anything!
Equipped with an AM/FM tuner and DAB+ compatibility, the MRX300D comes with 30 presets for easy access to your favorite stations. Its universal mounting hole ensures a seamless fit into any boat's dashboard, while its IPX6 rating and UV/salt resistance guarantee long-lasting durability against harsh marine conditions.
The 3-inch full-color TFT display of the MRX300D is protected by Gorilla Glass and bonded to be resistant to both water and impact. The adjustable backlit buttons, available in seven colors, provide a stunning interface that is easy to navigate even in low-light conditions.
But it's not just about looks – the MRX300D delivers exceptional audio performance as well. With three independent zones of control, you can customize the volume and tone settings for each area of your boat. The 2-band EQ allows precise adjustments of bass and treble on each zone, ensuring optimal sound reproduction tailored to your preferences. With a powerful 4.5-volt pre-amp output, this head unit delivers a staggering 50 W of MAX power per channel at 2 ohm.
Experience DS18’s MRX300D and elevate your marine audio to new heights.
