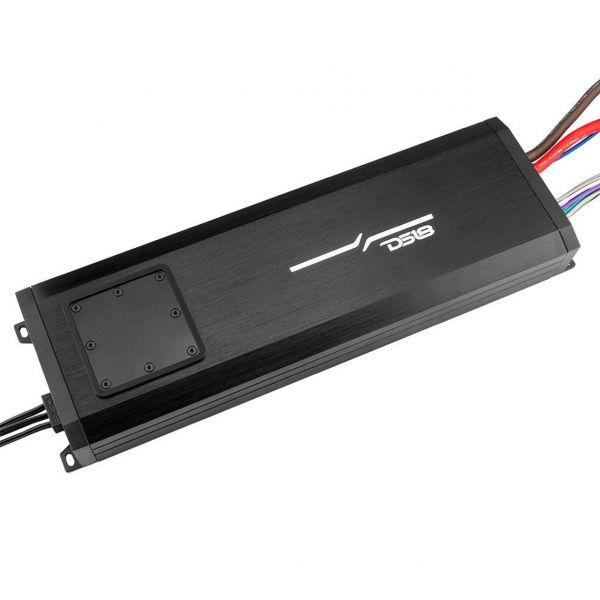

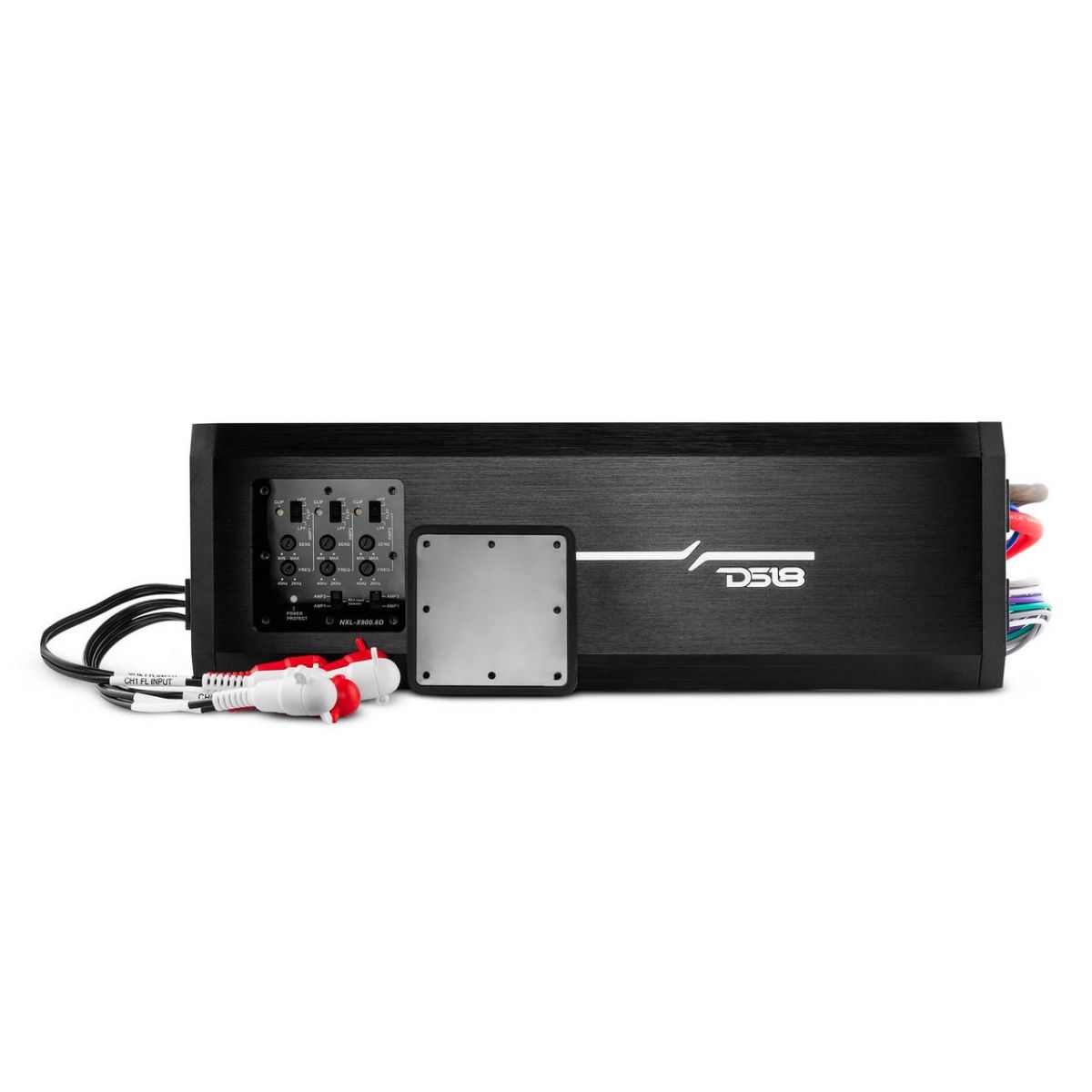

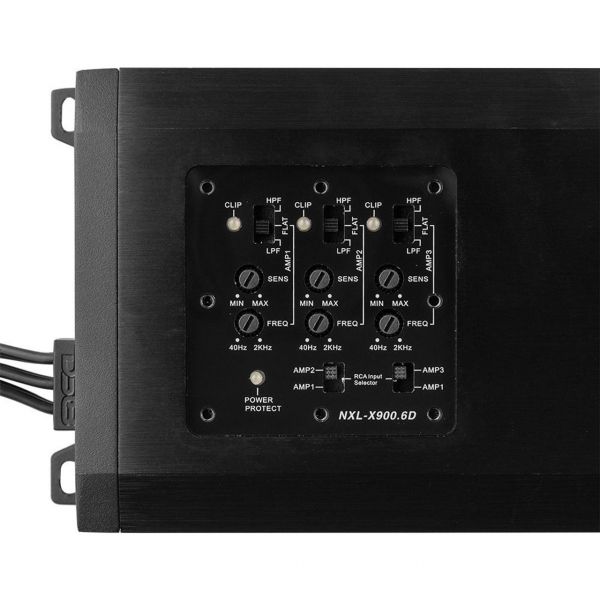

DS18 Audio NXL-X900.6D marine pojačalo 6-kanalno
- 6 kanalno,
- Full range,
- IPX7
- 6x150W RMS,
- 3x500W RMS Bridge,
- kod 4 ohma,
- Class D,
- Crossover.
DS18 Hydro NXL-X900.6D 6-kanalno pomorsko vodootporno pojačalo Klase D punog raspona @ 4 Ohma 150 x 6 RMS 3000 W Peak - Izvrsno za čamce, moto sportove, motocikle i sve elemente
OPIS
- DS18 Audio NXL 6-kanalno IP67 pojačalo punog raspona klase D (NXL-X900.6D)
- DS18 dizajnirao je NXL-X900.6D za kupce koji traže kompaktno i vodootporno pojačalo s iznimnom izlaznom snagom i daje prioritet pojačanju zvuka.
- Impresivna izlazna snaga serije NXL dopunjena je izvanrednom učinkovitošću, a njena izdržljivost u teškim uvjetima čini je omiljenom među korisnicima kojima je potrebno vodootporno pojačalo kao pokretač njihovog sustava.
- NXL-X900.6D dolazi u 6-kanalnoj konfiguraciji što ga čini izvrsnim za napajanje kompliciranijih aktivnih postavki.
- Visokopropusni i niskopropusni filtri pomoći će vam da točno ugodite svoj izbor zvučnika tako da možete dobiti kristalnu jasnoću od niske razine glasnoće pa sve do maksimuma za vrhunsko audio iskustvo.
- Sve NXL jedinice imaju stabilne i pouzdane 4-slojne PCB rasporede, IP67 ocjenu vodootpornosti za moćne sportove, imaju ultra-kompaktnu veličinu za jednostavnu instalaciju i imaju audio preciznu kontrolu kvalitete verifikacije.
- Serija NXL Marine Amplifier savršena je za entuzijaste na otvorenom koji traže izdržljivo, vodootporno pojačalo velike snage za audio sustav svojih pomorskih vozila. Ovu je seriju najbolje koristiti u raznim neravnim i mokrim okruženjima, poput staza ili na jezeru.
Značajke
- Priloženi pomorski osigurač i držač osigurača koji je spojen na vašu glavnu strujnu žicu pomoći će u vrhunskoj zaštiti od vremenskih nepogoda.
- IP67 ocjena vodootpornosti
- Zaštita od UV zraka, soli i magle
- Dizajn izravnog strujnog svežnja s OFC kalajisanim žicama za pomorsku upotrebu
- Najnoviji dizajn digitalnog pojačala sa SMC tehnologijom
- Maksimalna izlazna snaga od 500 W x 3 CH na 1 Ohma, 150 W x 6 CH na 4 Ohma i 250 W x 6 CH na 2 Ohma
DS18 Audio NXL-X900.6D marine pojačalo 6-kanalno
Specs
| POWER |
|
| Total Watts (Peak) |
3000W |
| RMS Power @ 4 ohm |
6 x 150W |
| RMS Power @ 2 ohm |
6 x 250W |
| RMS Power @ 1 ohm |
- |
| RMS Power @ 4 ohm Bridge |
3 x 500W |
| AUDIO |
|
| Frequency Response |
10Hz-20KHz |
| Signal to Noise Ratio 1W@4Ω |
> 84dB |
| Efficiency @ 4ohm |
0.87 |
| Input Impedance |
20KΩ |
| Channel Separation |
60dB |
| Total Harmonic Distortion (THD) |
< 0.03% |
| Low Level Input Range |
200mV-5V |

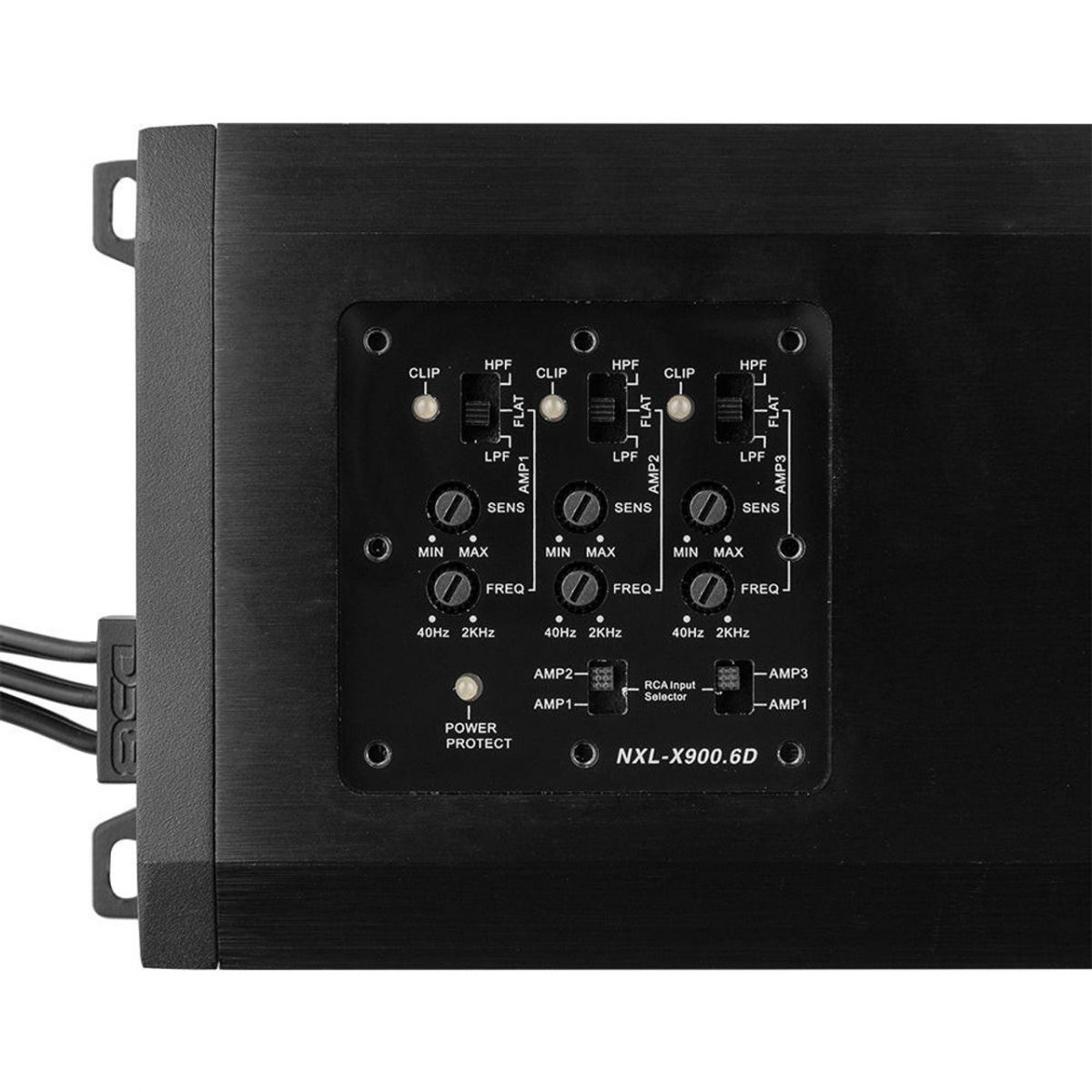

| Selectable X-Over |
Yes (HPF/Full/LPF) |
| X-Over Filter Range |
40Hz-2KHz |
| Bass Boost Range |
N/A |
| Bass Boost Frequency |
N/A |
| Infrasonic Filter |
No |
| Phase Selector |
No |
| FEATURES |
|
| Amplifier Class |
Digital |
| Amplifier Type |
Stereo Full Range |
| Number of Channels |
6 |
| Minimum Impedance |
2 Ohms (Stereo) / 4 Ohm (Bridge) |
| Led Indicators |
Power / Protection / Clip |
| Power Input Size |
4GA Tinned OFC |
| Fuse Size |
2 x 60A (120A) |
| Thermal Protection |
Yes (75°C) |
| Over-Load Protection |
Yes |
| Short Circuit Output Protection |
Yes |
| Voltage Input Protection |
Yes (7-16V) |
| Body Color / Finish |
Black Brushed Aluminum |
| MEASUREMENT |
|
| Overall Length |
14" / 360mm |
| Overall Wide |
4.4" / 112mm |
| Overall Height |
1.77" / 45mm |
| Heatsink Length |
12.5" / 320mm |
| Gross Single Unit Weight |
2.6kg |
Compatibility
- Marine
- Off Road
- DIY Projects
DS18 Audio NXL-X900.6D marine pojačalo 6-kanalno
DS18 Hydro NXL-X900.6D 6-Channel Marine Waterproof Amplifier Class D Full-Range @ 4 Ohms 150 x 6 RMS 3000 Watts Peak - Great for Boats, Motorsports, Motorcycles, and All Elements Applications
DESCRIPTION
- DS18 Audio NXL 6-Channel Full-Range Class D IP67 Amplifier (NXL-X900.6D)
- DS18 designed the NXL-X900.6D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizes boosting sound.
- The NXL series impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.
- The NXL-X900.6D comes in a 6-channel configuration making it great for powering more complicated active setups.
- The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.
- All NXL units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.
- The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle's audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.
Features

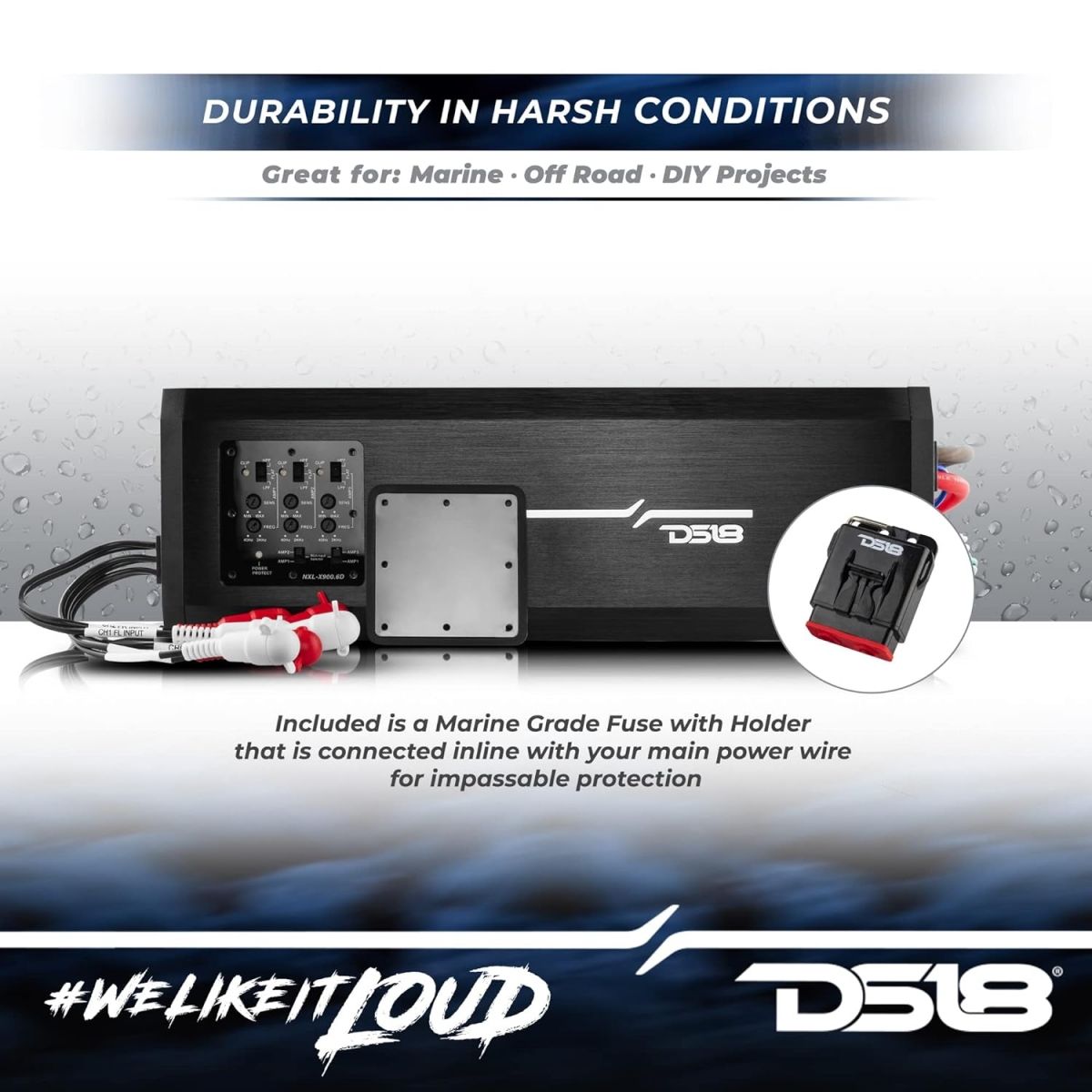

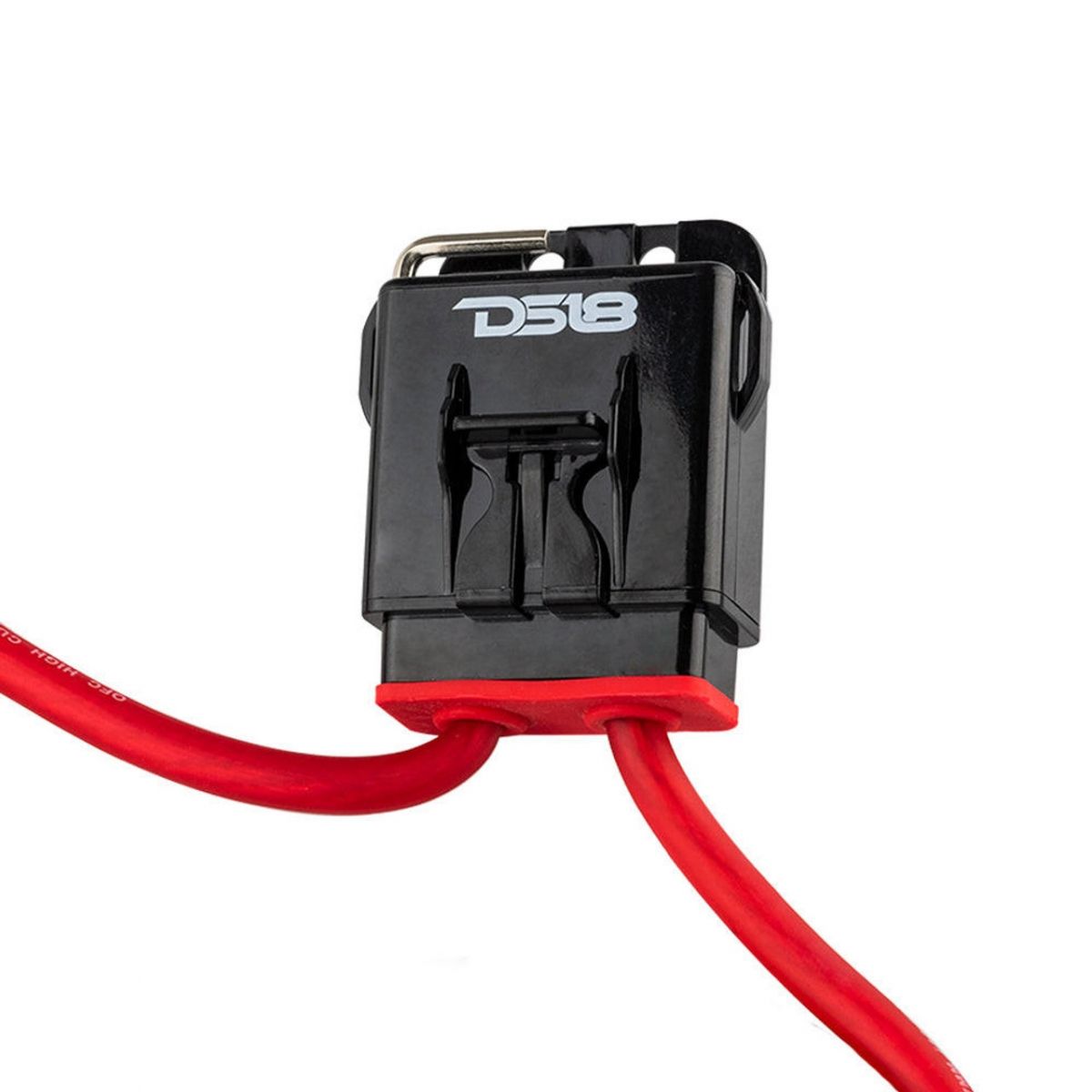

- The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
- IP67 Waterproof Rating
- UV, Salt and Fog Protection

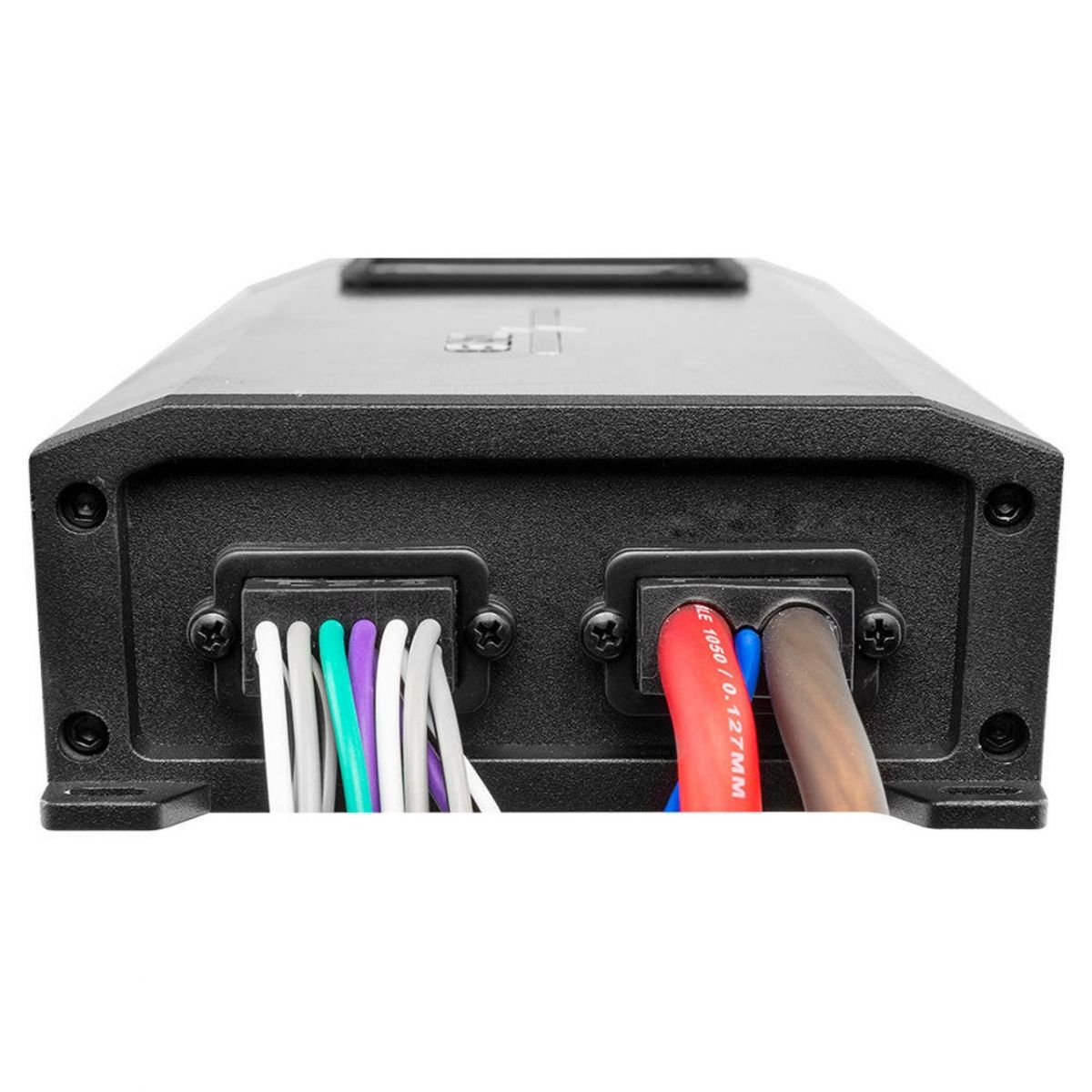

- Direct Power Harness Design with Marine Grade OFC Tinned Wires
- Latest Digital Amplifier Design With SMC Technology
- Maximum output of 500W x 3CH at 1-Ohms, 150W x 6CH at 4-Ohms, and 250W x 6CH at 2-Ohms
