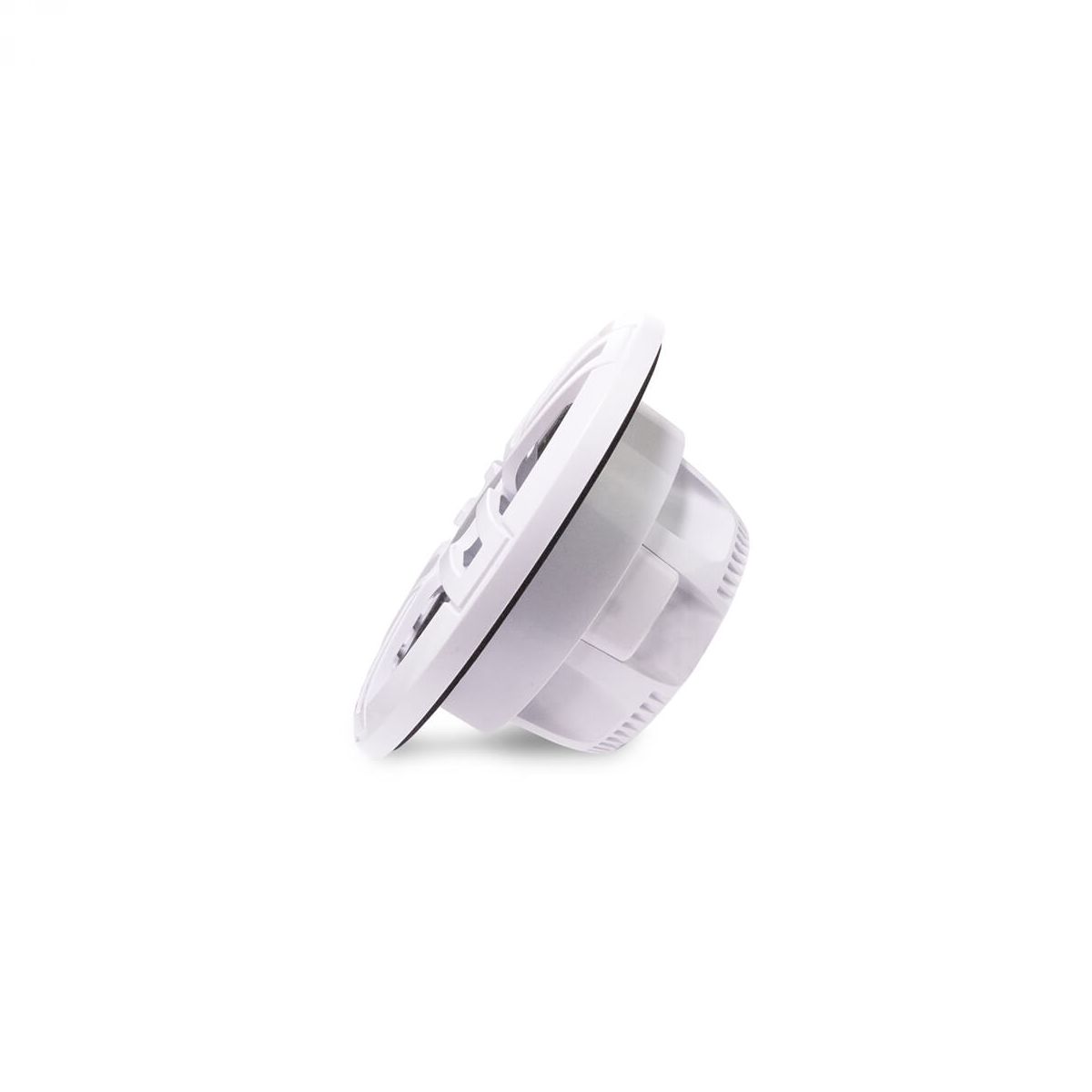

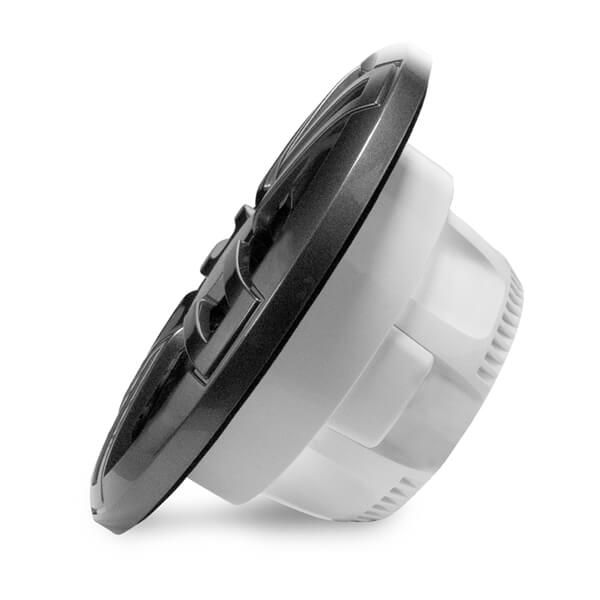

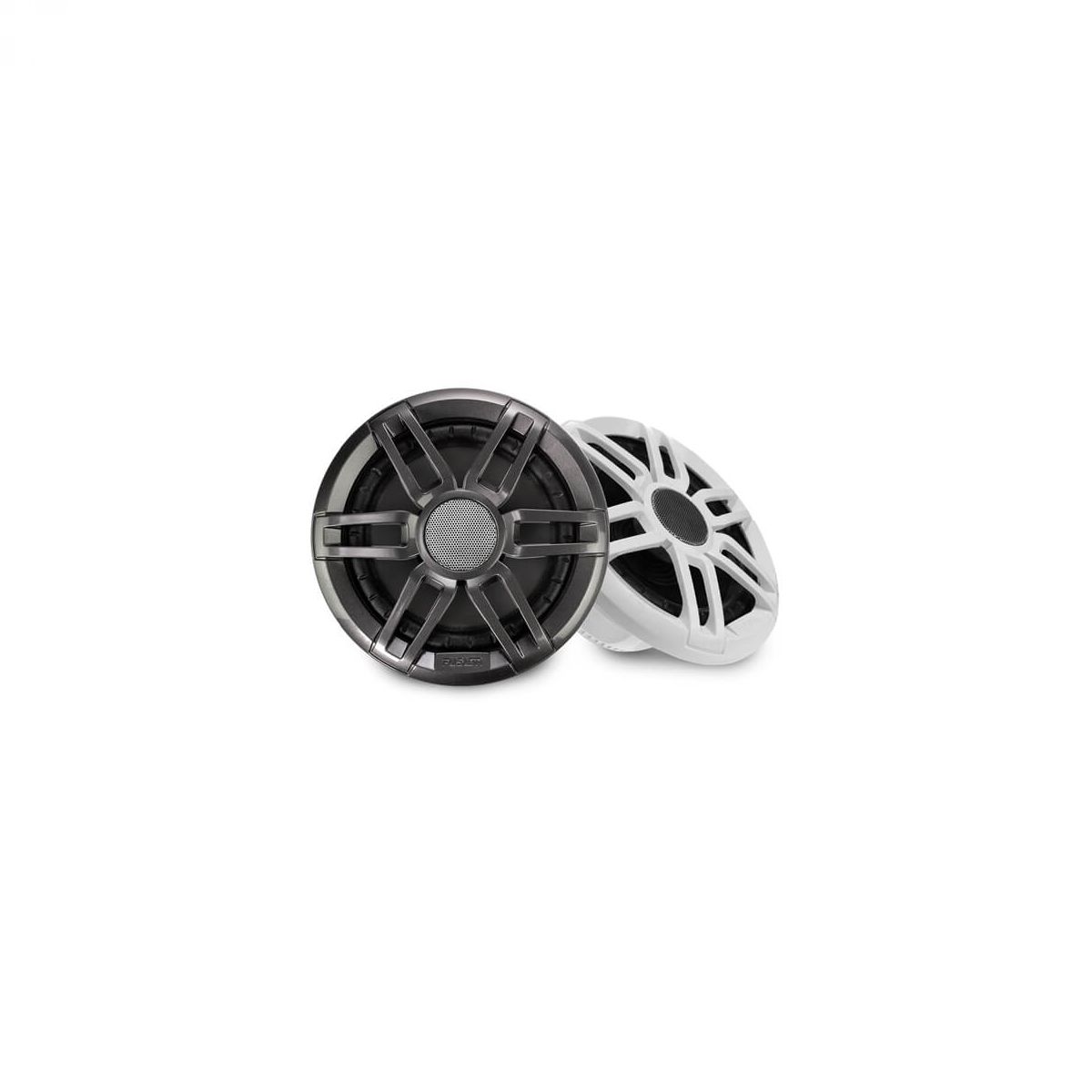

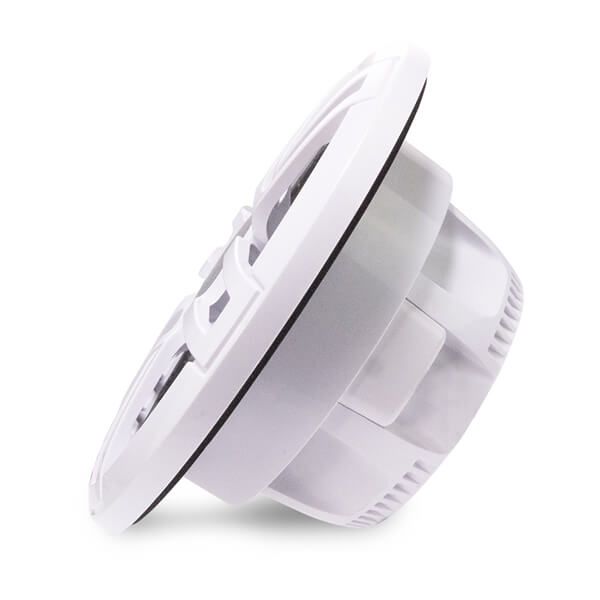

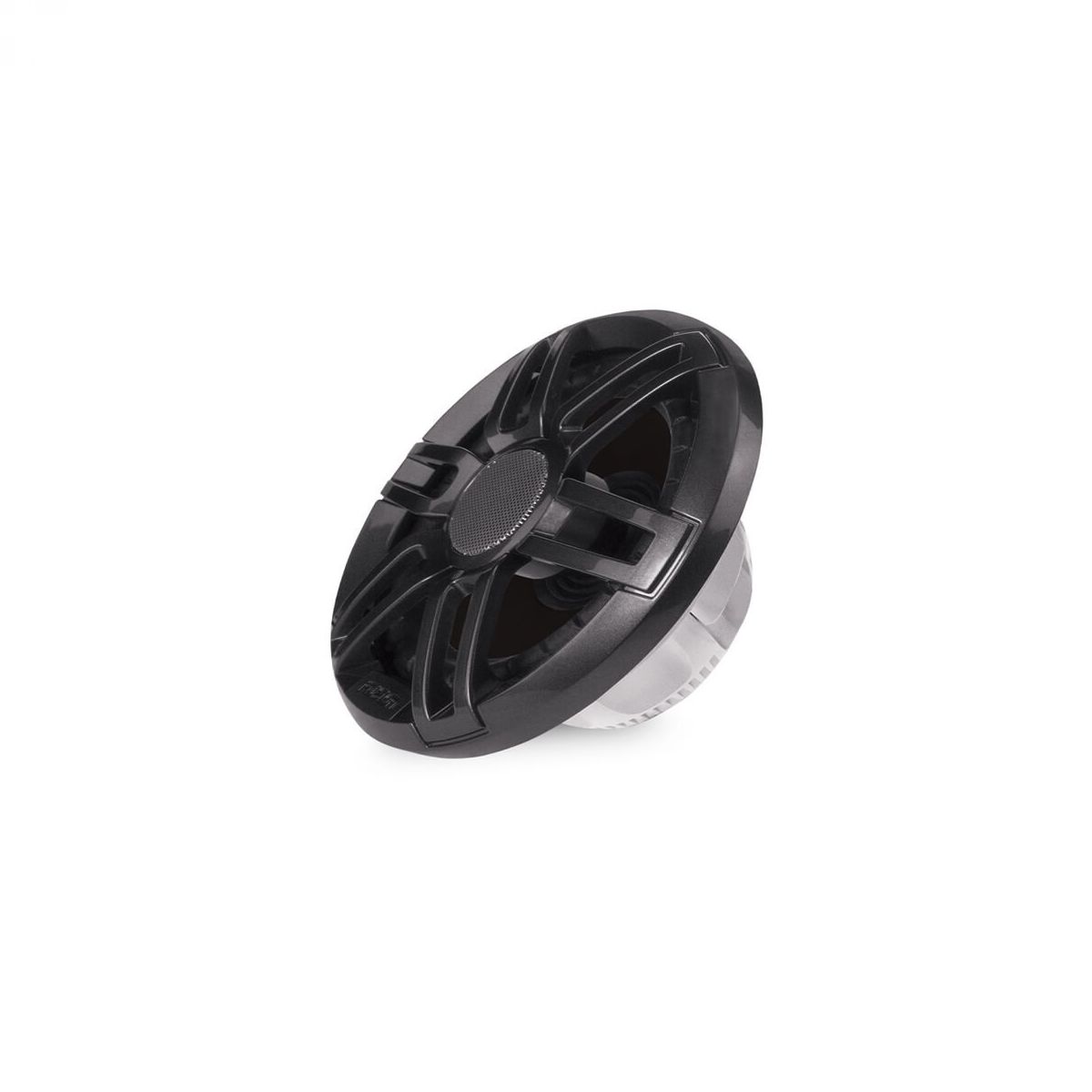

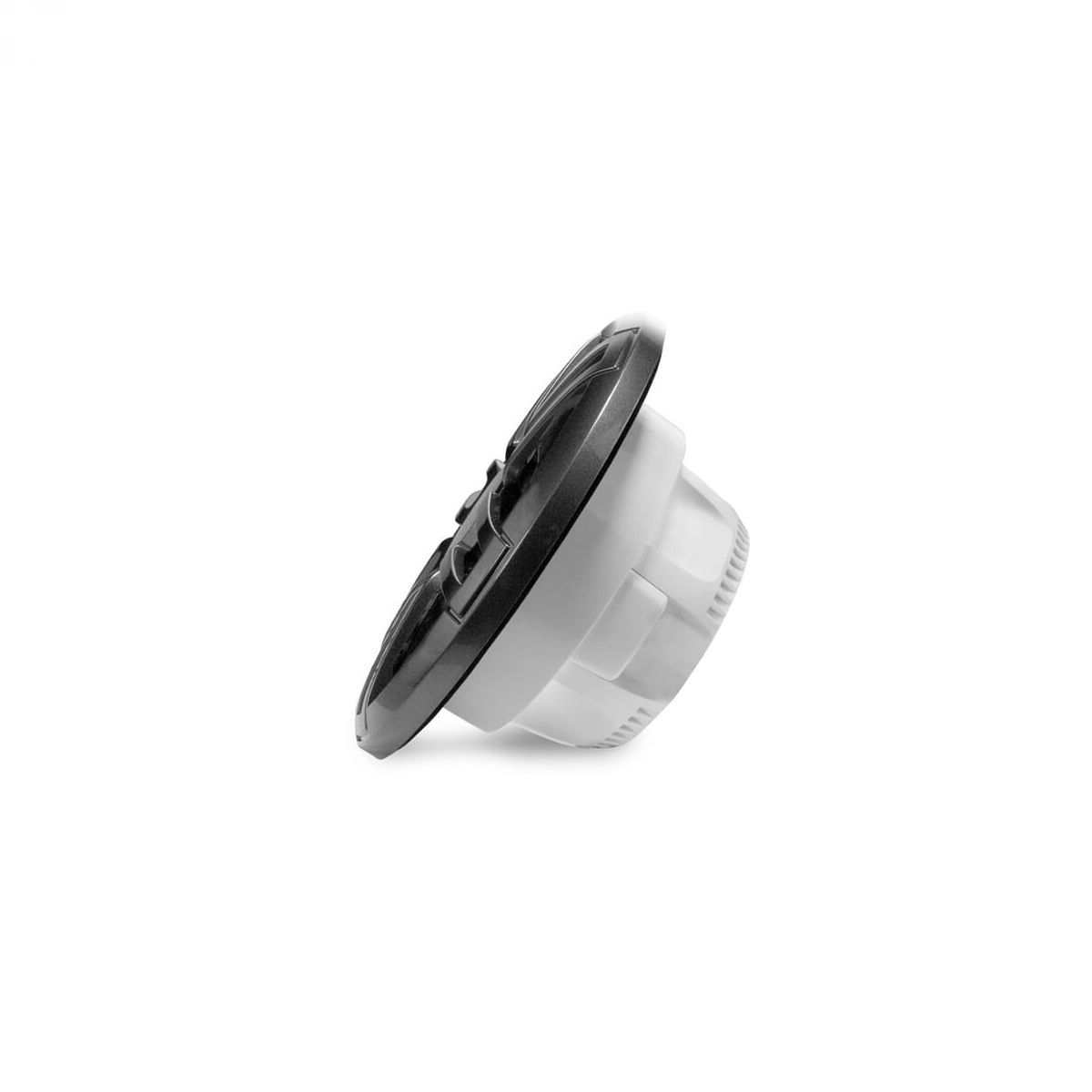

Fusion XS-F77SPGW Sports 7,7 inch marine zvučnici, par
010-02197-01
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.
SPORTS STYLE SPEAKERS

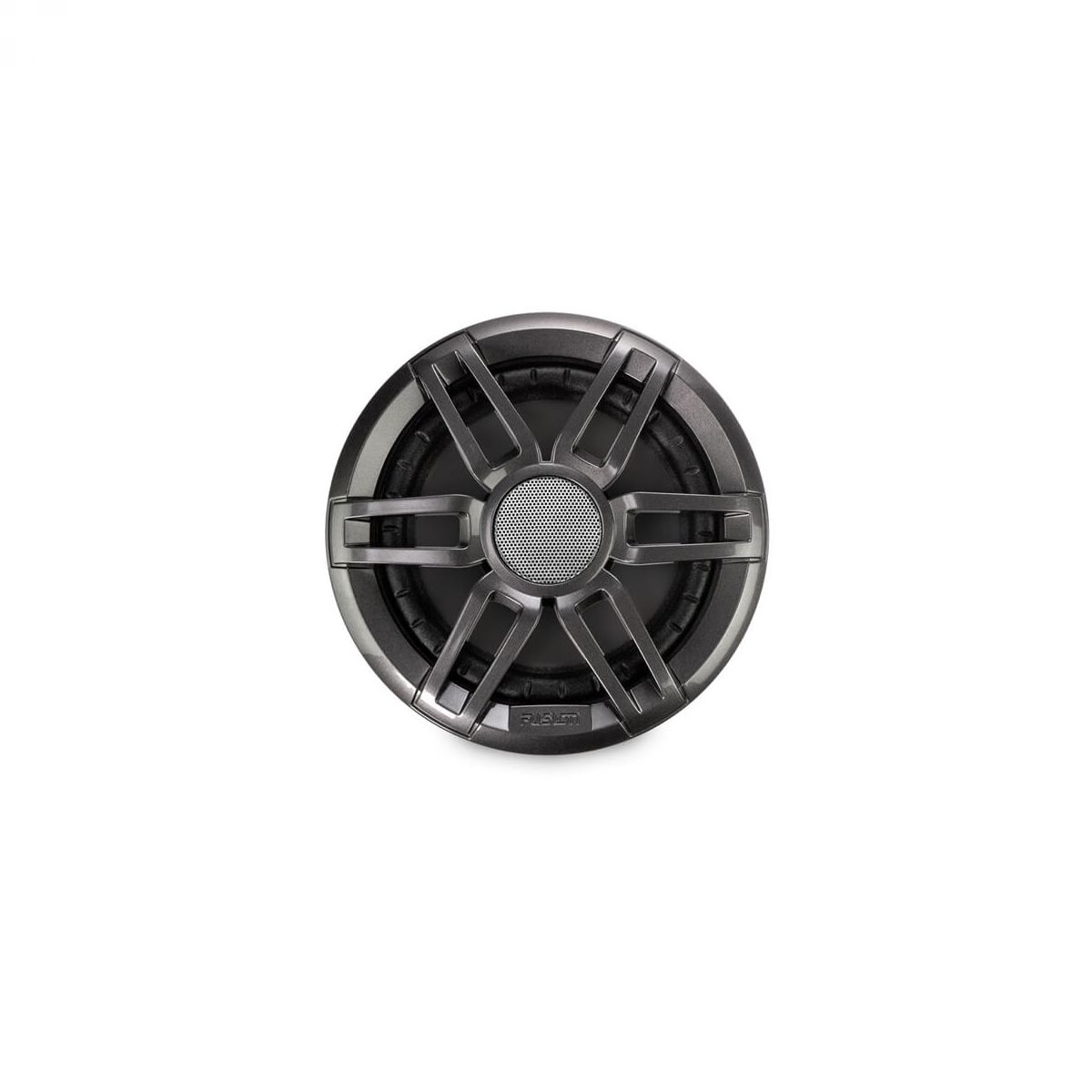

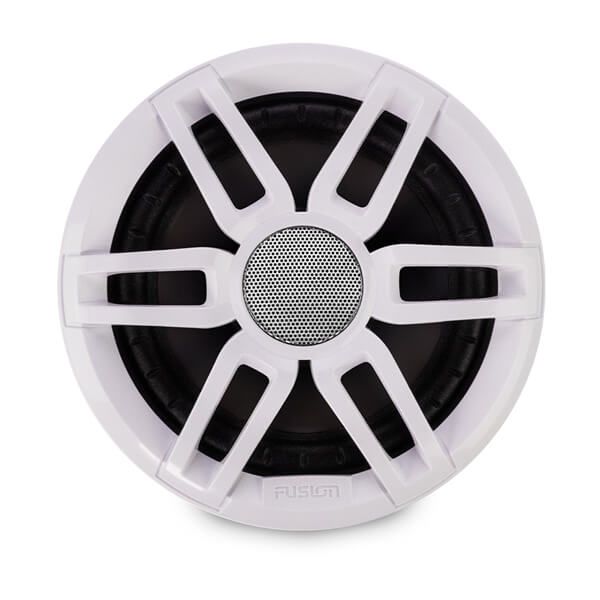

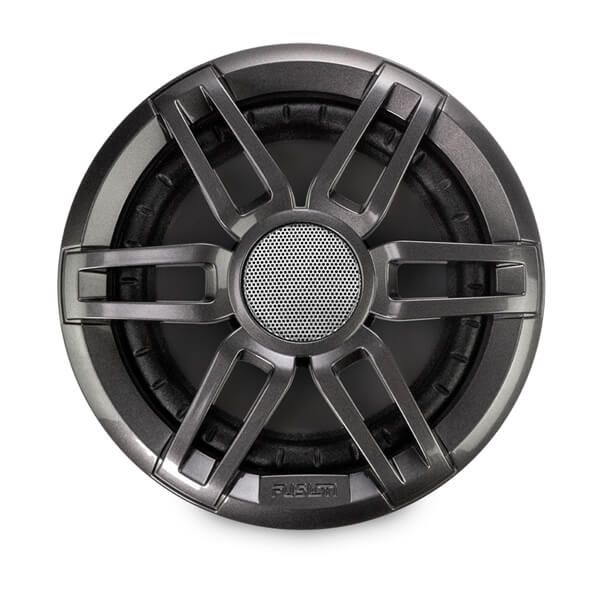

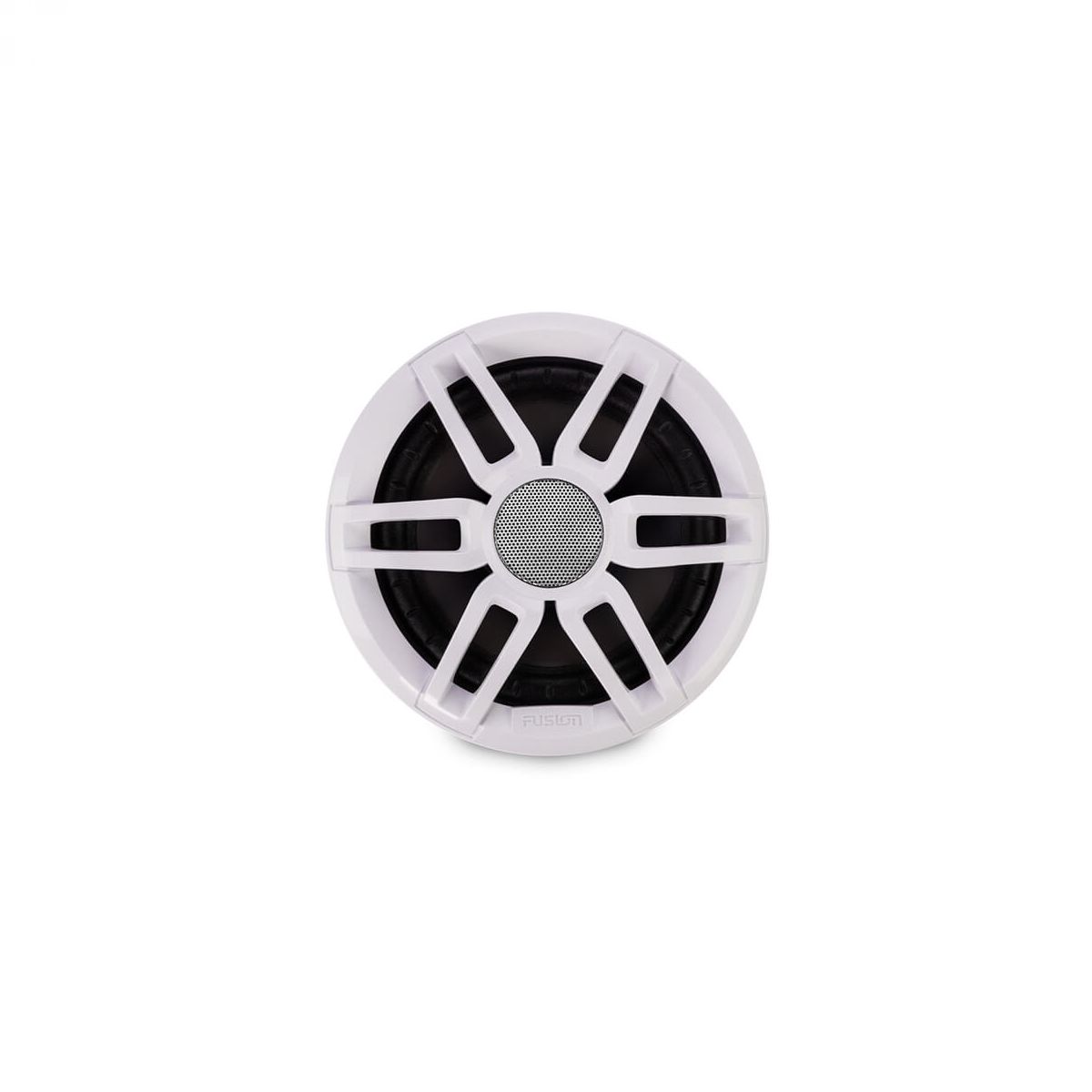

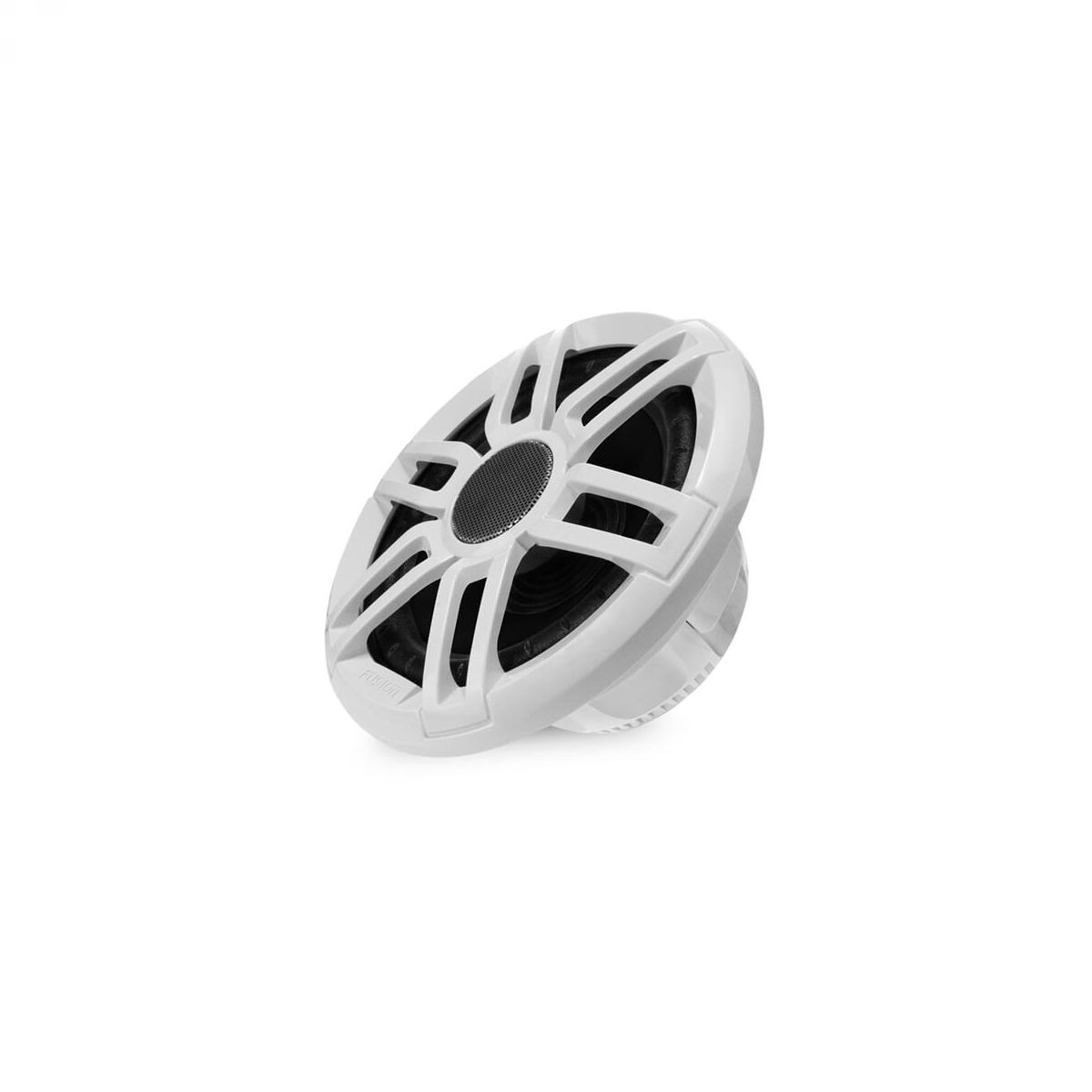

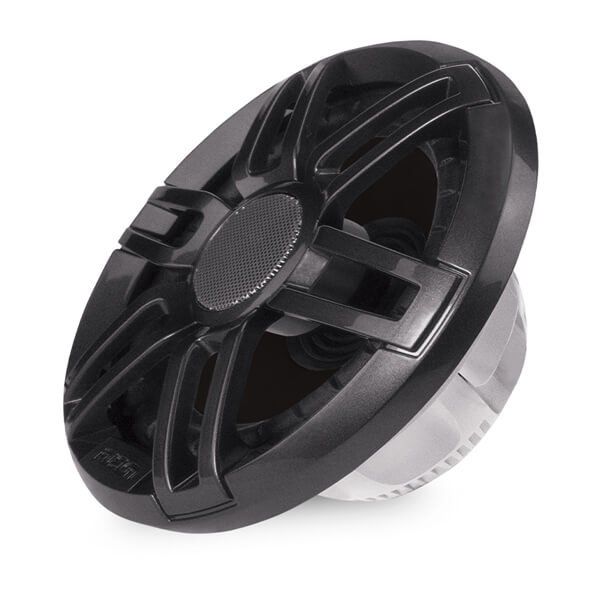

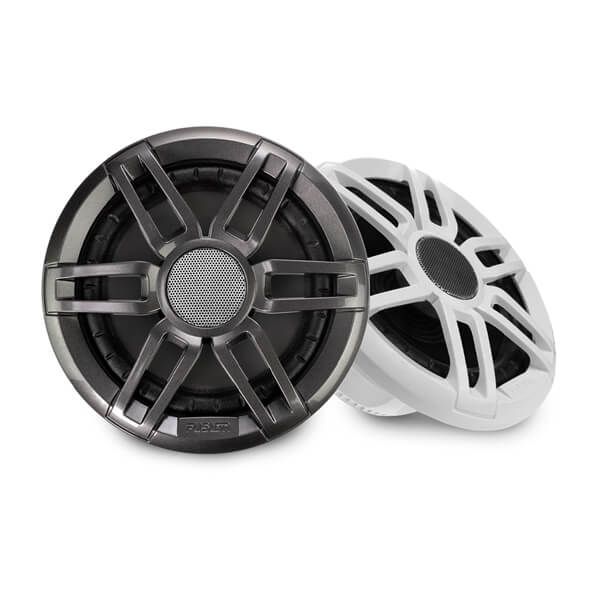

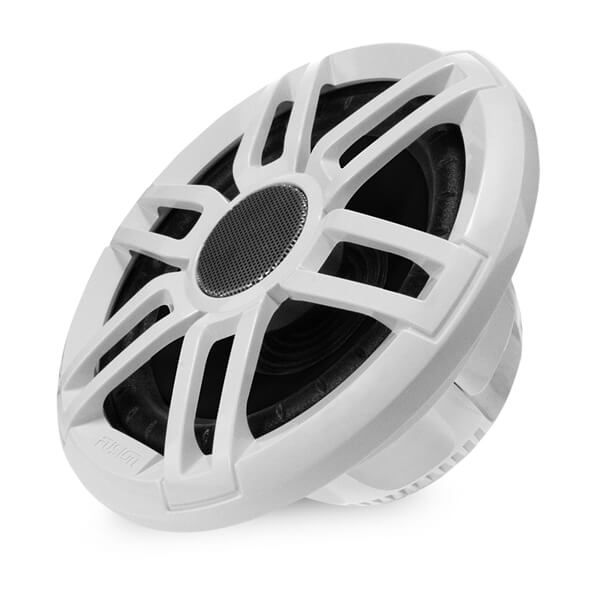

The XS Series sports style speakers are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles for an attractive modern finish.
General
|
|
| Physical dimensions (Diameter x Depth) |
7.7" Classic: 7.72" x 3.70" (196 x 94 mm)
7.7" Sports: 7.72" x 3.82" (196 x 97 mm)
6.5" Classic: 6.97" x 3.19" (177 x 81 mm)
6.5" Sports: 6.97" x 3.27" (177 x 83 mm)
4" Classic: 5.31" x 2.68" (135 x 68 mm) |
| Water and dust rating |
IP65 |
| Configuration |
Coaxial |
| Speaker size |
XS-F77CWB/XS-F77SPGW/XS-FL77SPGW: 7.7"
XS-F65CWB/XS-F65SPGW/XS-FL65SPGW: 6.5"
XS-F40CWB: 4" |
| Peak power (Watts) |
7.7" Speaker: 240 W
6.5" Speaker: 200 W
4" Speaker: 120 W |
| RMS power (Watts) |
7.7" Speaker: 60 W
6.5" Speaker: 50 W
4" Speaker: 30 W |
| Sensitivity (1 W / 1 m) |
7.7" Speaker: 92 dB
6.5" Speaker: 91 dB
4" Speaker: 87 dB |
| Frequency response |
7.7" Speaker: 70 Hz-18 kHz
6.5" Speaker: 80 Hz-18 kHz
4" Speaker: 100 Hz-18 kHz |
| Nominal impedance |
4 ohms |
| Recommended amplifier power (RMS) |
7.7" Speaker: 25-200 W/Ch
6.5" Speaker: 20-150 W/Ch
4" Speaker: 15-80 W/Ch |
| LED lighting |
yes (RGB; XS-FL77SPGW and XS-FL65SPGW only) |
| LED Supply Voltage |
10.8-16 VDC (XS-FL77SPGW and XS-FL65SPGW only) |
| LED load current @ 14.4 VDC |
150 mA (XS-FL77SPGW and XS-FL65SPGW only) |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Voice coil diameter |
7.7": 1.18"
6.5": 1.18"
4": 1" |
| Cone material |
7.7" / 6.5": Polypropylene cone with cloth surround
4": Polypropylene cone with rubber surround |
| Tweeter type |
Aluminum dome |
| Compass-safe distance |
7.7": 157.5" (400 cm)
6.5": 122" (310 cm)
4": 100.5" (255 cm) |
| Warranty |
3 years |
Mounting Dimensions
|
|
| Mounting diameter clearance |
7.7": 6.38" (162 mm)
6.5": 5.31" (135 mm)
4": 3.90" (99 mm) |
| Mounting depth clearance |
7.7": 3.03" (77 mm)
6.5": 2.64" (67 mm)
4": 2.13" (54 mm) |
Optimum Enclosure Recommendations
|
|
| Sealed enclosure volume1 |
7.7": 0.35 cubic ft (10 L)
6.5": 0.28 cubic ft (8 L)
4": 0.14 cubic ft (4 L) |
