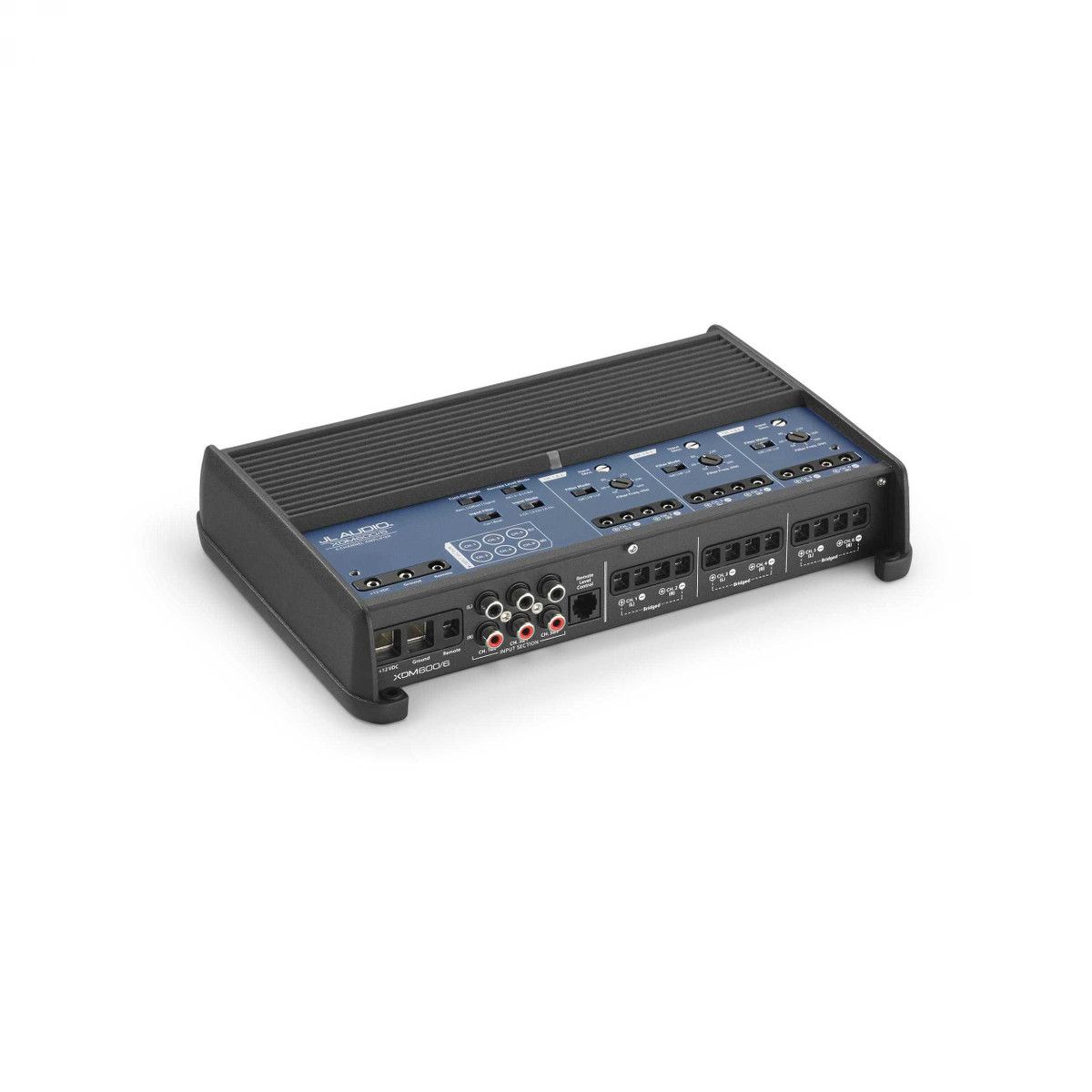

JL audio XDM600/6 marine pojačalo 12V 600W 6 kanalno
JL Audio XDM600/6 XDM serija 6-kanalno pojačalo klase D punog raspona za automobil/brod, 600 W
JL Audio XDM600/6 6-kanalno pojačalo klase D punog raspona za automobil/brod, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14,4 V
Nevjerojatno fleksibilan XDM600/6 ima ozbiljan puni raspon snage i isporučuje zapanjujućih 100 W svakom od svojih šest kanala na 2 oma (14,4 V, 1% THD). Tehnologija koja omogućuje toliku snagu u tako kompaktnom kućištu je napredni JL Audio NexD™ dizajn velike brzine prebacivanja, koji omogućuje rad klase D punog pojasa s izuzetno niskim izobličenjem i izvanrednom učinkovitošću.
Prikladan za instalacije u automobilu ili brodu, XDM600/6 izrađen je od materijala pomorske kvalitete i ima ekskluzivni ulazni filter s dva načina rada za rad bez šuma u brodovima ili automobilima. Mogućnost automatskog uključivanja (putem detekcije signala ili DC-offset detekcije) također je ugrađena za jednostavne tvorničke nadogradnje sustava.
S XDM600/6 imate mnogo sjajnih mogućnosti korištenja. Konfigurirajte ga kao šesterokanalno satelitsko pojačalo sa 75 W x 6 @ 4 Ω ili premostite četiri njegova kanala kako biste stvorili raspoređeno četverokanalno pojačalo s 200 W x 2 @ 4 Ω za prednje satelite i 75 W x 2 @ 4 Ω za stražnje satelite. Također možete pokretati dva subwoofera sa po 200 W, plus par satelita sa 75 W x 2.
XDM600/6 uključuje filter od 12 dB / oktavu za svaki kanal, koji se može konfigurirati kao niskopropusni ili visokopropusni filter i nudi kontinuirano promjenjivi odabir granične frekvencije od 50-500 Hz. Uz dodatak opcionalnog HD-RLC ili MHD-RLC (vodootpornog) daljinskog upravljača razine (svaki se prodaje zasebno), imate mogućnost podešavanja razine dva, četiri ili svih šest kanala pojačala izravno s vozačevog sjedala ili kokpita.

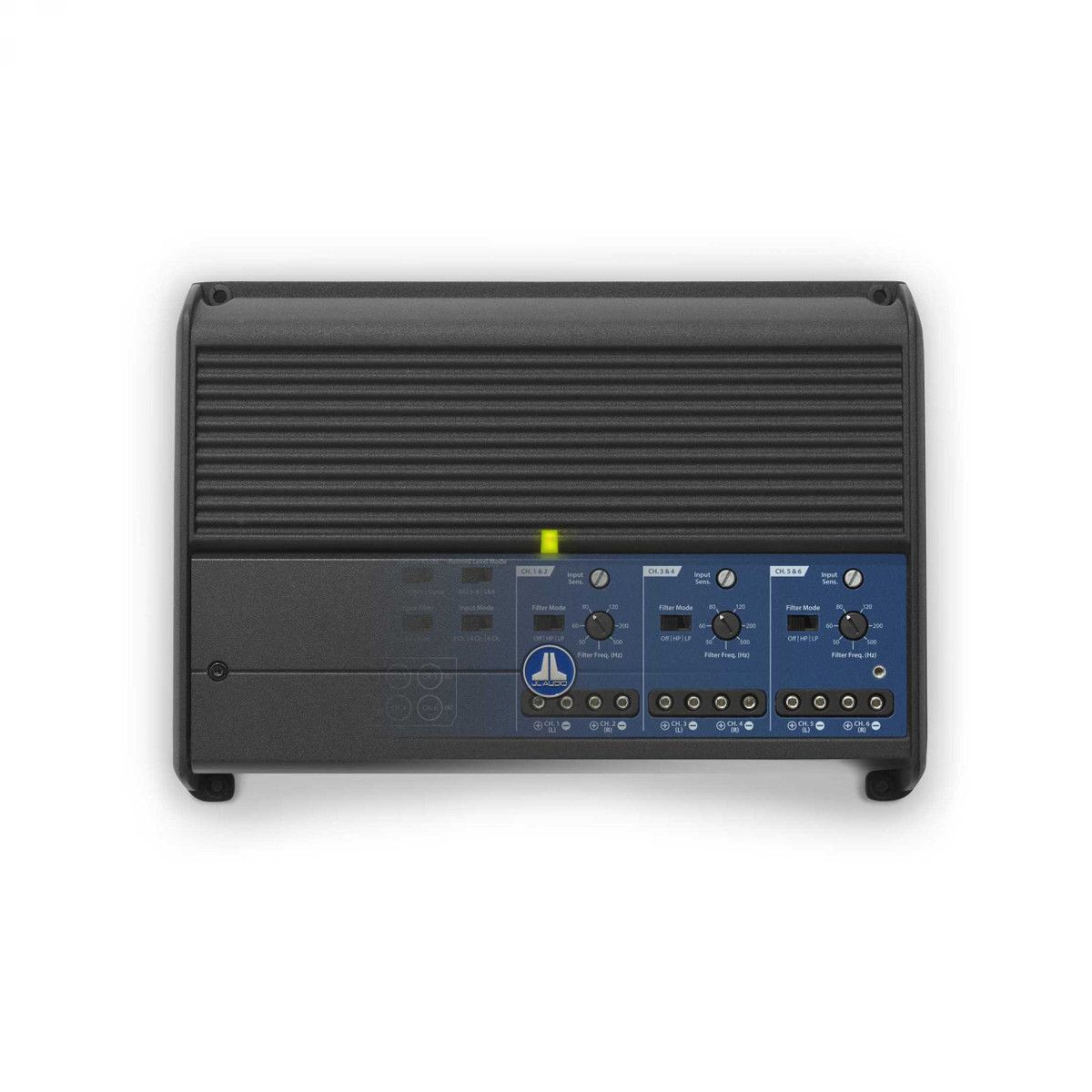

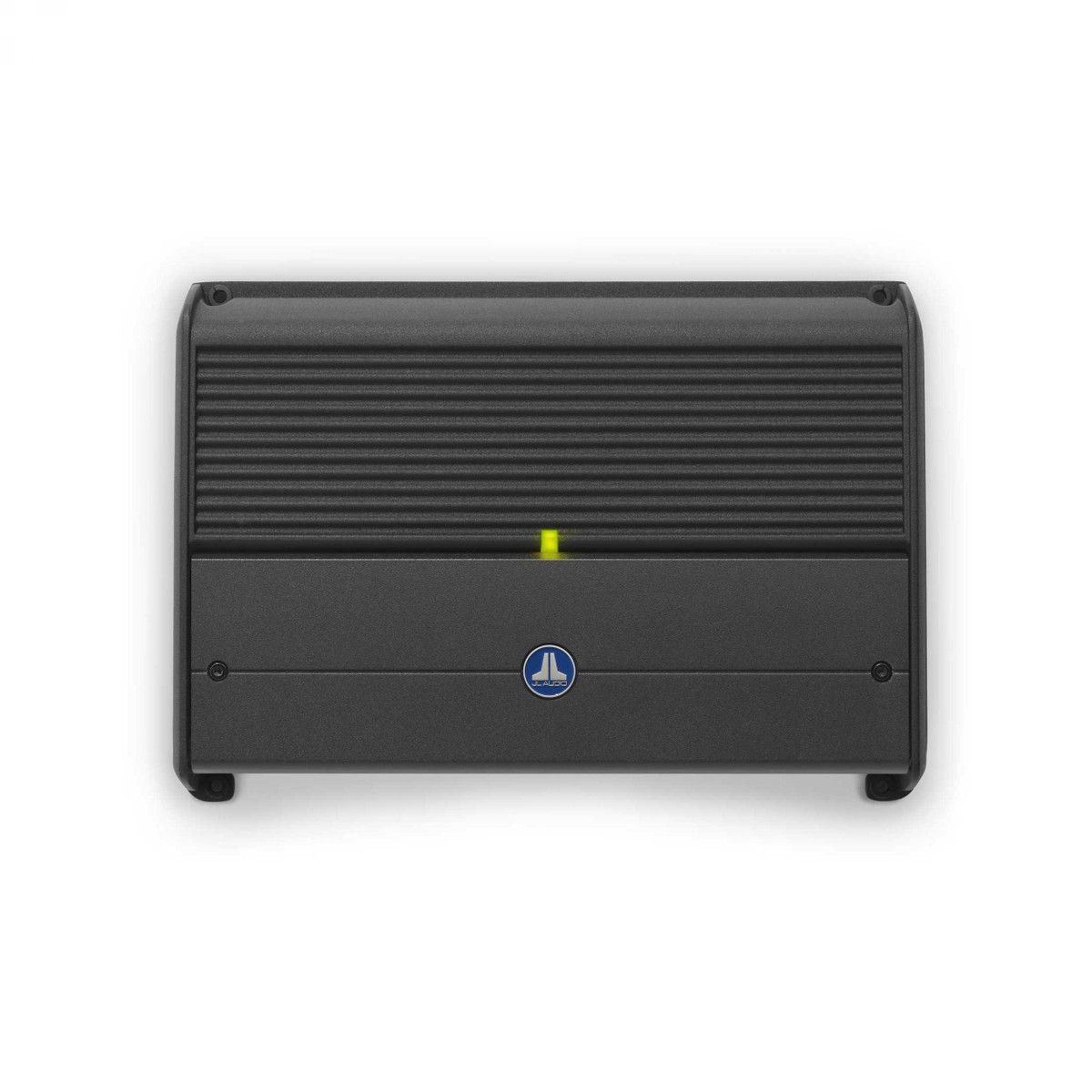

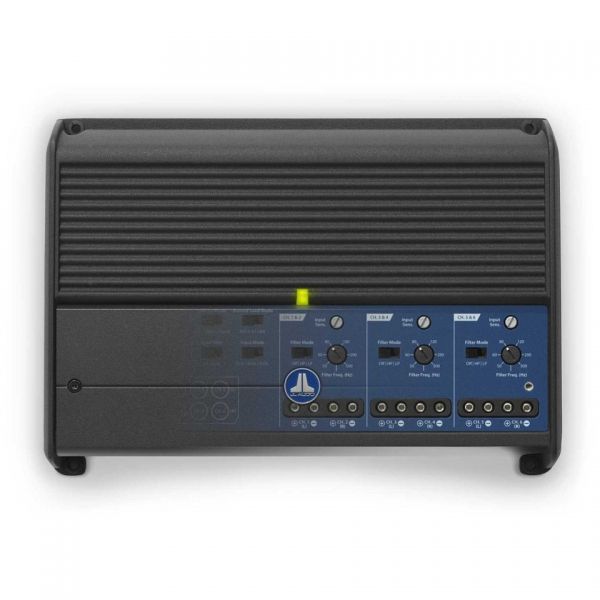

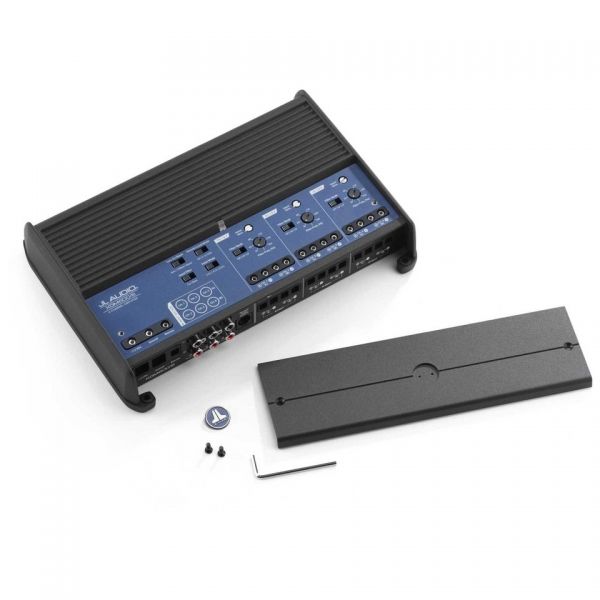

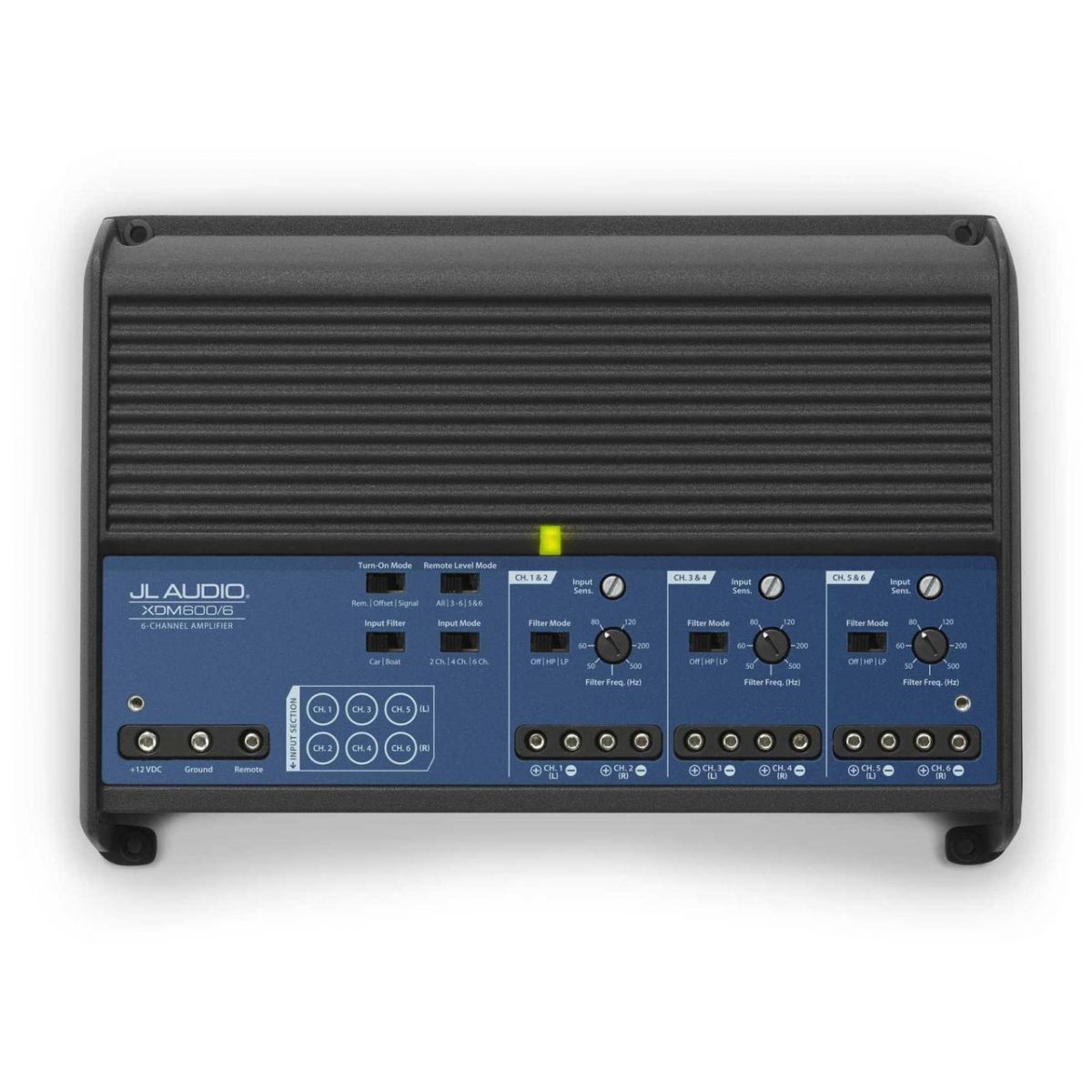

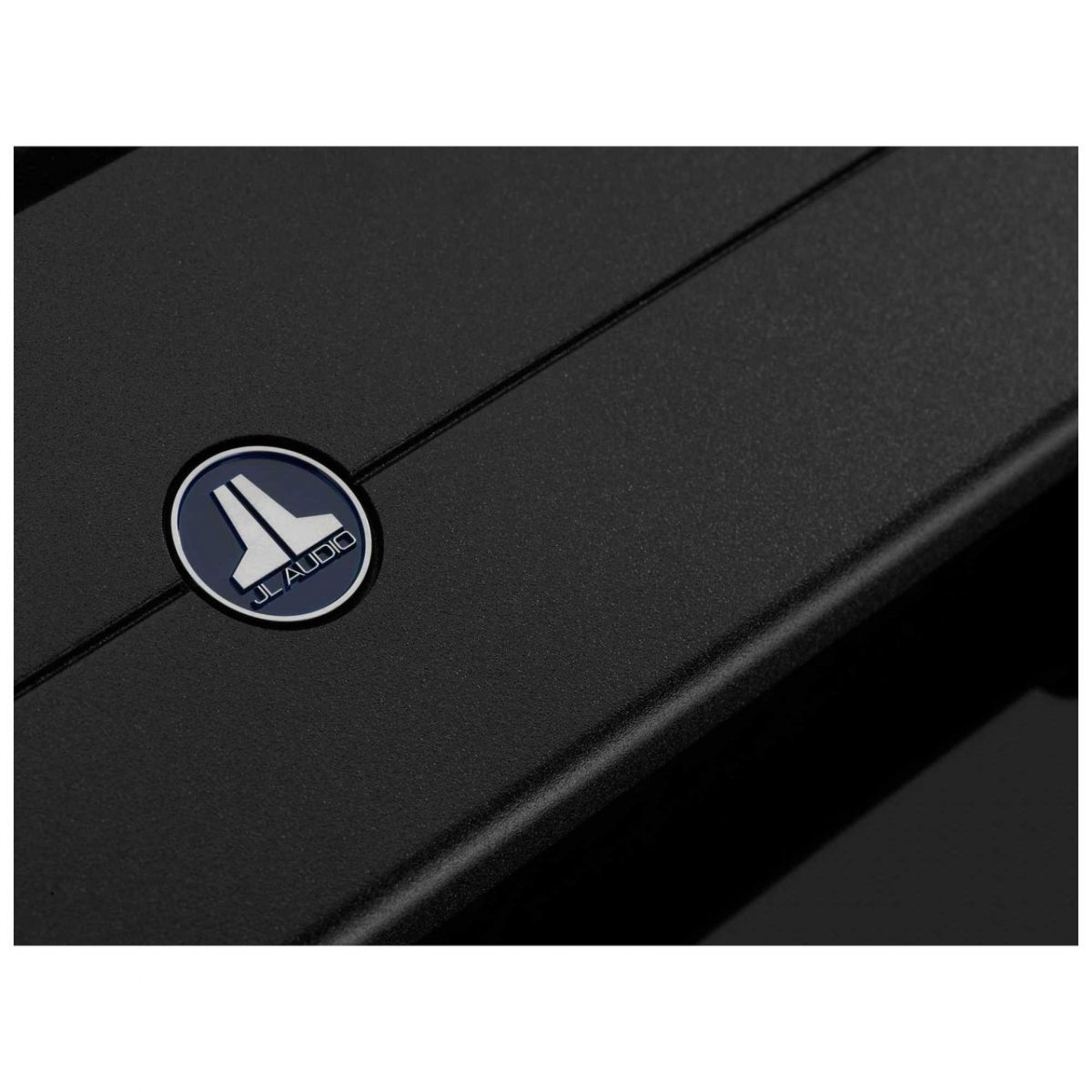

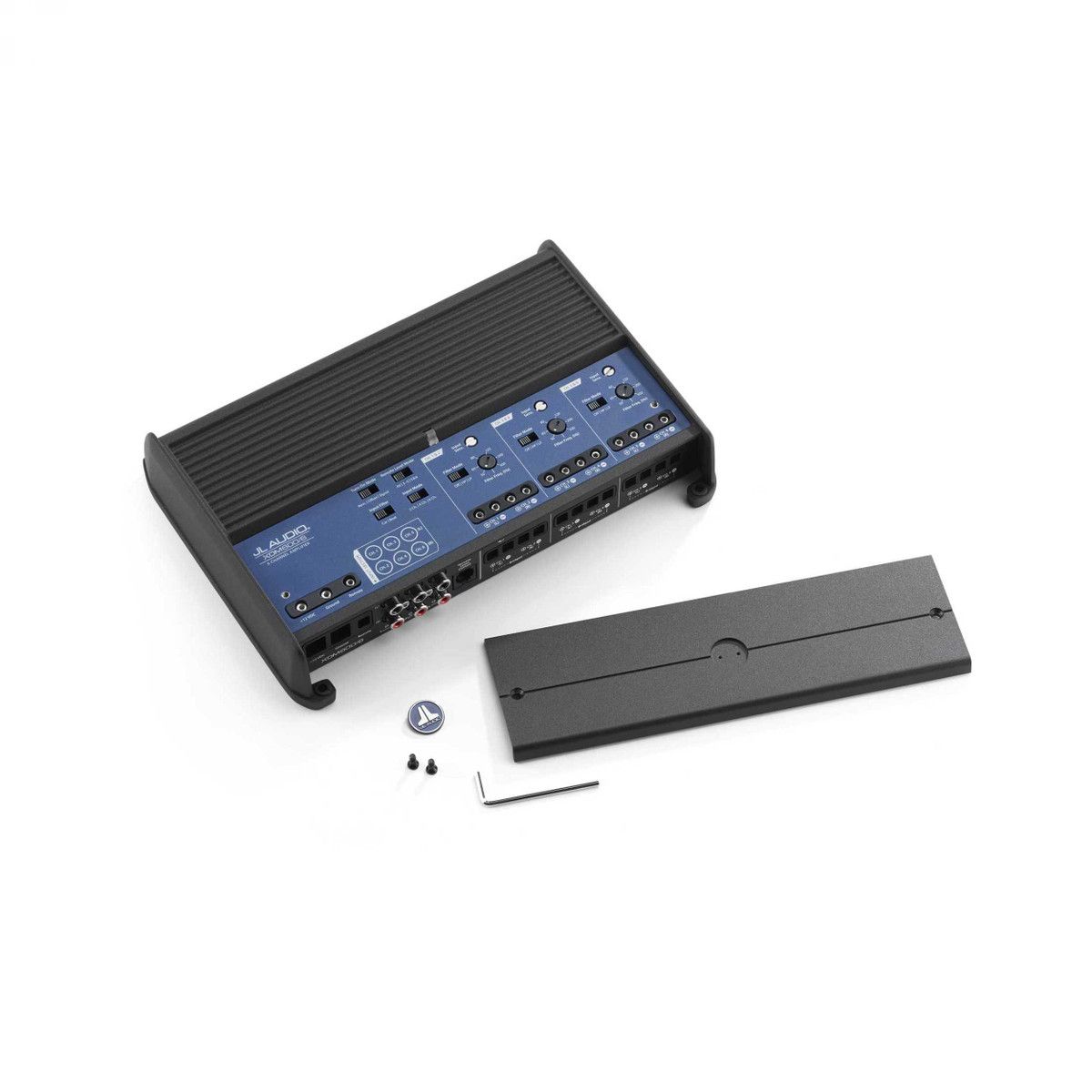

Završene u elegantnom, crnom praškastom premazu, sve kontrole su zaštićene ispod brtvenog, uklonjivog gornjeg poklopca za jednostavan pristup.
Specifikacije
Nazivna kontinuirana (RMS) snaga @ 14,4 V
@ 4 Ω 75 W RMS x 6
@ 2 Ω 100 W RMS x 6
Premošteno @ 4 Ω 200 W RMS x 3
Nazivna kontinuirana (RMS) snaga @ 12,5 V
@ 4 Ω 60 W RMS x 6
@ 2 Ω 90 W RMS x 6
Premošteno @ 4 Ω 180 W RMS x 3
Opće specifikacije
Frekvencijski odziv 12 Hz - 22 kHz (+0, -1dB)
Omjer signal-šum, odnosi se na najveću nazivnu snagu >104 dB ispod nazivne snage (A-ponderirano, 20 Hz - 20 kHz propusnost šuma)
Omjer signal-šum, odnosi se na 1 W >84 dB (A-ponderirano, 20 Hz - 20 kHz propusnost šuma)
Faktor prigušenja @ 4 Ω >150 / 50 Hz
Faktor prigušenja @ 2 Ω >75 / 50 Hz
THD+N @ Nazivna snaga <1% @ 2 Ω po kanalu.
Raspon ulaznog napona @ RCA ulaza 200 mV - 4 V RMS
Min. bakrena žica za napajanje / uzemljenje, presjek 4 AWG žice
Osigurač 50 A (AFS, AGU ili MaxiFuse™)
Obrada signala
Način(i) filtra: niskopropusni ili visokopropusni
Nagib(i) filtra 12 dB/oktava
Raspon frekvencija filtra 50 Hz - 500 Hz
Detented, kalibrirana frekvencija filtra Potenciometri Da
Funkcija isključivanja filtera Da
Daljinsko upravljanje razinom zvuka Opcionalno HD-RLC ili MHD-RLC (vodootporno)
Načini daljinskog podešavanja razine zvuka 2 ili 4 ili svi kanali
Prekidač načina rada ulaznog kanala Da (2/4/6 kanala)
Prolazni izlaz pretpojačala Nema
Odabir izvornog kanala za predizlaze N/A
Fizičke specifikacije
Visina (V) 52 mm
Širina (Š) 260 mm
Dubina (D) 180 mm
Neto težina 2,63 kg
JL audio XDM600/6 marine pojačalo 12V 600W 6 kanalno
The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is JL Audio's advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75 W x 6 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 Ω for your front satellites and 75 W x 2 @ 4 Ω for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2.
The XDM600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω |
75 W RMS x 6 |
| @ 2 Ω |
100 W RMS x 6 |
| Bridged @ 4Ω |
200 W RMS x 3 |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω |
60 W RMS x 6 |
| @ 2 Ω |
90 W RMS x 6 |
| Bridged @ 4Ω |
180 W RMS x 3 |
General Specifications
| Frequency Response |
12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>150 / 50 Hz |
| Damping Factor @ 2 Ω |
>75 / 50 Hz |
| THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs |
200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| Fuse Rating |
50 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) |
Low-Pass or High-Pass |
| Filter Slope(s) |
12 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers |
Yes |
| Filter Defeat Function |
Yes |
| Remote Level Control |
Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Level Modes |
2 or 4 or All Channels |
| Channel Input Mode Switch |
Yes (2/4/6 ch.) |
| Pass-Through Preamp Output |
None |
| Source Channel Selection for PreOuts |
N/A |
Physical Specifications
| Height (H) |
2.05 in / 52 mm |
| Width (W) |
10.23 in / 260 mm |
| Depth (D) |
7.09 in / 180 mm |
| Net Weight |
5.8 lb / 2.63 kg
|
