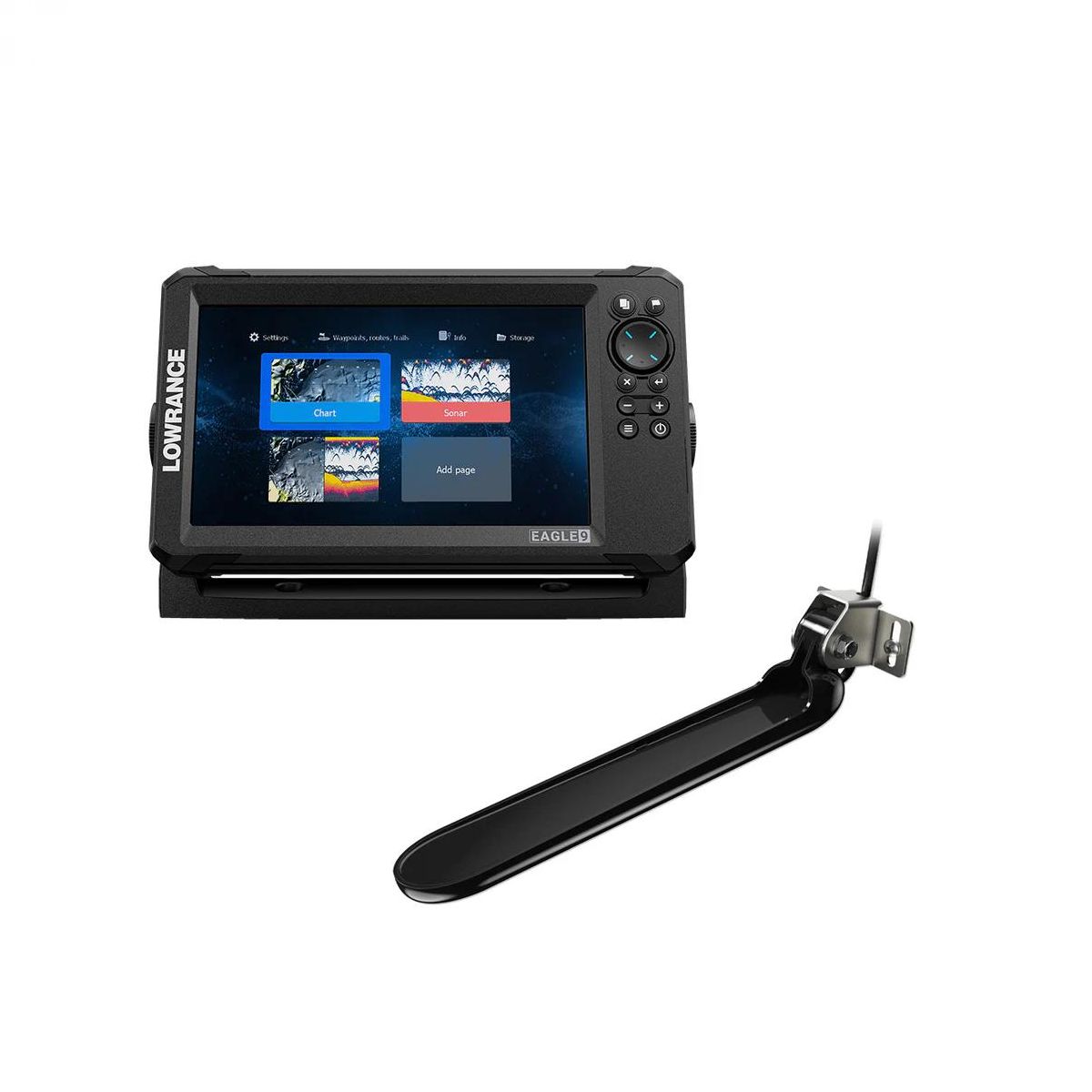

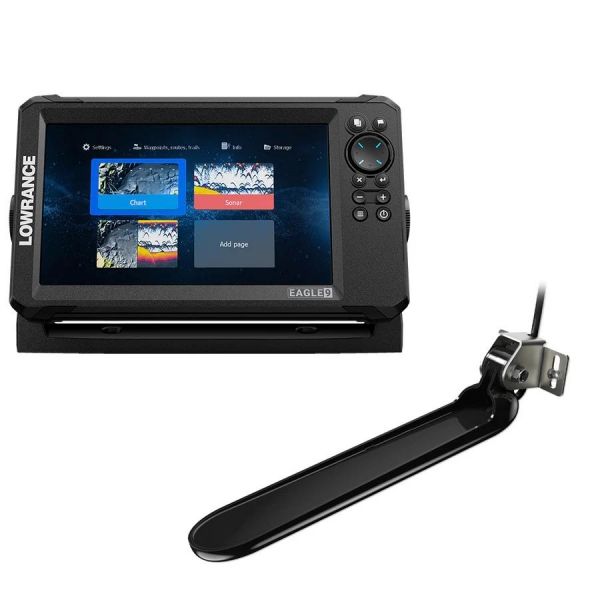

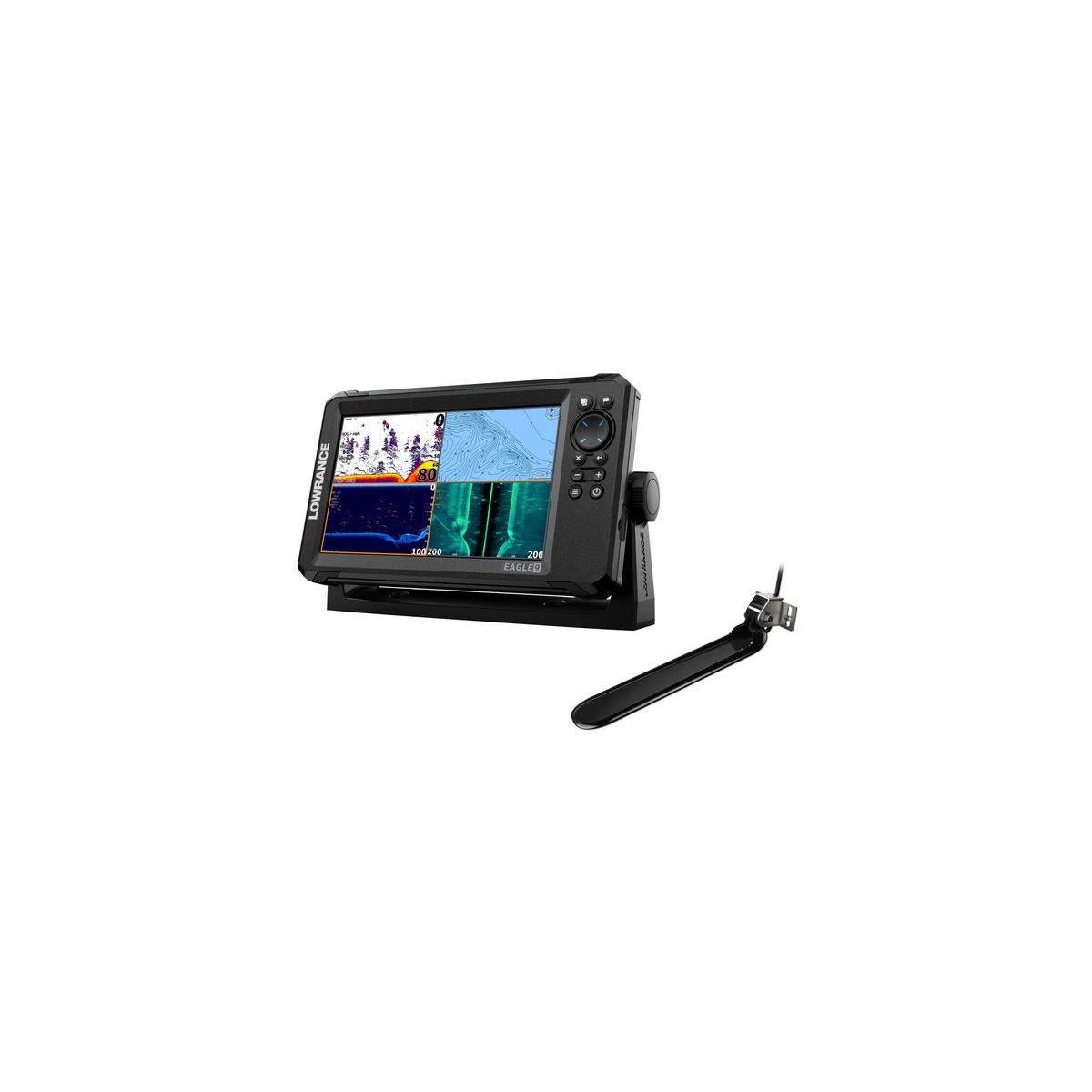

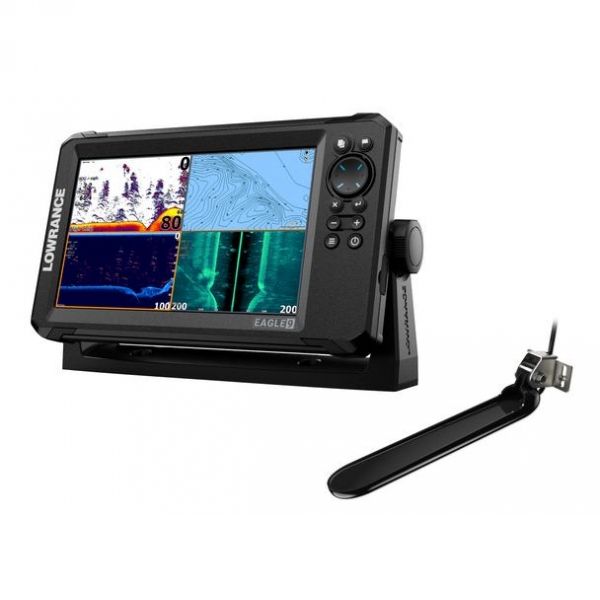

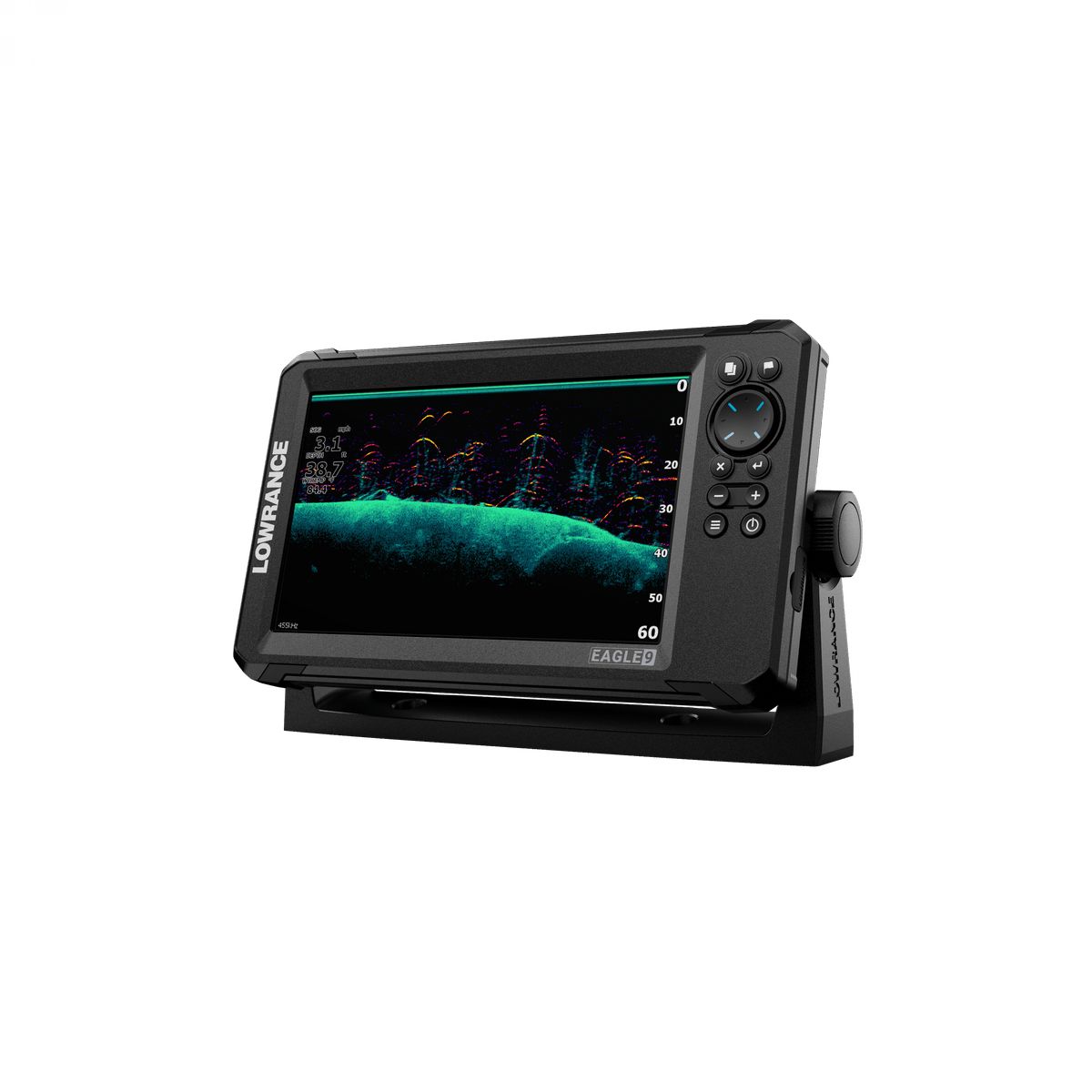

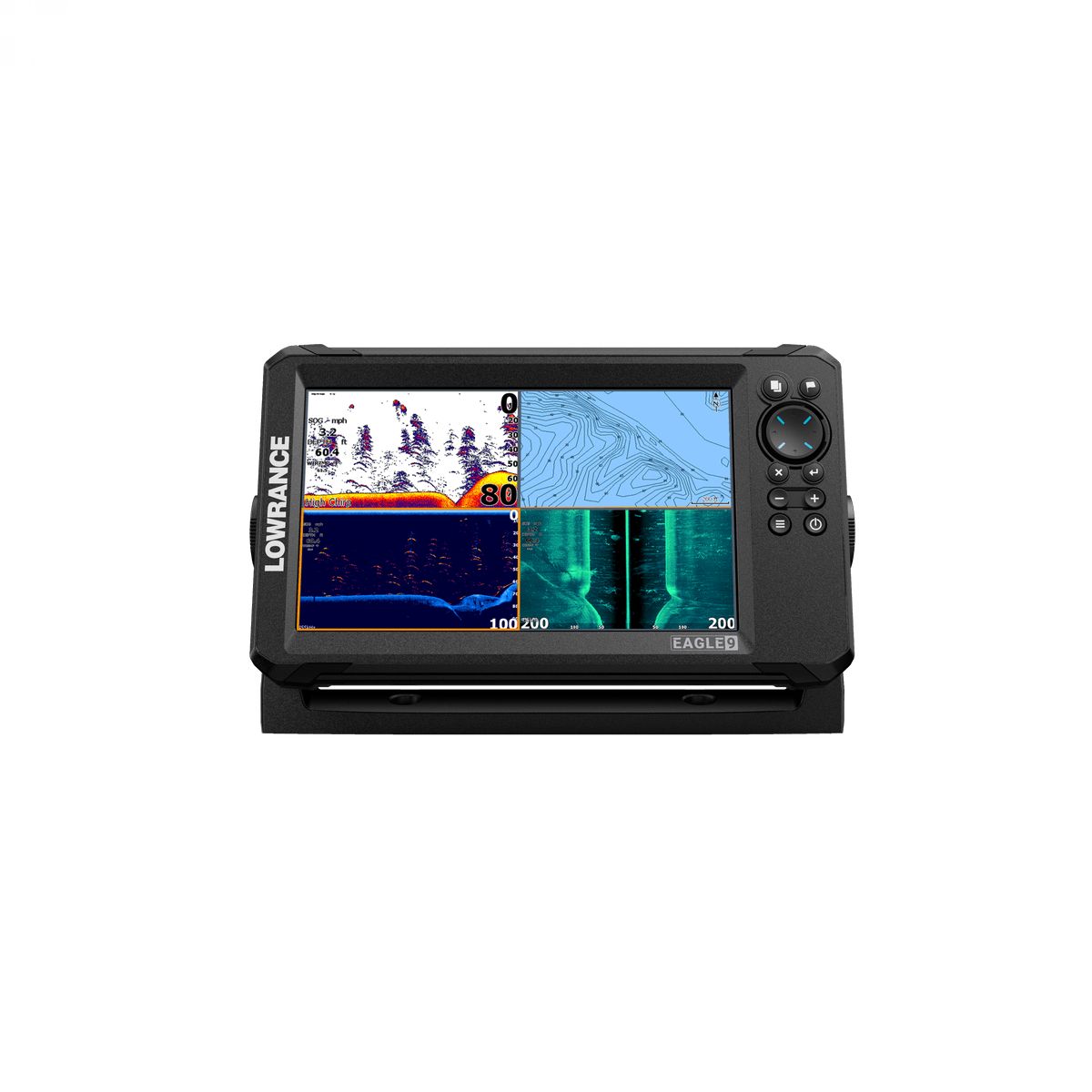

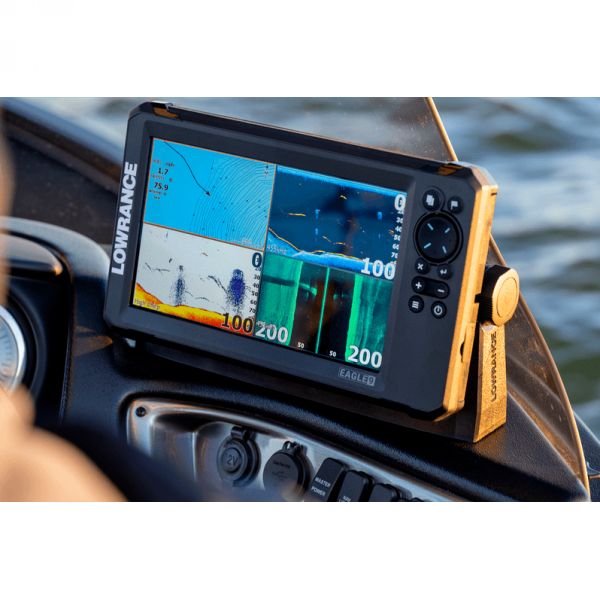

Lowrance EAGLE 9 sa TripleShot sondom

000-16127-001
9" GPS Fishfinder
CHIRP sonar
2D, DownScan, TripleShot
sa sondom TripleShot
Jednostavan sonar s automatskim podešavanjem

CIJENA:

REDOVNA CIJENA:	874,00 € 6585,15 kn
WEBSHOP CIJENA:	786,60 € 5926,64 kn

Šifra proizvoda: 000-16127-001

Komada

Trenutno nedostupno

Pošaljite upit Košarica

Lowrance EAGLE 9 sa TripleShot sondom

Part Number: 000-16127-001

Eagle-9 TripleShot™ ROW:
9" IPS zaslon, TripleShot™ HD sonda, svjetska osnovna karta. (Opcija nadogradnje na CMAP® DISCOVER™ karte)

Glavne značajke:

Poboljšana TripleShot™ HD sonda sa sonarom za automatsko podešavanje
Osnovna karta svijeta
IPS zaslon, vidljiv iz svih kutova, čak i u polariziranim naočalama
Novi pouzdani sustav konektora za jednostavnu ugradnju u bilo koji čamac ili kajak
Utor za SD karticu za ažuriranje softvera, Genesis Live snimanje i dodatke za grafikone.
Pogledajte ribu koja se skriva u zaklonu uz način FishReveal™
Povećajte kontrast i vidljivost s potpuno novim Imaging paletama boja

Eagle® je rođen kako bi ribolov učinio što jednostavnijim i ugodnijim. Jednostavan za korištenje i brz za instalaciju, ovaj model ima novo dizajniranu TripleShot™ HD sondu s tehnologijom FishReveal i automatskim podešavanjem za brzo i optimalno postavljanje. Novi IPS zaslon pruža veću rezoluciju i vidljivost iz svih kutova. Ovaj model dolazi s unaprijed instaliranom kartom svjetske osnovne karte i mogućnošću nadogradnje na CMAP® DISCOVER™.

Pregled
SONAR JEDNOSTAVAN ZA KORIŠTENJE

TripleShot™ HD. Pružite si najbolje šanse za pronalaženje ribe s podvodnim pogledom sa strane i ispod broda, sve u jednoj sondi. TripleShot HD ima mogućnost pronalaženja ribe širokokutnog visokog CHIRP sonara i slike visoke razlučivosti strukture u kojoj se drži riba od SideScan i DownScan Imaging™.
FishReveal™. Uklonite nagađanje u identifikaciji riba uz FishReveal, kombinirajući DownScan s CHIRP-om za neusporedivo odvajanje i identifikaciju meta.
Sonar za automatsko podešavanje. Jednostavan sonar s automatskim podešavanjem daje vam optimalne postavke od samog početka tako da ne morate trošiti vrijeme pokušavajući ih sami pronaći.

DETALJNI CRTAŽI

BAZNA KARTA SVIJETA. S unaprijed učitanom baznom kartom svijeta imate mogućnosti nadogradnje na CMAP® DISCOVER™ ili druge pružatelje karata. S Eagleom imate opcije koje su vam potrebne da otkrijete i navigirate do najboljih mjesta za ribolov, kako želite.
NADOGRADITE NA C-MAP DISCOVER. Sve što trebate da maksimalno iskoristite svoje vrijeme na vodi uz široku pokrivenost kopnenih i obalnih područja u vrlo detaljnim i preciznim kartama. Gledajte stvari na svoj način uz C-MAP®.

DIZAJNIRAN ZA RIBOLOV

IPS ZASLONI. Vidite jasno gdje god idete s novim IPS zaslonom, koji nudi poboljšanu razlučivost, jasnoću i vidljivost, čak i s polariziranim sunčanim naočalama na izravnoj sunčevoj svjetlosti.
NOVI SUSTAV KONEKTORA. Postavite u trenu s našim poboljšanim konektorom koji se zaključava, obećavajući jednostavnu i pouzdanu instalaciju i uklanjanje svaki put.
Naš prioritet je pružiti vam proizvode vrhunske kvalitete i vrijeme na vodi bez stresa. Uživajte u osjećaju ribolova bezbrižno zahvaljujući našem dvogodišnjem jamstvu.

Lowrance EAGLE 9 sa TripleShot sondom

Part Number: 000-16127-001

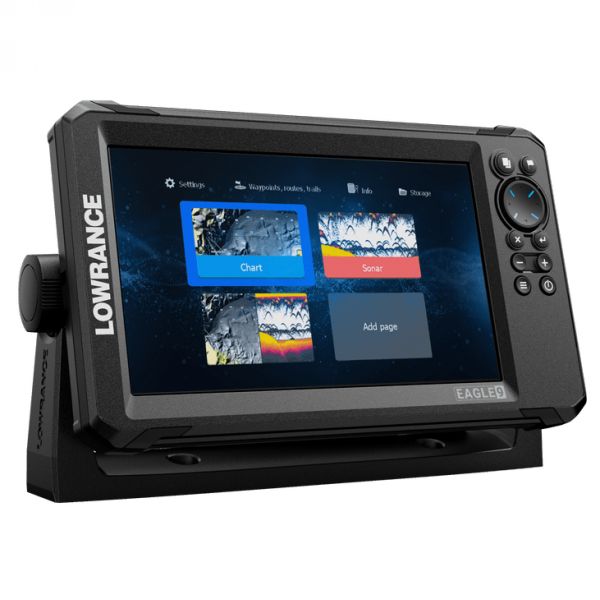

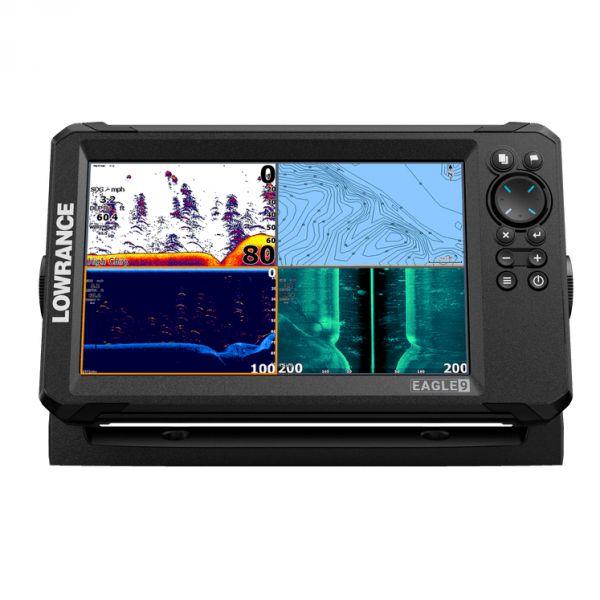

Display

Size	9" (228 mm)
Resolution	1024x600
Type	IPS
Antifog	Bonded LCD
Viewing angles	85° all
Backlight	LED

Networking

SD Card Storage

Micro SD Card(32 gb Max)

Power

Local Supply	12 VDC
Consumption local supply	650mA, 230mA at 12VDC (backlight full/off)
Recommended Fuse Rating	5A

Interface

Keypad:9-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages

GPS

Correction	SBAS
Time to first fix	45 s
GPS	GPS / SBAS

Enviroment

Humidity	66C a 95% por 48hrs
Temperature operation	"-15°C to +55°C (5° F to 131° F)
Temperature storage	"-20°C to +60°C (4°F to 140°F)
Protection	IPX7 with card door closed

Mechanical

Weight	0.90 kg (lb)

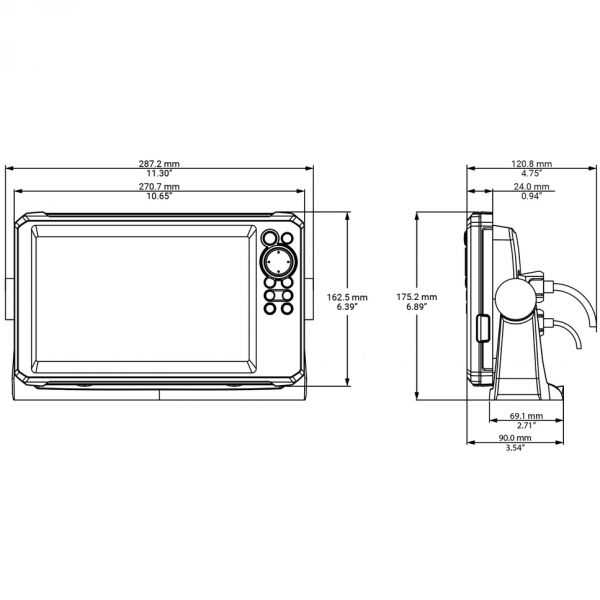

Size	274mm(11") x 162mm(7")

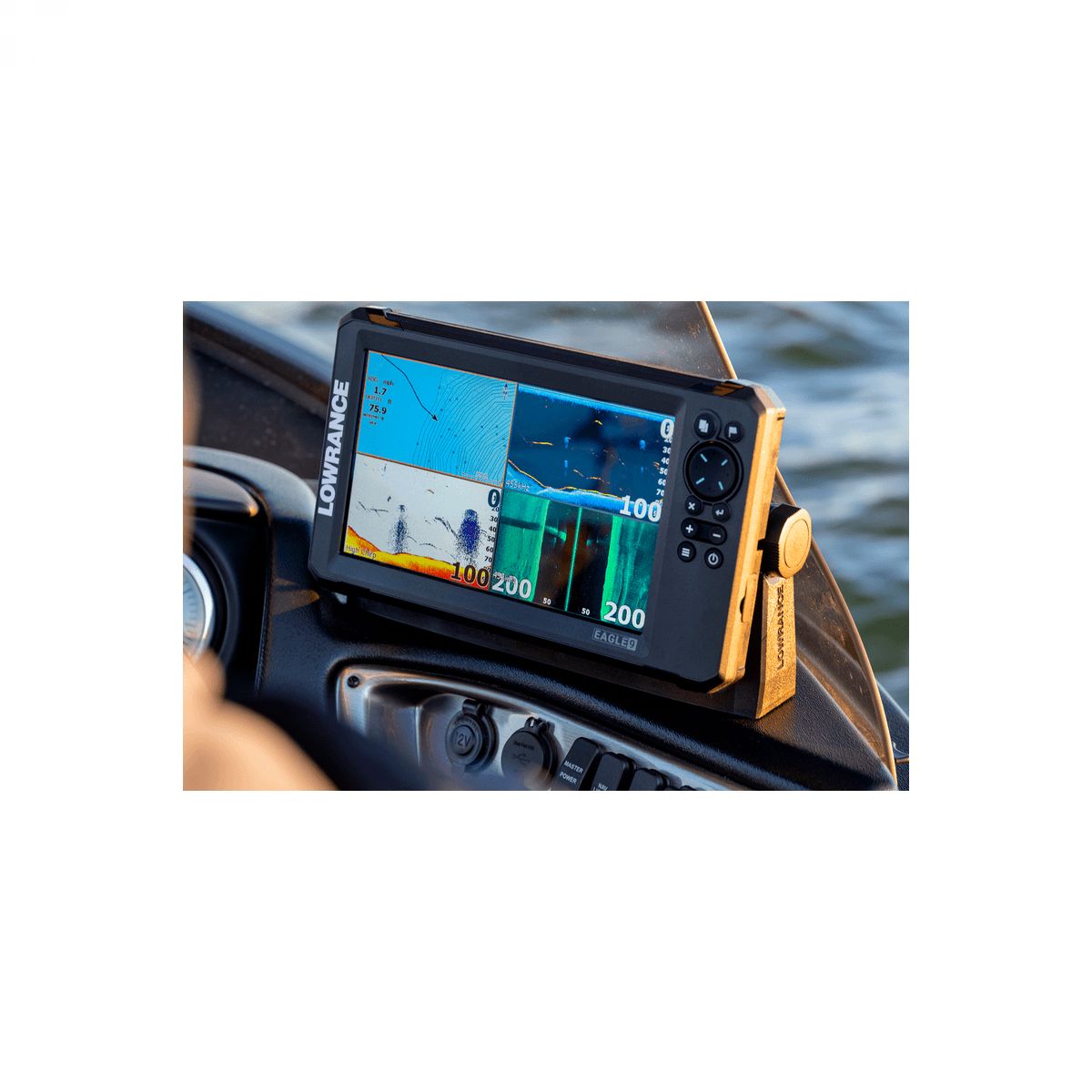

Mounting	Panel mount or bracket
Material	CYCOLOY C1200HF (PC & ABS BLEND)
Color	Black

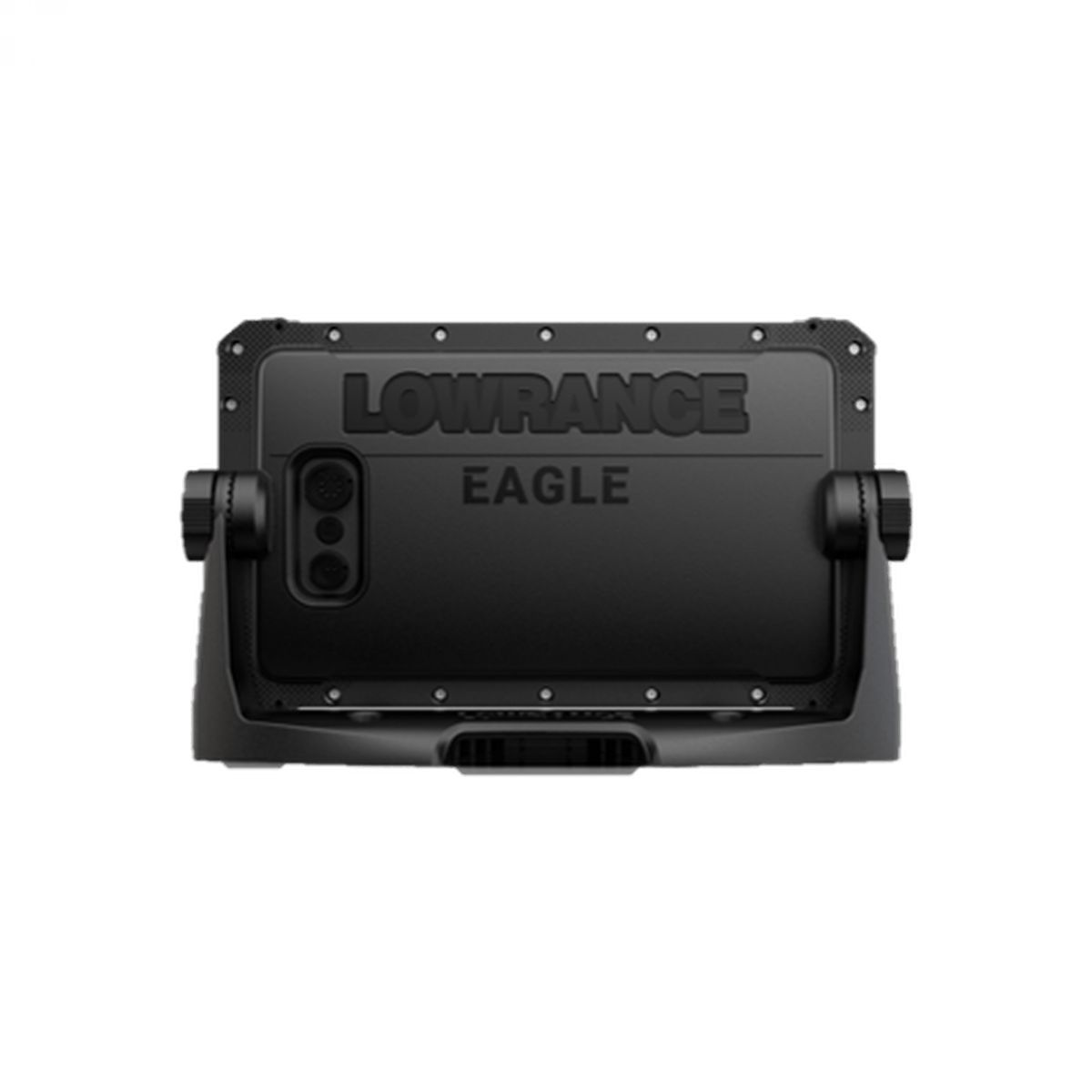

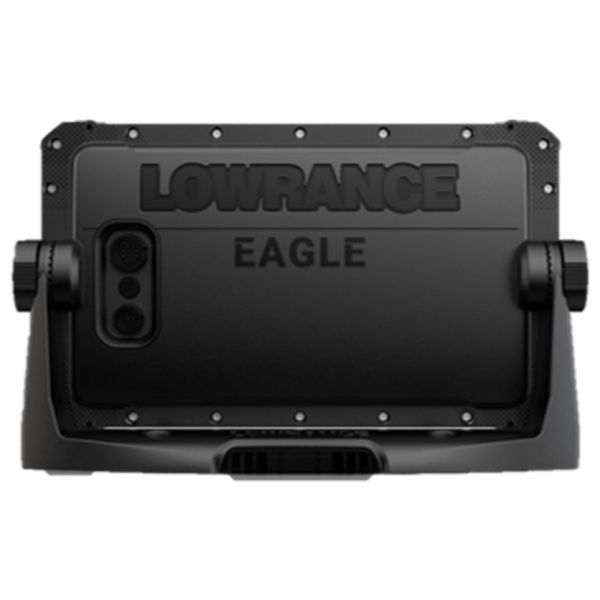

Cable Inlet	1 - 2 pin pwr conn / 1 - 8 pin sonar connector

Lowrance EAGLE 9 sa TripleShot sondom

Part Number: 000-16127-001

Eagle-9 TripleShot™ ROW:
9" IPS screen, TripleShot™ HD transducer, Worldwide basemap chart. (Option to upgrade to CMAP® DISCOVER™ charts)

Key Features:

Enhanced TripleShot™ HD Transducer with Autotuning sonar
Worldwide Basemap
IPS screen, viewable from all angles, even in polarized glasses
New reliable twist-lock connector system for easy installation in any boat or kayak
SD card slot for software updates, Genesis Live recording and charting add-ons.
See fish hiding in cover with FishReveal™ mode
Increase contrast and viewability with all-new Imaging color palettes

Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.

Overview
EASY TO USE SONAR

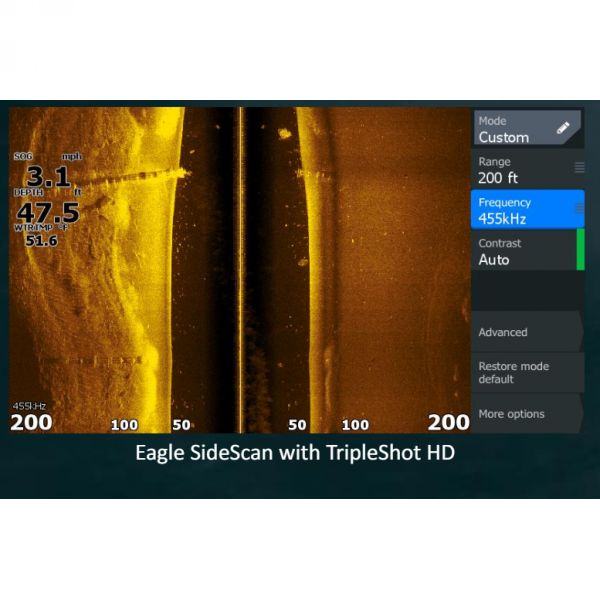

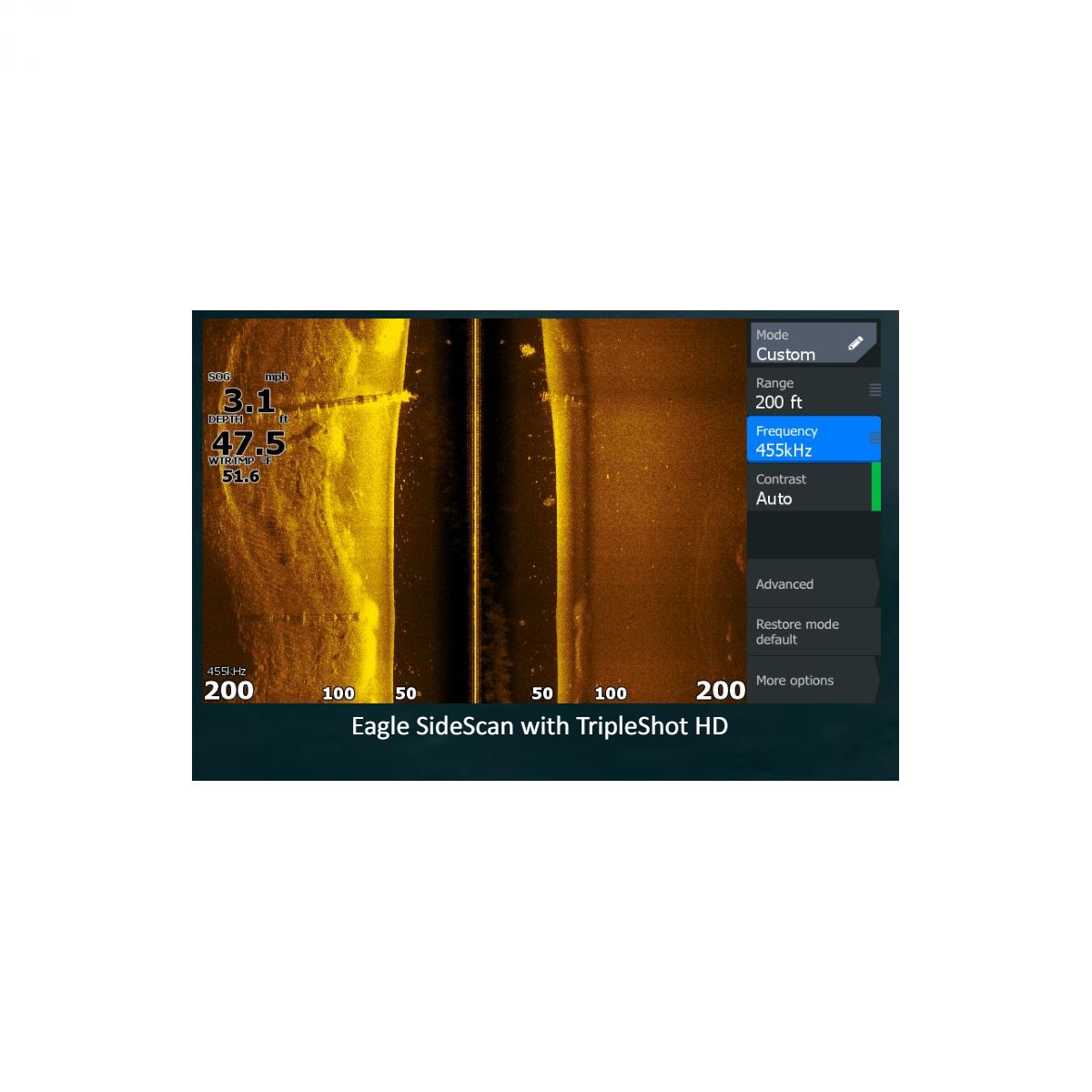

TripleShot™ HD. Give yourself the best chance of finding fish with underwater views to the side and below the boat, all in one transducer. TripleShot HD features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.
FishReveal™. Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar. Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

DETAILED CHARTING

WORLDWIDE BASEMAP. Pre-loaded with worldwide basemap you have the options to upgrade to CMAP® DISCOVER™or other charting providers. With Eagle, you have the options you need to discover and navigate to the best fishing spots, how you want to.
UPGRADE TO C-MAP DISCOVER. All you need to make the most of your time on the water with wide coverage of inland and coastal areas in highly detailed and accurate charts. See things your way with C-MAP®.

DESIGNED FOR FISHING

IPS SCREENS. See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
NEW CONNECTOR SYSTEM. Set up in an instant with our improved twist-locking connector, promising an easy and reliable installation and removal every time.
Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our two-year warranty guarantee.

Lowrance EAGLE 9 sa TripleShot sondom

Part Number: 000-16127-001

COMES WITH
