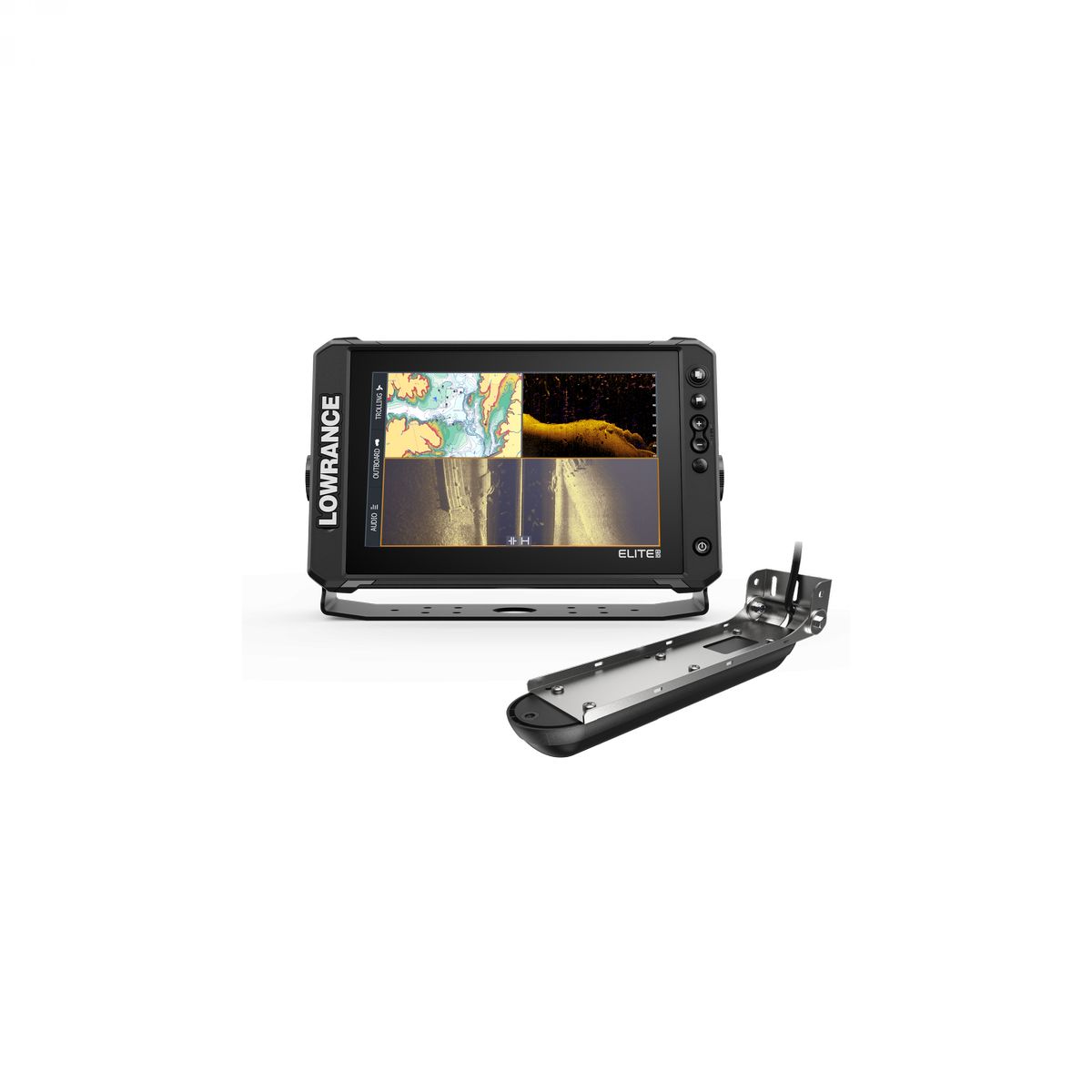

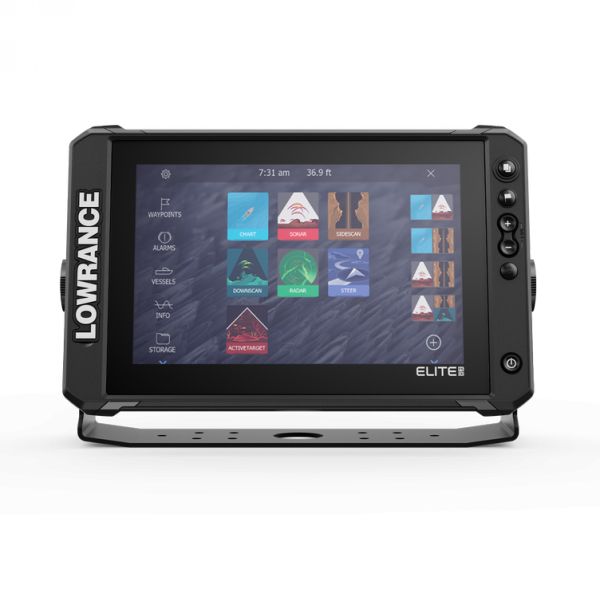

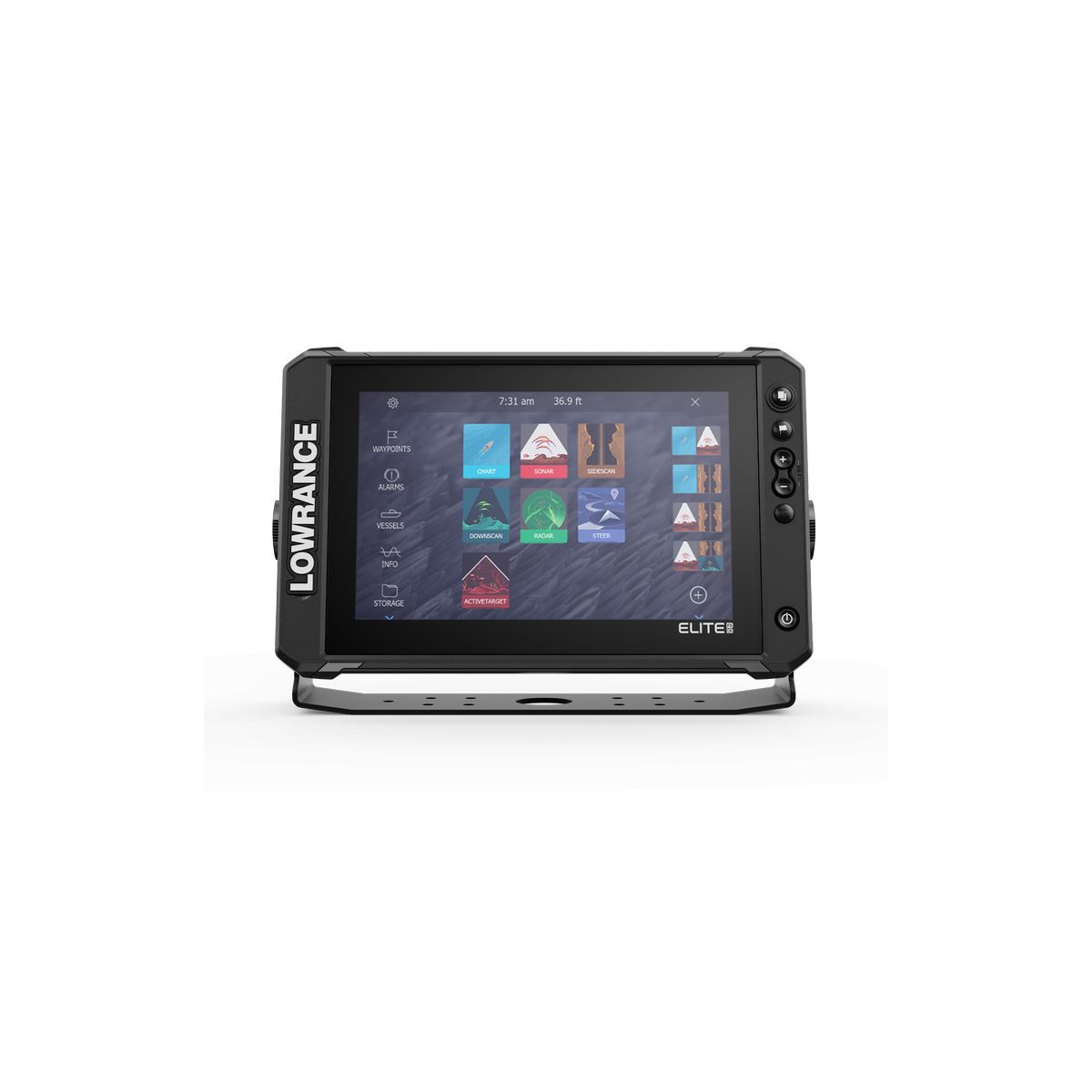

Lowrance Elite 10 FS sa Active Imaging 3-in-1 sondom
Part Number: 000-16438-001
Elite™ FS 10 s Active Imaging 3-u-1 sondom (ROW): Elite™ Fishing System (FS) daje vam pristup punoj liniji Lowrance alata za traženje ribe – uključujući ActiveTarget™ 2 sonar uživo, Active Imaging™ i Active Imaging™ HD* i unaprijed učitane karte C-MAP® Discover Onboard – koje će vam pomoći da najbolje iskoristite svoje vrijeme na vodi. *Active Imaging HD zahtijeva S3100 modul
Ključne značajke
- ActiveTarget™ 2 Live Sonar spreman
- Spreman za Active Imaging 3-u-1
- Active Imaging HD 3-u-1 spreman sa S3100 sonarnim modulom
- FishReveal™
- Unaprijed učitani C-MAP Enhanced Embedded, plus mogućnosti mapiranja uključujući C-MAP, Navionics® i više C-MAP® Easy Routing, Navionics® Autorouting™ mogućnost
- C-MAP Genesis Live kartiranje na zaslonu
- Višedodirni zaslon visoke rezolucije osjetljiv na dodir
- Integrirano bežično, NMEA 2000® i Ethernet povezivanje
- Potpuno upravljanje zaslonom osjetljivim na dodir nad Recon™ i Ghost® Trolling Motorom, kao i Power Pole® sidrima
Elite Fishing System (FS) kombinira snagu Lowrance provjerenih i najnovijih alata za traženje ribe s pristupačnijim zaslonom koji je lakši za korištenje i instalaciju. Od ActiveTarget™ 2 sonara uživo i Active Imaging™ i Active Imaging™ HD* ekstremne visoke razlučivosti s Lowrance CHIRP sonar, SideScan i DownScan Imaging™ do unaprijed učitanog C-MAP® Otkrijte ugrađene ribolovne karte, Elite FS vam daje sve alate koji su vam potrebni da pronađete i ulovite više ribe.

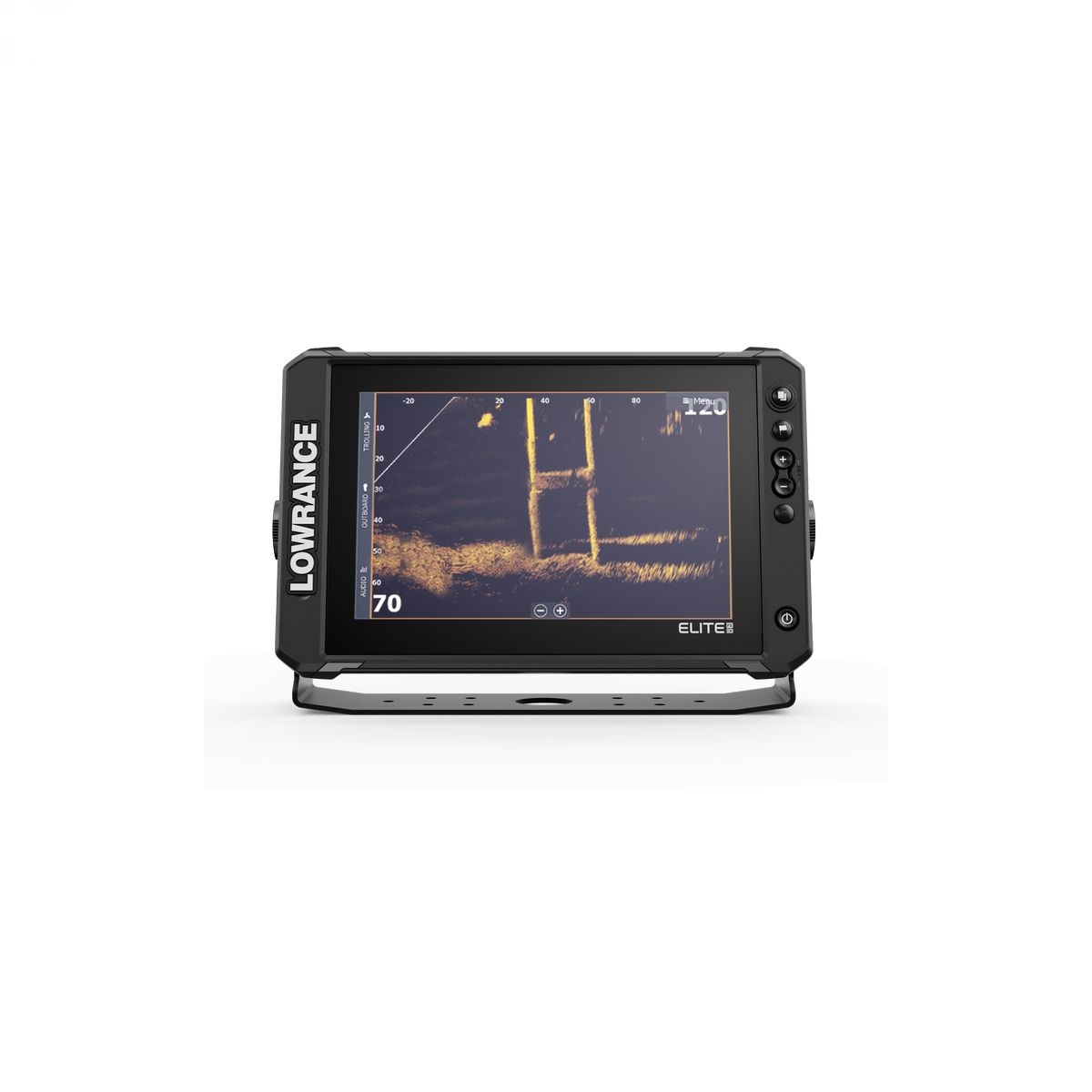

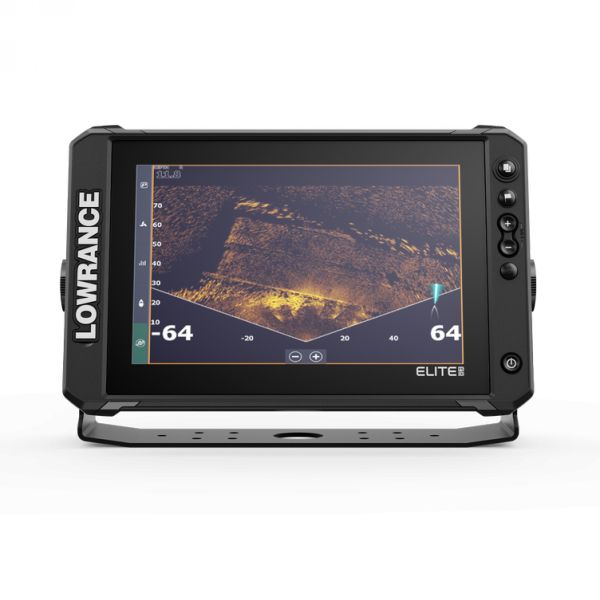

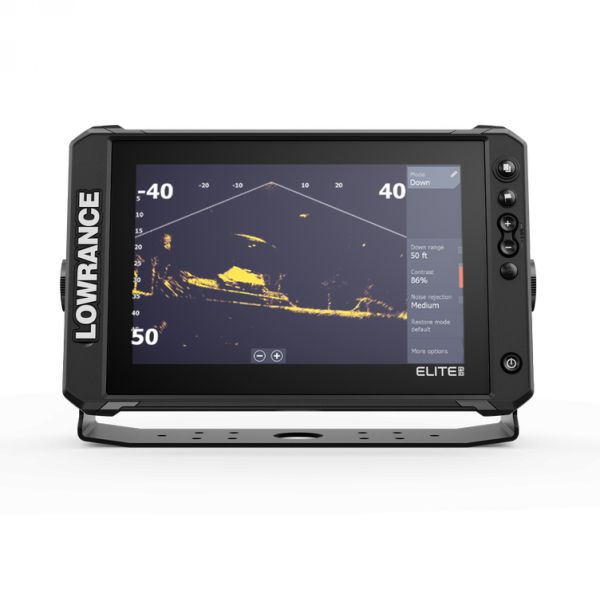

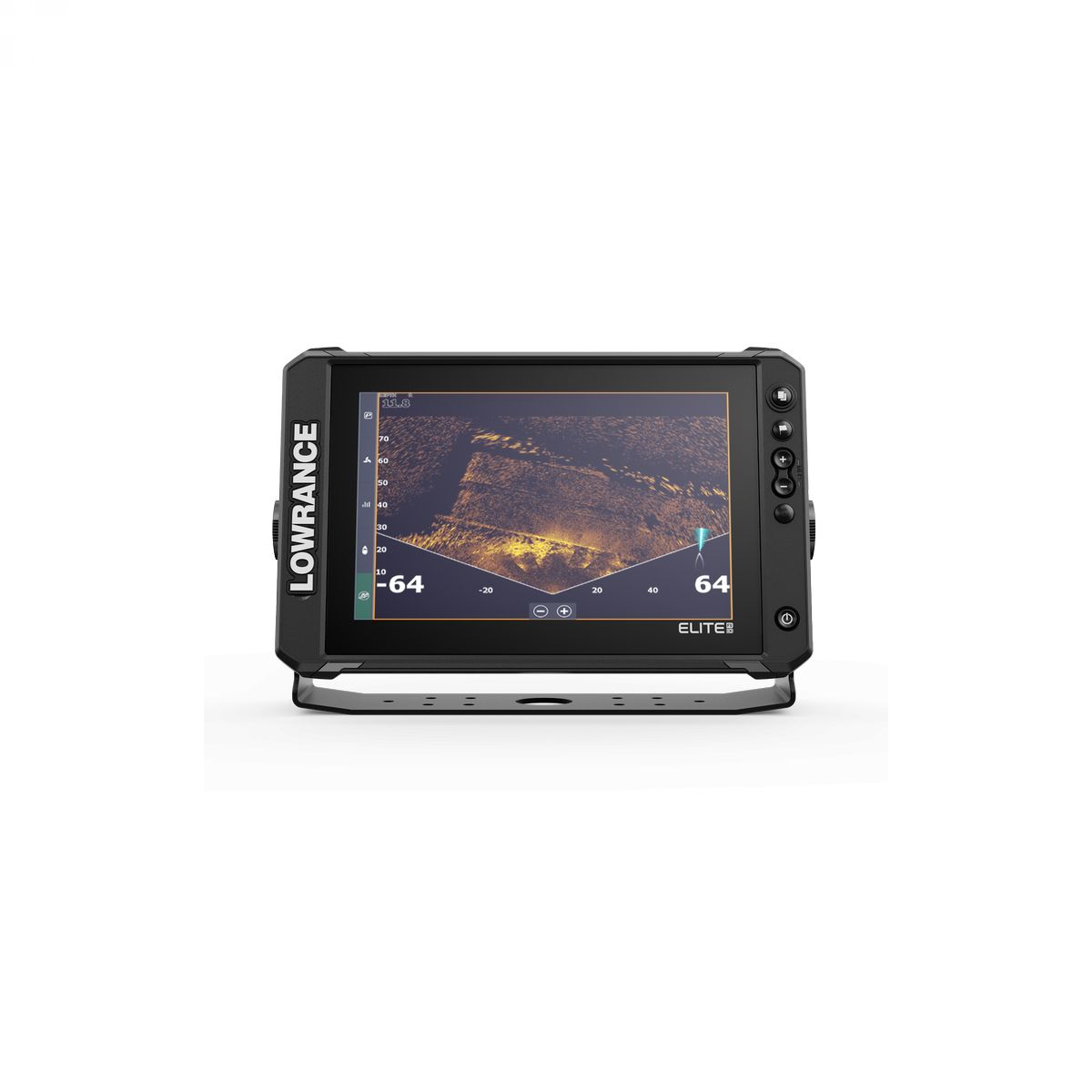

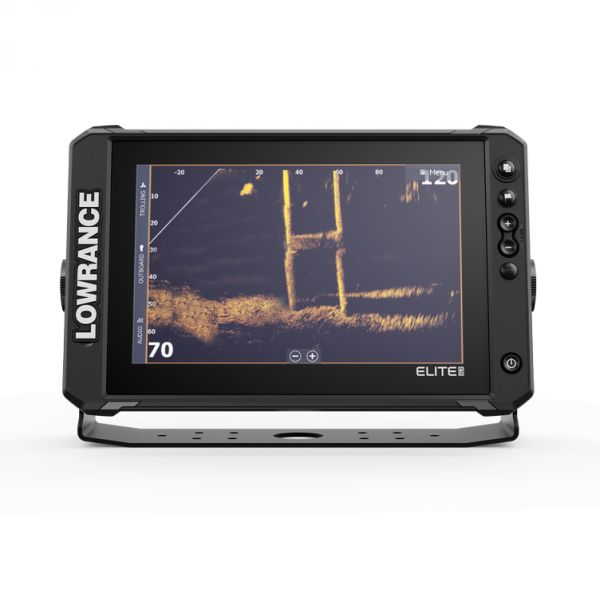

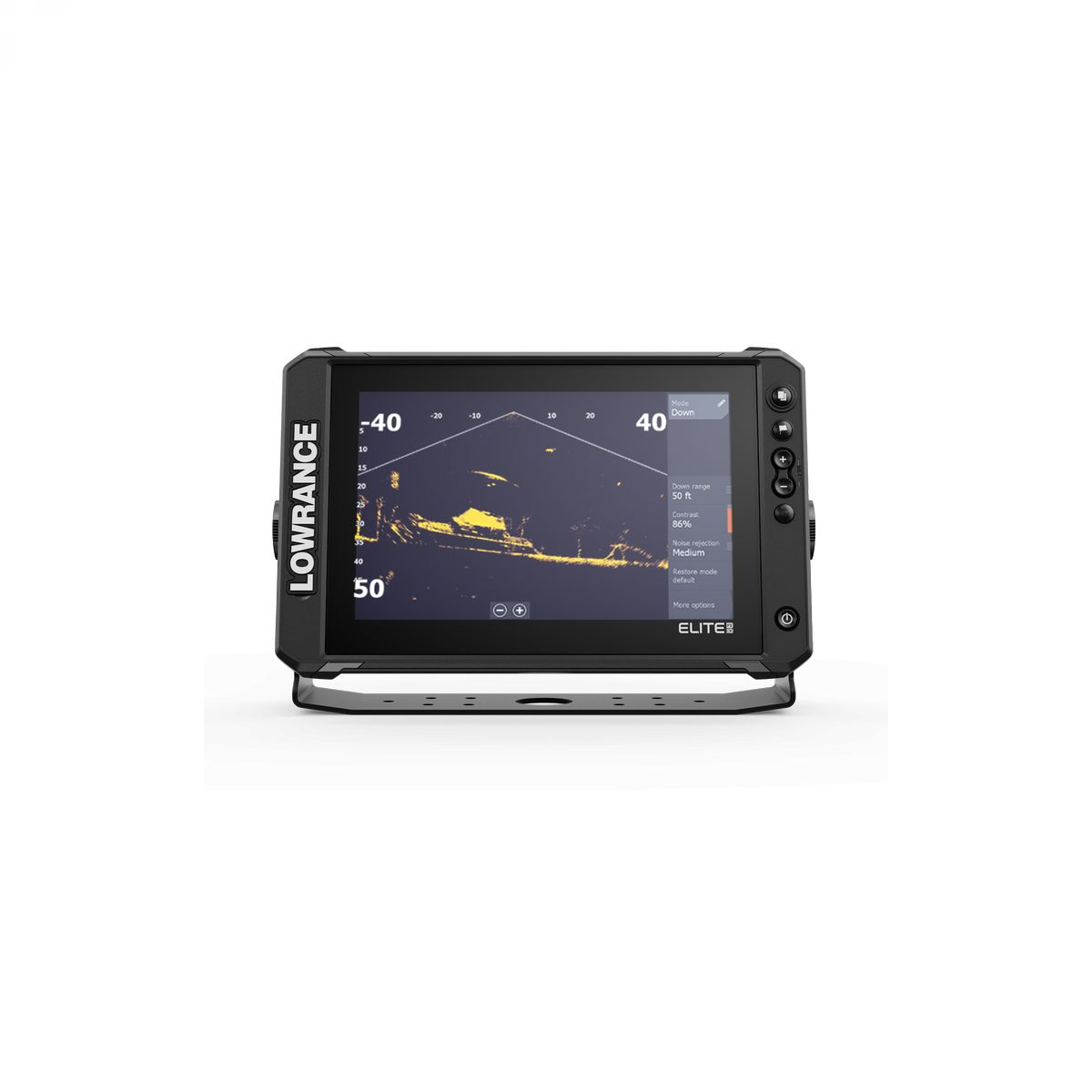

Ciljajte ribu uživo s ActiveTarget™ 2 sonarom uživo
Ribajte pametnije kada točno znate što riba radi – u stvarnom vremenu – uz ActiveTarget™ 2 Live Sonar. Uživajte u prikazima kretanja riba u visokoj razlučivosti, prateći ih dok plivaju unutar i oko zaklona. Gledajte njihov odgovor u stvarnom vremenu na vaš mamac i znat ćete funkcionira li vaša trenutna tehnika ili je vrijeme da promijenite stvari. Napomena: Nema opcija podijeljenog zaslona u modelima 10 i 12

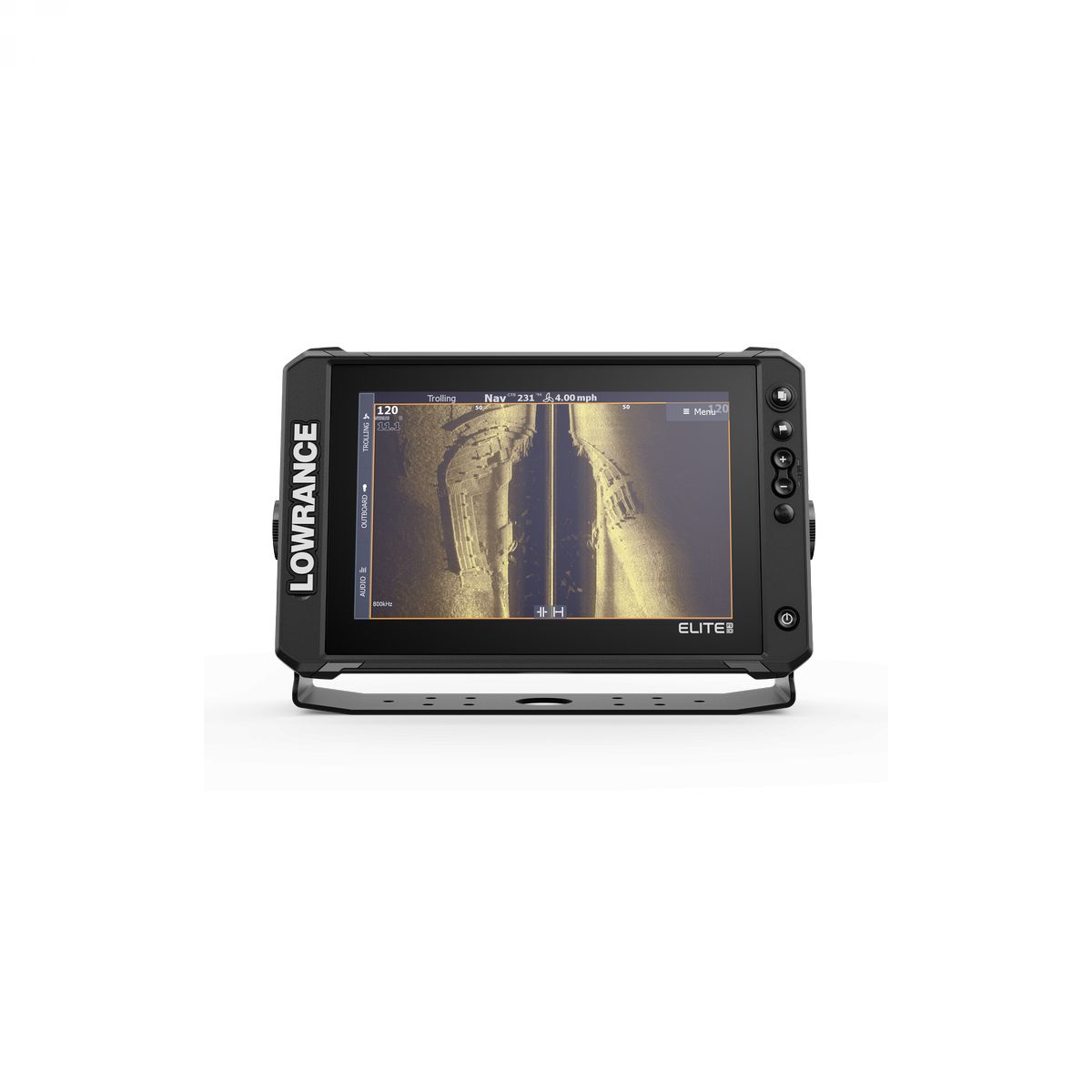

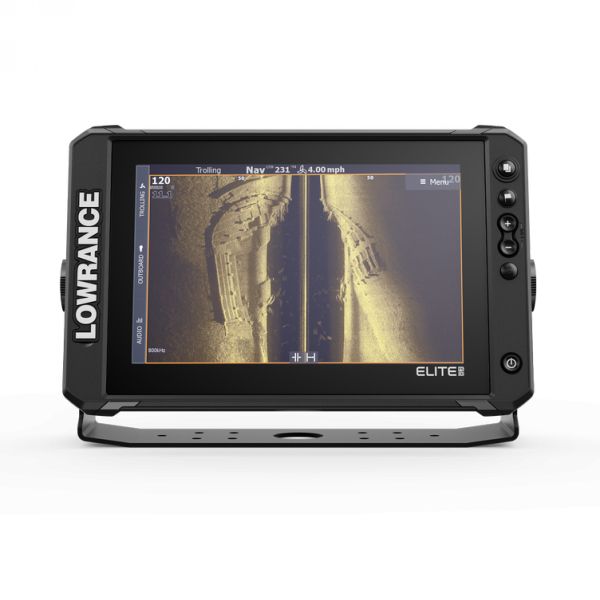

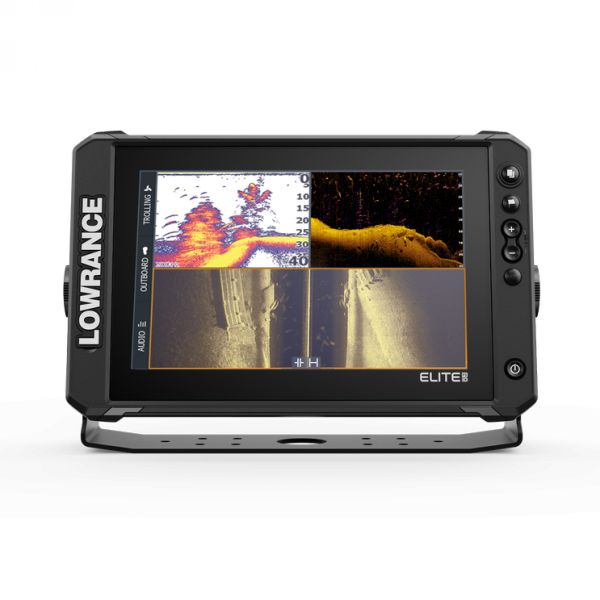

Pronađite više ribe s provjerenim Lowrance sonarom

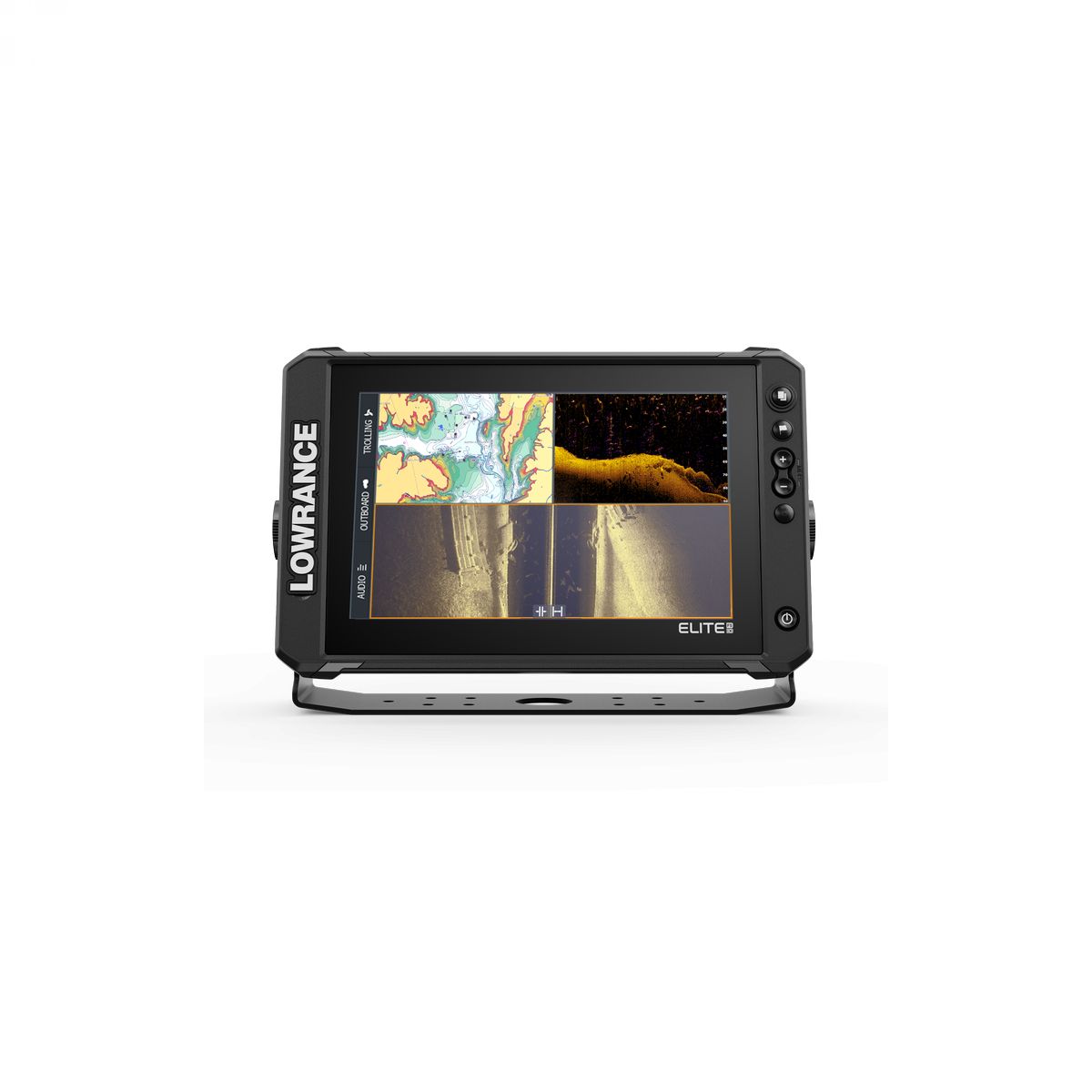

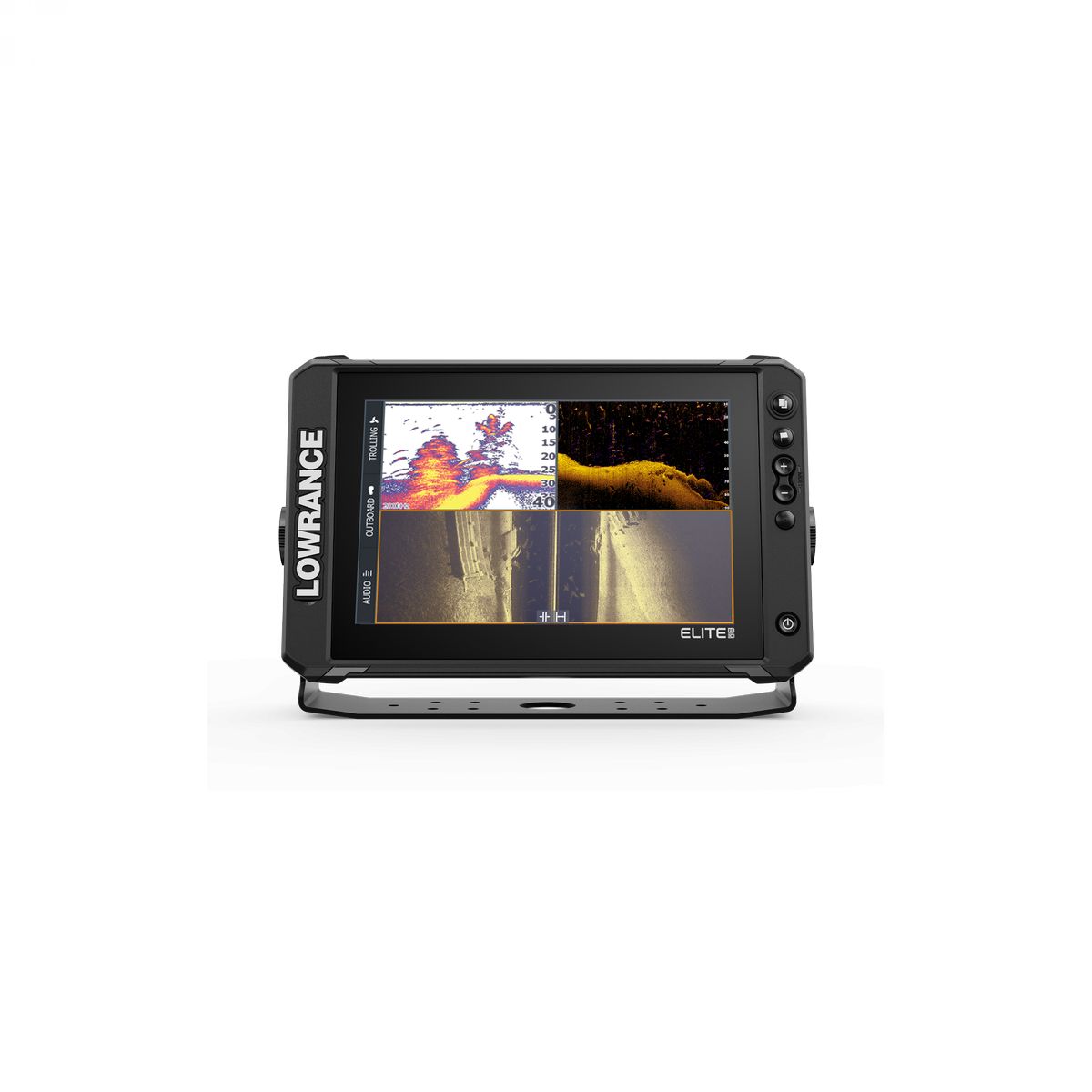

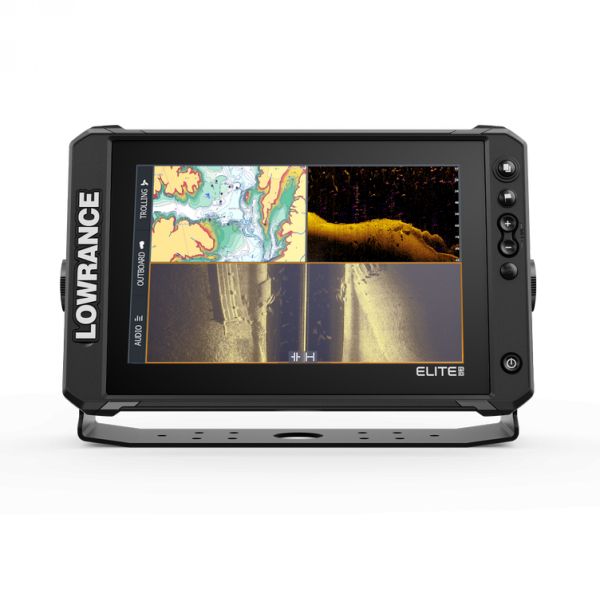

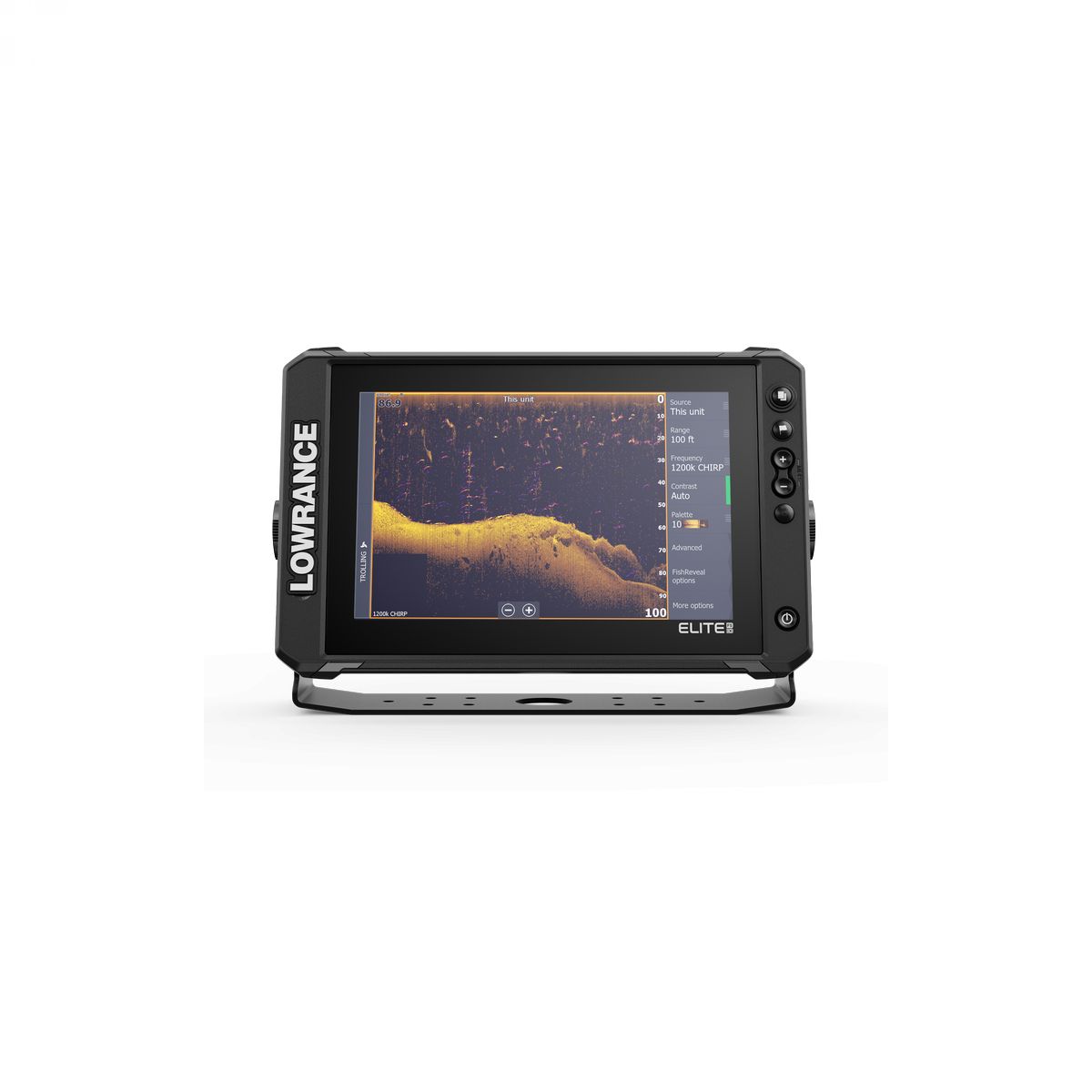

Pogledajte strukturu i pokrov s novom razinom profinjenih detalja i u rasponu neusporedivom s bilo kojom drugom tehnologijom snimanja strukture uz Active Imaging™ i Active Imaging™ HD* 3-u-1 sonar koji sadrži CHIRP, SideScan i DownScan Imaging™ s FishReveal™. Dobijte najbolje od CHIRP sonara i DownScan Imaginga na jednom zaslonu uz FishReveal, Lowrance ekskluzivu koja vam pomaže da jednostavno prepoznate ribu prema strukturi i pokrovu na DownScan slikama s velikim brojem detalja.

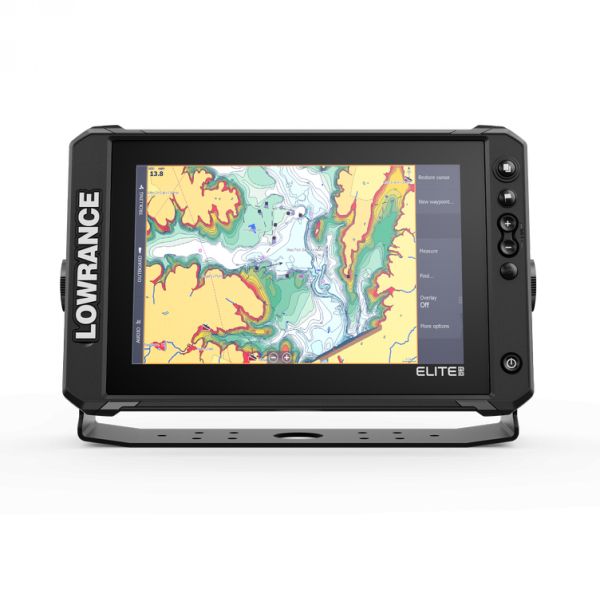

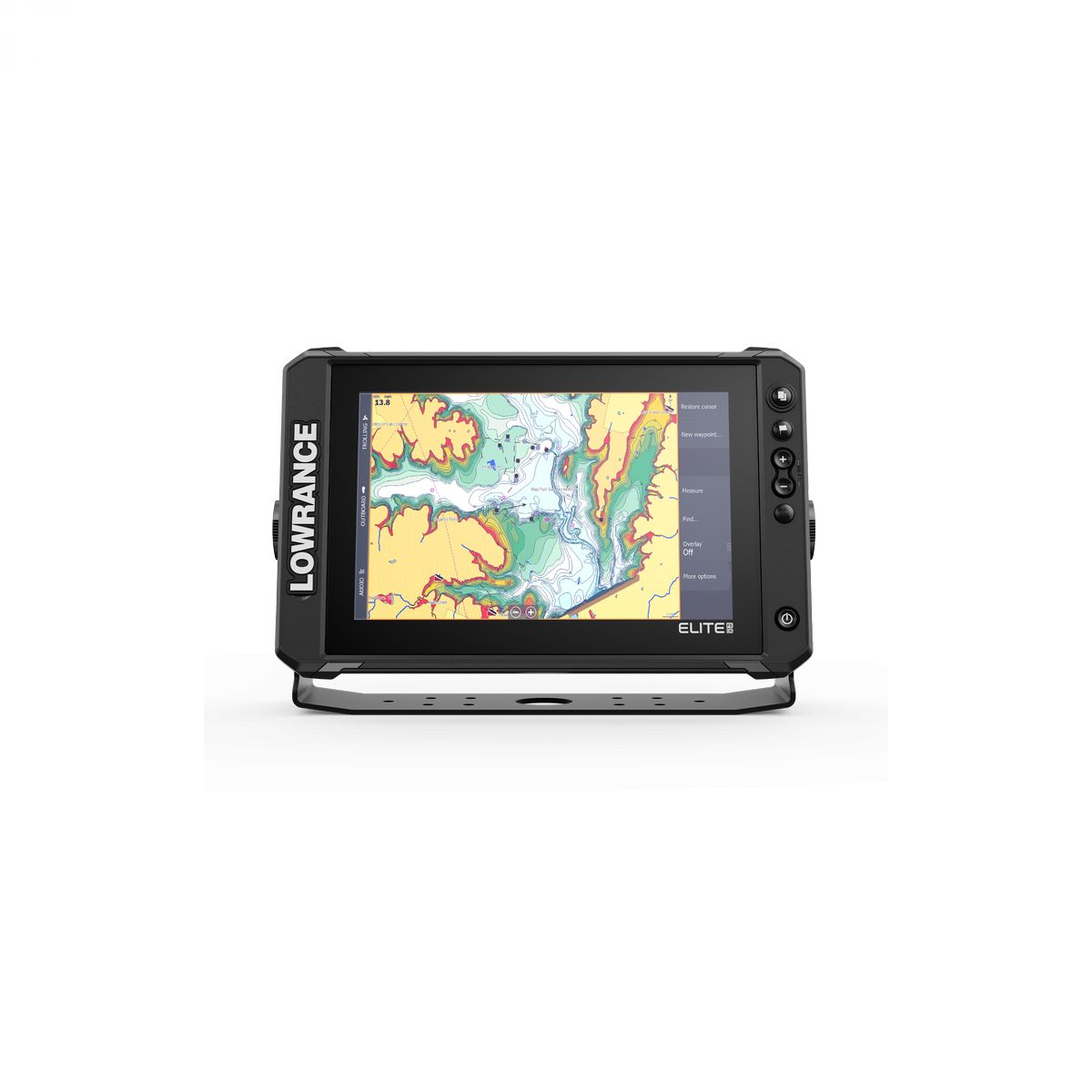

Pronađite ključna ribolovna područja s C-MAP® Enhanced Embedded
Provedite više vremena pokušavajući uhvatiti ribu, a manje vremena pokušavajući je pronaći s detaljima visoke rezolucije C-MAP® Enhanced Embedded kopnenih i obalnih karata ugrađenih u Elite FS zaslone. Od pronalaženja ključnih područja za ribolov, kao što su izbočine, ispadi i jarci do precizne navigacije do područja za držanje ribe, imat ćete više uspjeha na vodi s C-MAP® Enhanced Embedded kartama. *Active Imaging HD zahtijeva S3100 modul
Lowrance Elite 10 FS sa Active Imaging 3-in-1 sondom
Part Number: 000-16438-001
DISPLAY
| Resolution |
1280X800 |
| Viewing angle in degrees |
85° top/bottom, 85° left/right |
| Brightness |
> 1200 nits |
| Touch screen |
Multi-touch |
PHYSICAL
| Weight |
3.66lb (1.66kg) |
| Compass Safe Distance |
2.1 ft (65cm) |
ENVIRONMENTAL
| Operating temperatature range |
-15°C to +55°C (5°F to 131°F) |
| Storage Temperature |
-20°C to +60°C (4°F to 140°F) |
| Waterproof Rating |
IPX6 and IPX7 |
ELECTRICAL
| Supply Voltage |
12 V DC (10 - 17 V DC min - max) |
| Recommended Fuse Rating |
3 Amps |
| Power Consumption Maximum |
34.5 W (2.5 A at 13.8 V DC) |
INTERFACE/CONNECTIVITY
| NMEA 2000 |
1 port (Micro-C connector) |
| Data Card Reader |
1x slot (microSD, SDXC) |
| Ethernet |
1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar |
1 port (9-pin connector) |
| WiFI Internal |
802.11b/g/n : No wireless networking between units |
| Bluetooth |
4.0 with support for Bluetooth® Classic |
| GPS |
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
Lowrance Elite 10 FS sa Active Imaging 3-in-1 sondom
Part Number: 000-16438-001
Elite™ FS 10 with Active Imaging 3-in-1 Transducer (ROW): The Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard charts – to help you make the most of your time on the water. *Active Imaging HD requires S3100 Module
Key Features
- ActiveTarget™ 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishReveal™
- Preloaded C-MAP Enhanced Embedded, plus mapping options including C-MAP, Navionics® and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install.From ActiveTarget™ 2 live sonar and extreme high-resolution Active Imaging™ and Active Imaging™ HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Discover Onboard Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Target Fish Live with ActiveTarget™ 2 Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Note: No splitscreen options in 10 & 12 Models
Find More Fish with Proven Lowrance Sonar
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™ with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Find Key Fishing Areas with C-MAP® Enhanced Embedded
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Enhanced Embedded inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with C-MAP® Enhanced Embedded charts. *Active Imaging HD requires S3100 Module
Lowrance Elite 10 FS sa Active Imaging 3-in-1 sondom
Part Number: 000-16438-001

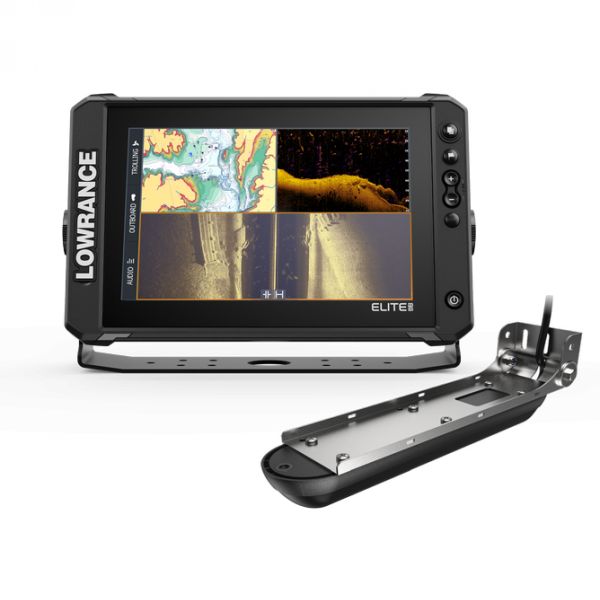

- Zaslon ELITE FS 10
- Zaštitni poklopac zaslona
- Nosač za brzo skidanje uređaja
- sonda ActiveImaging™ 3-IN-1 sa 7,6 m kabela 000-14480-001
- nosač sonde
- Power kabel
- Kutne kvačice
- Dokumentacija
