Lowrance Point-1 AP GPS antena 12930
Part Number: 000-12930-002
Point-1 AP GPS i antena za smjer pružaju izuzetno točna i brza ažuriranja položaja i brzine plovila mreži. Ugrađeni magnetski kompas s točnošću i podešavanjem specifičnim za Lowrance autopilote također omogućuje stabilizaciju karte i radarsko preklapanje, plus točan kurs u odnosu na tlo čak i pri malim brzinama.
Point-1AP antena
PRECIZNI GPS/GLONASS PRIJEMNIK S ELEKTRONIČKIM KOMPASOM
Lowrance Point-1 AP je idealan uređaj za određivanje položaja i smjera za Lowrance AutoPilot. Point-1 pruža izuzetno točna i brza ažuriranja položaja i brzine plovila. Osim toga, za razliku od drugih antena koje određuju samo položaj, Point-1 pruža smjer za točan smjer plovila pri bilo kojoj brzini i za preklapanje s radarom/kartom.
KLJUČNE ZNAČAJKE
- NMEA 2000® senzor položaja i smjera
- Podržava GPS i GLONASS, Galileo-kompatibilan s budućim ažuriranjem softvera
- Podržava SBAS, uključujući WAAS/EGNOS/MSAS
- Ažuriranja od 10 Hz za glatko i točno lociranje
- Integrirani elektronički kompas pruža smjer od 10 Hz za stabilizaciju karte i preklapanje s radarom, plus točan kurs u odnosu na tlo čak i pri malim brzinama
- Kompaktan, robustan dizajn za sva morska okruženja i potpuno vodootporan
..........................................................................................................................................
U paketu dolazi sa
- Micro-C T-connector 000-0119-79 (slika 2)
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000 kabel 000-0119-86 (slika 3)
..........................................................................................................................................
Point-1 AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.
Point-1AP Antenna
PRECISION GPS/GLONASS RECEIVER WITH ELECTRONIC COMPASS
The Lowrance Point-1 AP is the ideal position and heading device for the Lowrance AutoPilot. Point-1 provides extremely accurate and rapid boat position and speed updates. In addition, unlike other position-only antennas, the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.
KEY FEATURES
- NMEA 2000® position and heading sensor
- Supports GPS and GLONASS, Galileo-capable with future software update
- Supports SBAS, including WAAS/EGNOS/MSAS
- 10 Hz updates for smooth and accurate location
- Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
- Compact, rugged design for all marine environments and fully waterproof
..........................................................................................................................................
Lowrance Point-1 GPS antena
Part Number: 000-12930-002
Specifications
Networking
| NMEA 2000 Certified |
Yes |
| Connectors |
NMEA 2000 Micro C |
Power
| Power Supply (Supply Voltage) |
9v-18v |
GPS Navigation
| GPS Receiver Channels |
32 |
| Heading Accuracy |
3 degrees |
| Horizontal Accuracy |
5 m |
| Rate of Turn |
3 degrees |
| Satellite Reacquisition |
<5 seconds |
| Start-up Time |
<3 seconds |
| Cold Start |
<50 seconds |
| Picth/Roll Angle |
@30 degrees 1 grade error |
Technical/Environmental
| Diameter |
90 mm (3.54in) |
| Product Height |
38 mm ( 1.50in) |
| Product Weight |
0.3 lbs (approximately) |
Lowrance Point-1 GPS antena
Part Number: 000-12930-002
COMES WITH
 |
000-0119-79 |

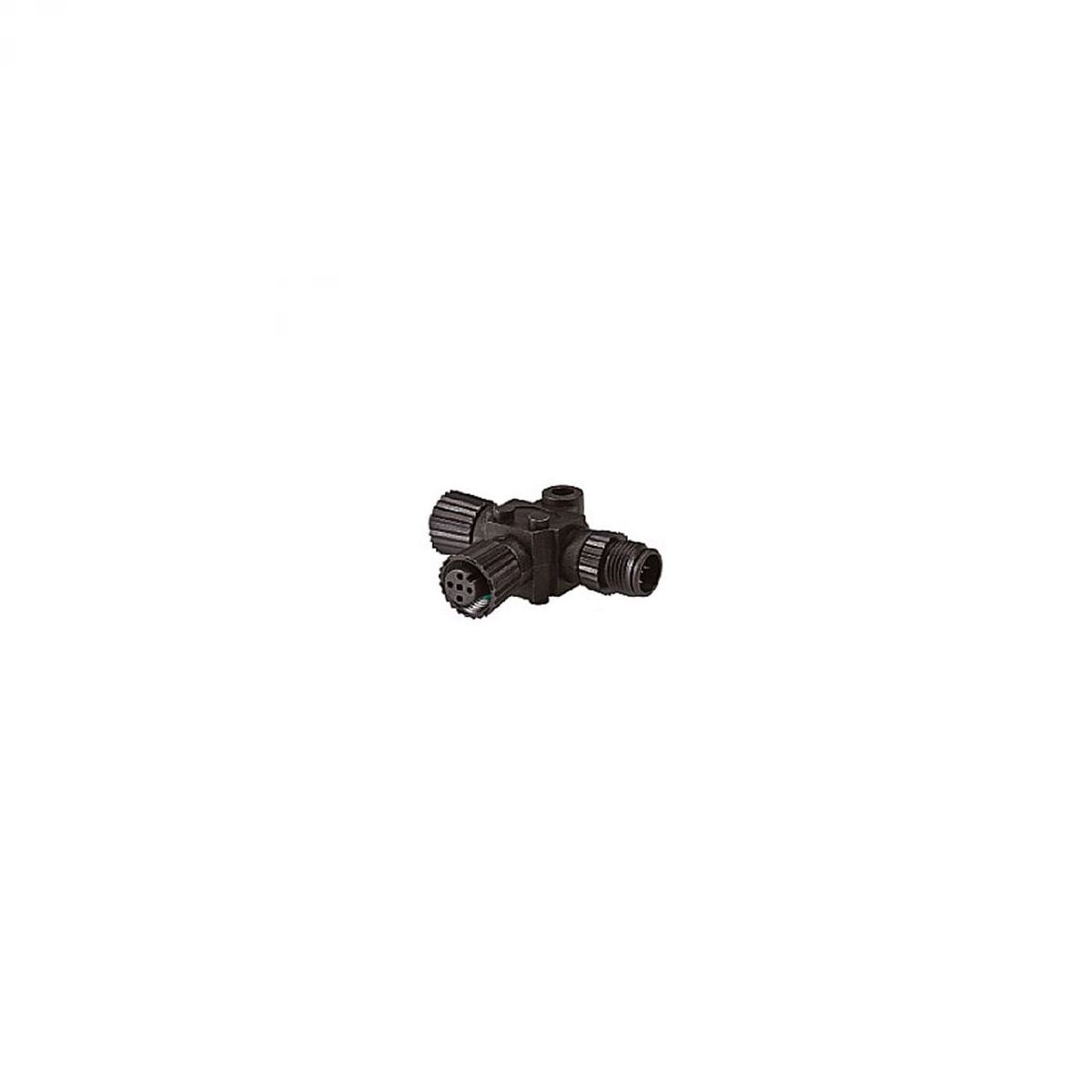

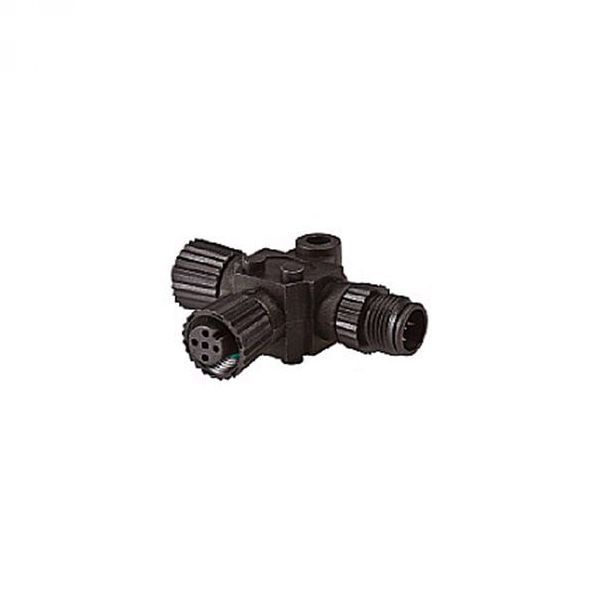

N2K T-Joiner
N2K-T-RD - Micro-C T-connector for connection of an additional network device
|
|
|
 |
000-0119-86 |

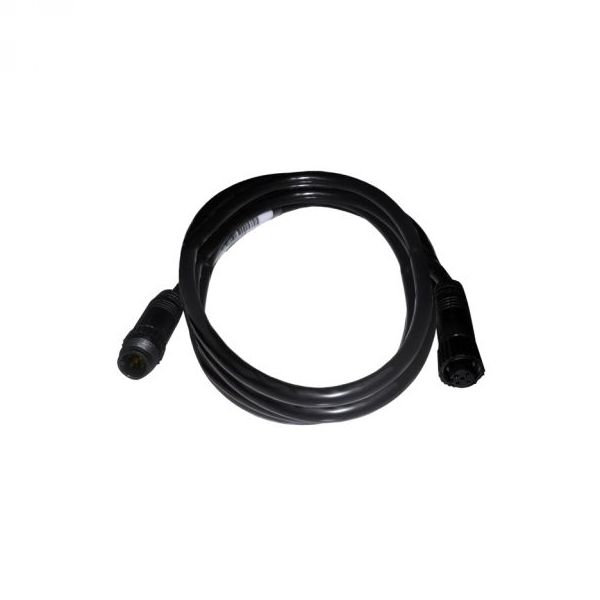

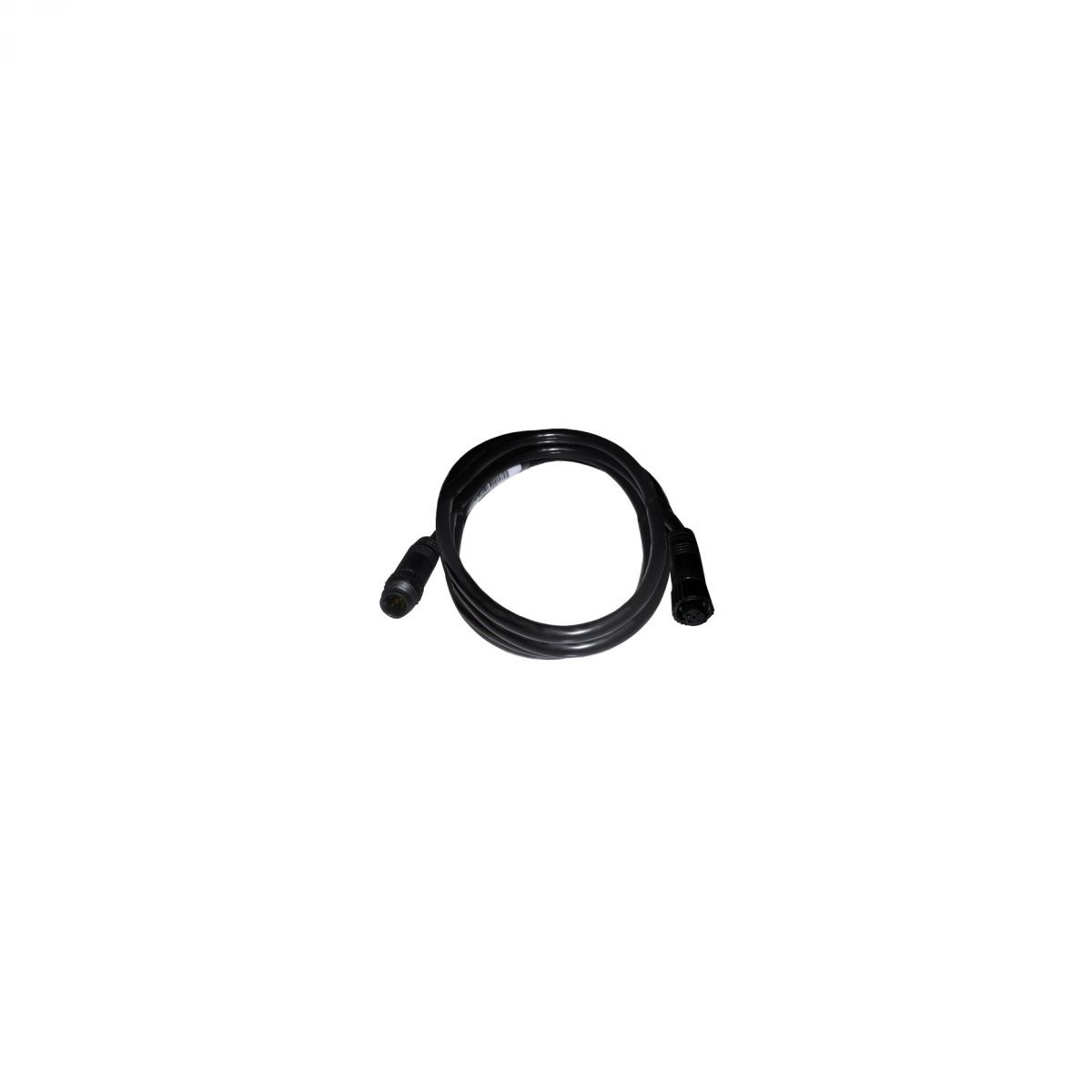

N2K Cable - 4.5m (15ft)
N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device
|
|
|
