QUICK B32512S nautički bojler B3 okrugli 25lit 1200W
- 25lit,
- 1200W,
- 605 x 316 x fi 300 mm,
- 9kg,
- grijanje vode preko motora tijekom vožnje i preko grijača na 220V,
- kućište izrađeno od polyuretanske pjene nanesene izravno na INOX AISI 316 spremnik
- garancija 3 godine
........................................................................................................................
Nautički bojleri Quick izrađeni su od visoko kvalitetnog materijala i imaju brojne prednosti:
* mogućnost zagrijavanja vode preko motora tijekom vožnje i preko grijača na 220V.
* inox bubanj kvalitete AISI 316 dugotrajno je otporan na koroziju.
* Kućište u varijantama inox AISI 316 ili polyuretanske pjene izravno nanesene na bubanj – izvrsna toplinska izolacija
* svi modeli imaju nepovratni ventil koji sprječava istjecanje vode u slučaju neupotrebe
* raspoloživi modeli u različitim oblicima i dimenzijama (okrugli modeli od 15-80 lit, pravokutni model od 16lit, četverokutni modeli od 25 i 40lit)
Za sve modele – garancija 3 godine!
........................................................................................................................
Casing in composit material and Tank in Aisi 316 stainless steel
Benefit
- High quality materials.
- Heat exchanger with wide exchange surface.
- Produces hot water from the electric element,
- that is fitted with an adjustable safety thermostat.
- Relief / non-return vale that allows discharging of
- the water heater in case of disuse
- 3 years Warranty!
The features
- The heat exchanger used for Quick "Nautic Boiler B3” is AISI 316L stainless steel. The heat exchang capacity is notably higher than that achieved from other manufactures.
- The tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas and hence highly resistant to corrosive agents.
- The electrical heating element is made of Incoloy®.
- The thermal insulation is high density polyurethane foam injected between the cover and tank giving excellent heat retention properties.
Included accessories
- Tank mounting brackets are in stainless steel AISI 316 and are supplied as standard in each package.
- Nautic Boiler with mounting brackets for wall- or floor-mounted.
Optional accessories
- Thermostatic mixing valve kit.
- Anti-flare protection. The heating element can be provided with an anodized aluminium case that protects the water heater in potentially explosive environments (ISO 8846).

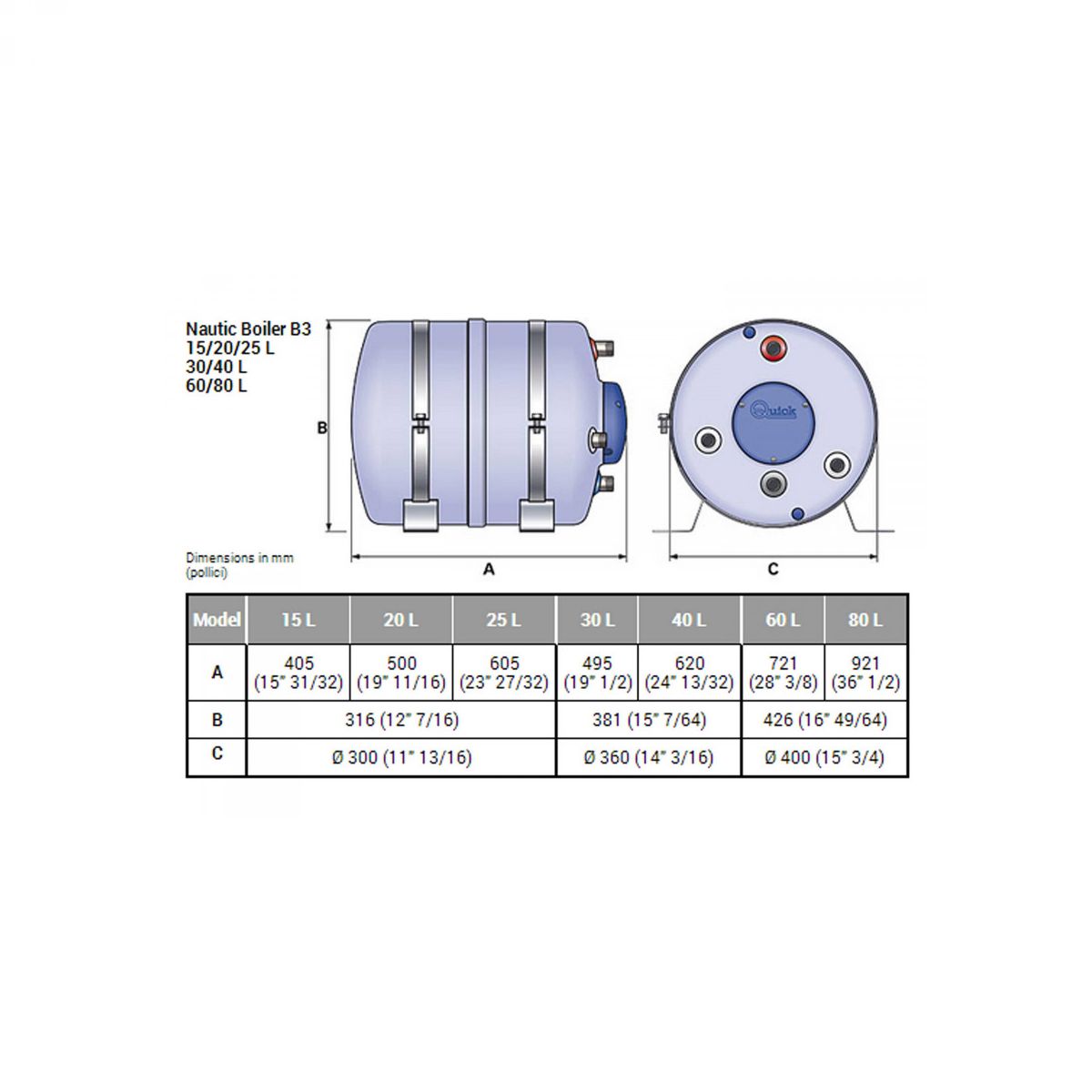

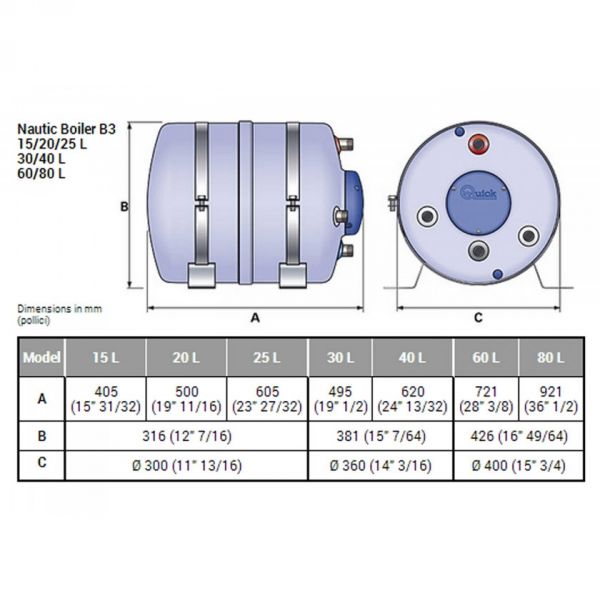

Nautic Boiler B3 15/20/25 L 30/40 L 60/80 L
Dimensions in mm (pollici)
|
Model
|
15 L
|
20 L
|
25 L
|
30 L
|
40 L
|
60 L
|
80 L
|
|
A
|
405
(15" 31/32)
|
500
(19" 11/16)
|
605
(23" 27/32)
|
495
(19" 1/2)
|
620
(24" 13/32)
|
721
(28" 3/8)
|
921
(36" 1/2)
|
|
B
|
316 (12" 7/16)
|
381 (15" 7/64)
|
426 (16" 49/64)
|
|
C
|
Ø 300 (11" 13/16)
|
Ø 360 (14" 3/16)
|
Ø 400 (15" 3/4)
|
|
Models
|
B3 15
|
B3 20
|
B3 25
|
B3 30
|
B3 40
|
B3 60
|
B3 80
|
|
Tank capacity - L
|
15 L
|
20 L
|
25 L
|
30 L
|
40 L
|
60 L
|
80 L
|
|
Tank material
|
Stainless steel
|
|
Thermal insulating
|
Polyurethane foam
|
|
External cladding material
|
Composite
|
|
Tank pressure (running test)
|
800 kPa (1)
|
|
Maximum working pressure
|
600 kPa (1)
|
|
Electric element voltage rating (2)
|
220 Vac ± 10% - (110 Vac ± 10%)
|
|
Electric element power (2)
|
500 W [Model 05] - 600 W [Model 06] (4) - 1200 W [Model 12]
|
|
Outputs diameter
|
1/2"
|
|
Weight with heat exchanger (3) - kg / lb
|
7,0
15.4
|
8,1
17.9
|
8,5
18.7
|
10,5
23.1
|
11,7
25.8
|
14,6
32.2
|
17,8
39.2
|
|
1)
|
1 Bar = 100 kPa
|
|
2)
|
Available on request
|
|
3)
|
Of empty equipment
|
|
4)
|
Only forr 110 Vac
|
