QUICK sidreno vitlo PRINCE DP1 512 (500W 12V)

Vertical windlasses

Vertikalno sidreno vitlo
bez bubnja
lančanik 6mm (uključen sklopnik)

CIJENA:

REDOVNA CIJENA:	912,00 € 6871,46 kn
WEBSHOP CIJENA:	866,40 € 6527,89 kn

Šifra proizvoda:

Komada

Trenutno nedostupno

Pošaljite upit Košarica

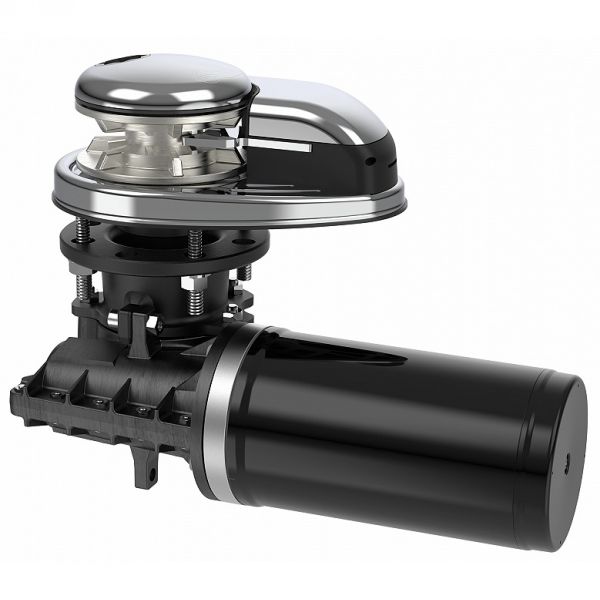

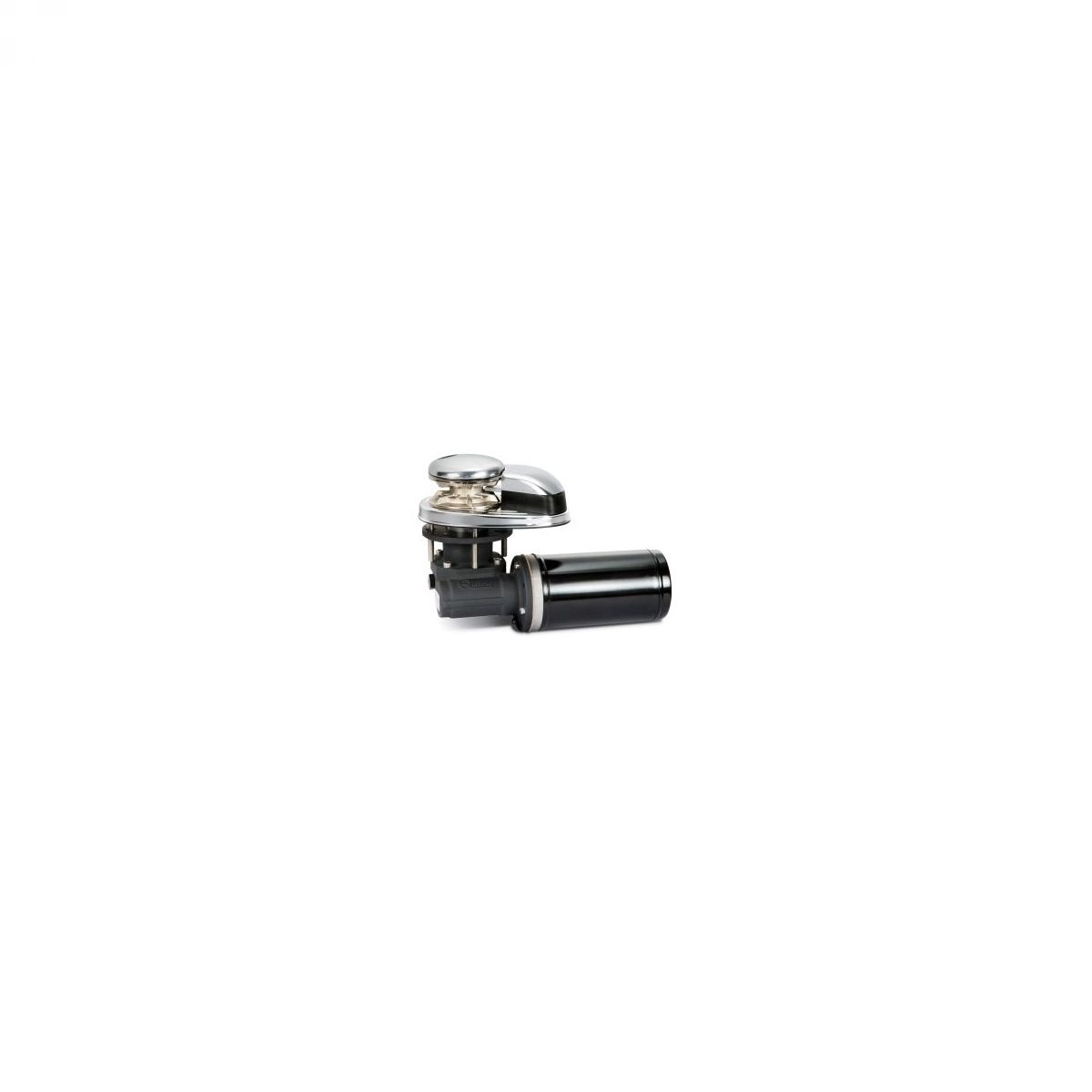

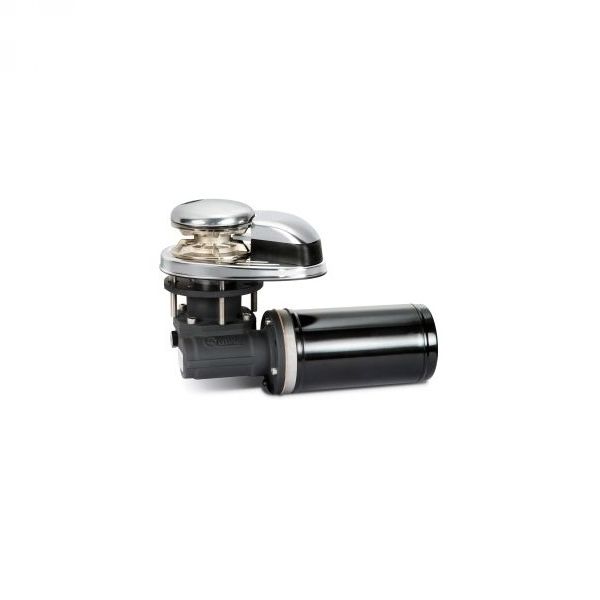

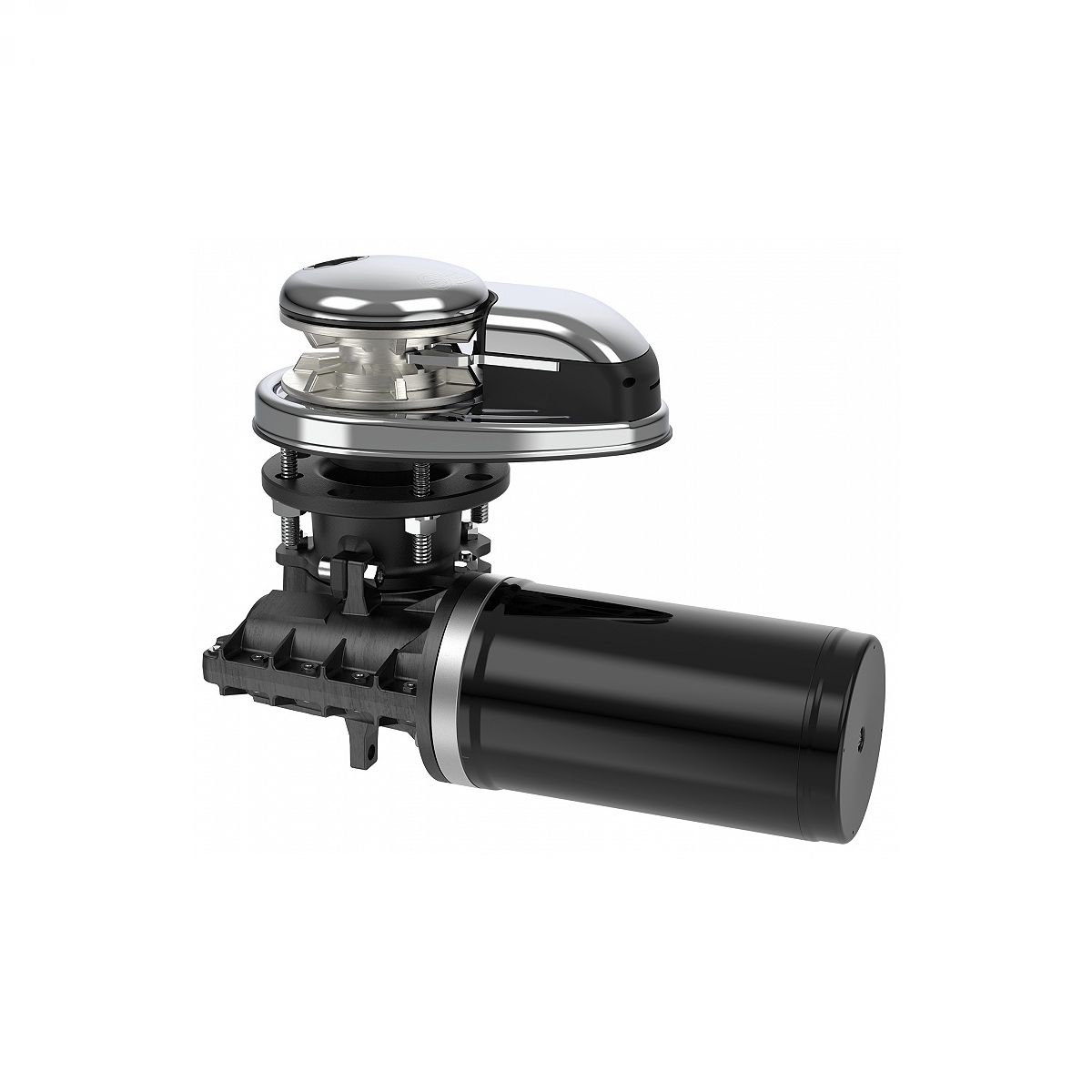

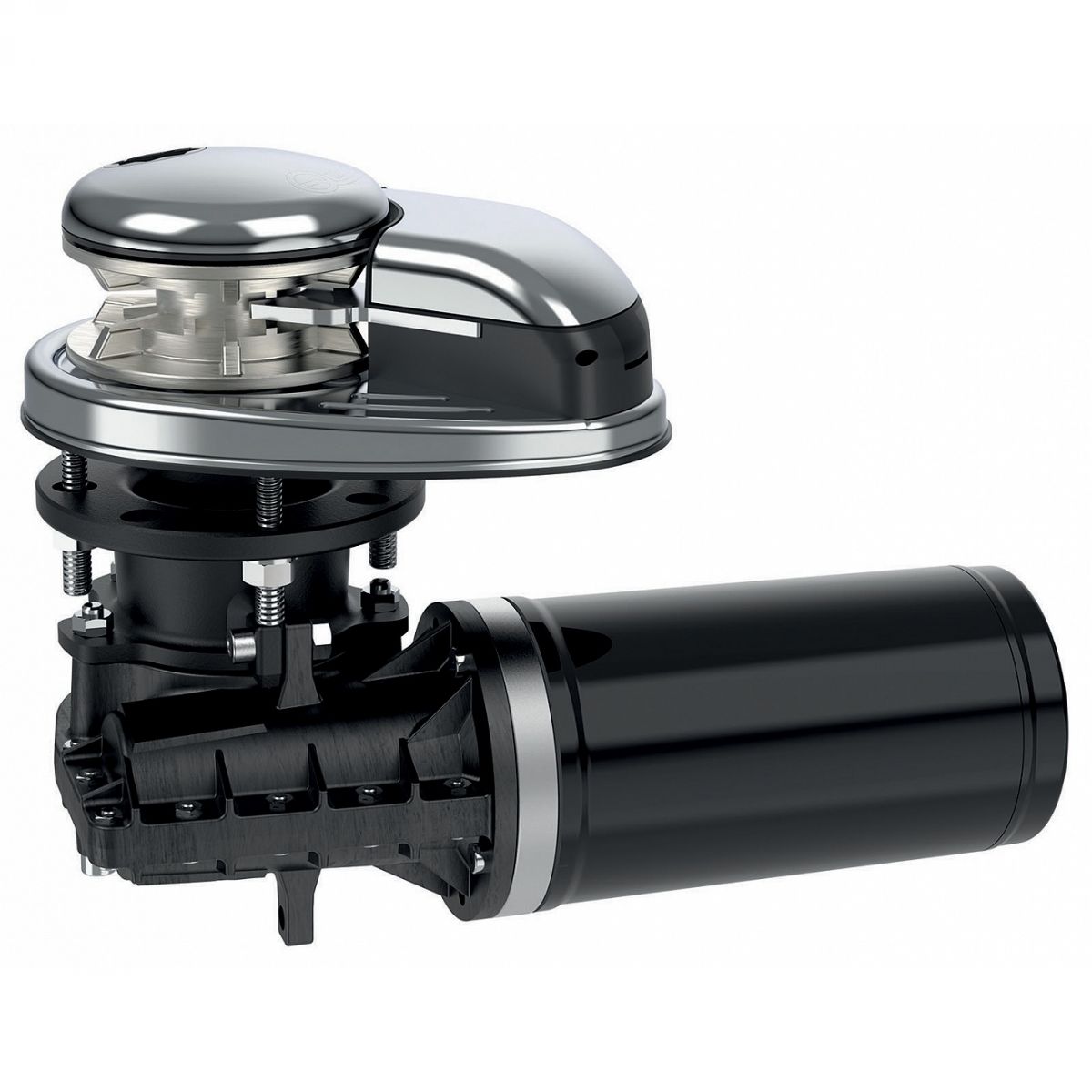

QUICK sidreno vitlo PRINCE DP1 512 (500W 12V)

NOVI MODEL - BAZA INOX, lančanik 6mm (uključen sklopnik)

........................................................................................................................

Vertical windlasses
Aisi 36 Stainless steel base
With and without drum
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Inspection cover
IP66 Watertight motor
Anodized aluminium gearbox

Gypsy and Drum
Ø 90 mm / 3" 35/64

........................................................................................................................

DP1 500/500D

Deck thickness:
20÷30 mm (25/32"÷1" 3/16)
On request, shaft and studs can be supplied
for greater deck thicknesses.

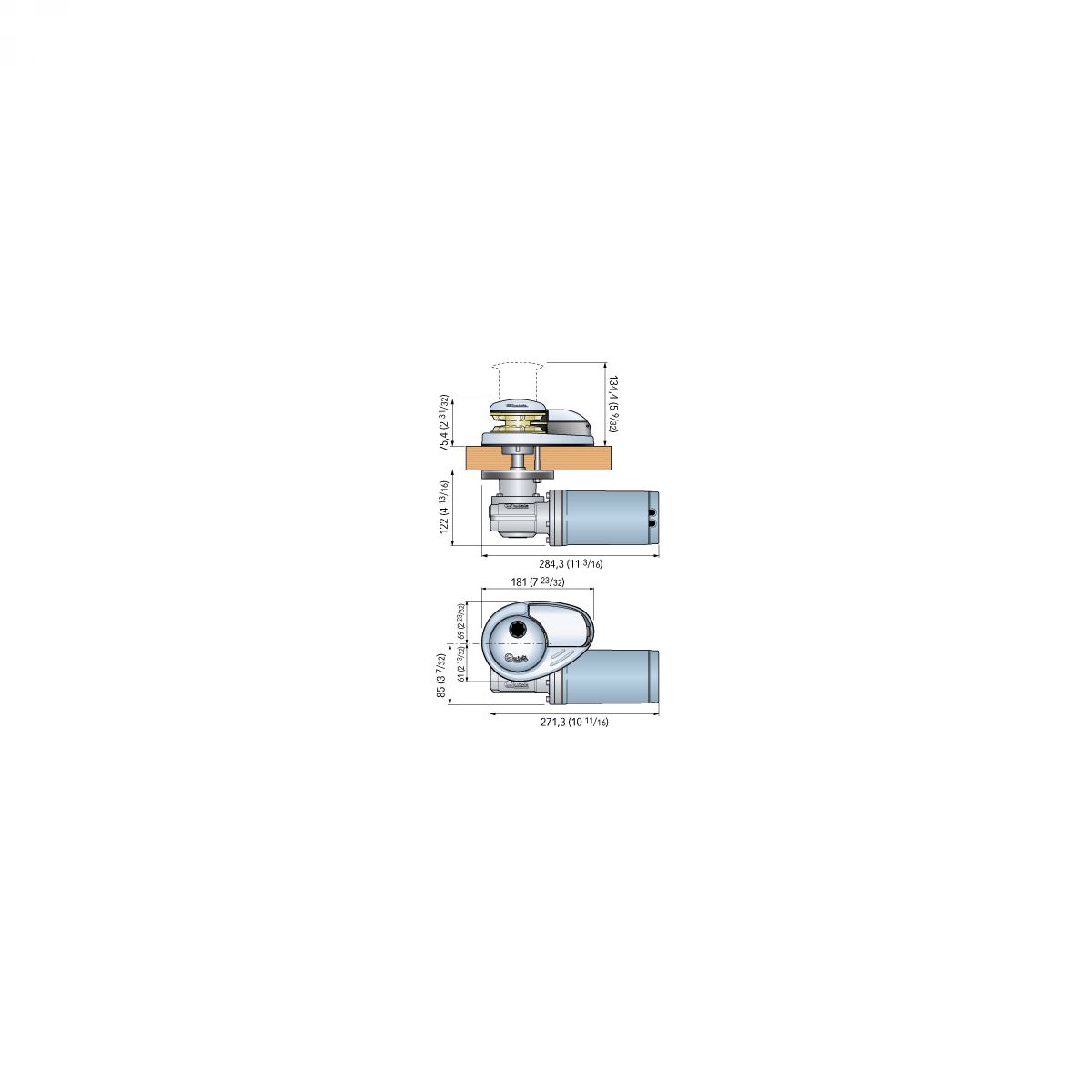

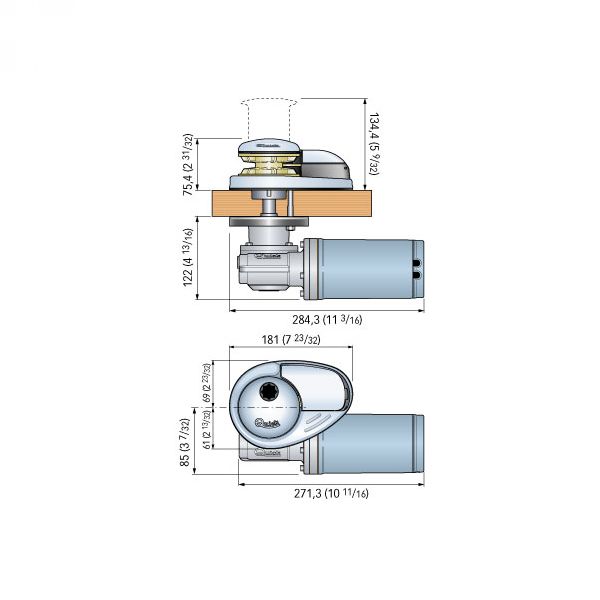

Dimensions in mm (inch)

........................................................................................................................

for boats from 5 to 9 meters (16 - 29 ft)
DP	300 W	5 - 7 m	16 - 23 ft
DP	500 W	6 - 9 m	20 - 30 ft

The indication may vary according to the boat type and the anchor-rode type

........................................................................................................................

DP1

6 mm		1/4"
6 mm	6 mm	1/4"
DIN 766	ISO	BBB

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.

Standard version	DP1 500 / 500 D
Motor power	500 W
Motor supply voltage	12 V	24 V
Maximum pull	660 Kg \| 1455 lb
Maximum working load	200 Kg 441 lb	220 Kg 485 lb
Working load	65 Kg 143 lb	70 Kg 154 lb
Current absorbtion @ working load (1)	80 A	40 A
Maximum chain speed (2)	25,2 m/min 82,7 ft/min	25,2 m/min 82,7 ft/min
Maximum chain speed @ working load(2)	18,5 m/min 59,7 ft/min	19,3 m/min 63,3 ft/min
Weight - DP1 - [without drum]	7,4 Kg \| 16.3 lb
Weight - DP1 D - [with drum]	8,8 Kg \| 19,4 lb
HI-SPEED version	DP1 500 / 500 D
Motor power	500 W
Motor supply voltage	12 V	24 V
Maximum pull	600 Kg \| 1323 lb
Maximum working load	170 Kg 375 lb	200 Kg 441 lb
Working load	65 Kg 143 lb	70 Kg 154 lb
Current absorbtion @ working load (1)	100 A	50 A
Maximum chain speed (2)	39 m/min 128 ft/min	39 m/m 128 ft/min
Maximum chain speed @ working load (2)	28,5 m/min 93,5 ft/min	28 m/min 91,9 ft/min
Weight - DP1 - [without drum]	7,4 Kg \| 16.3 lb
Weight - DP1 D - [with drum]	8,8 Kg \| 19.4 lb
