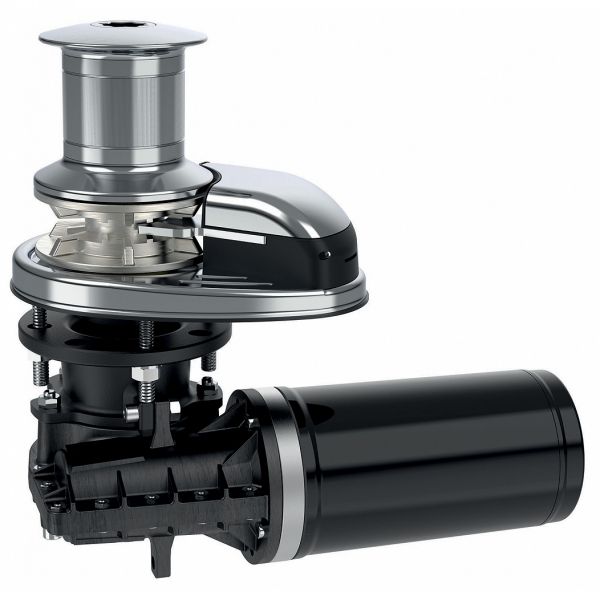

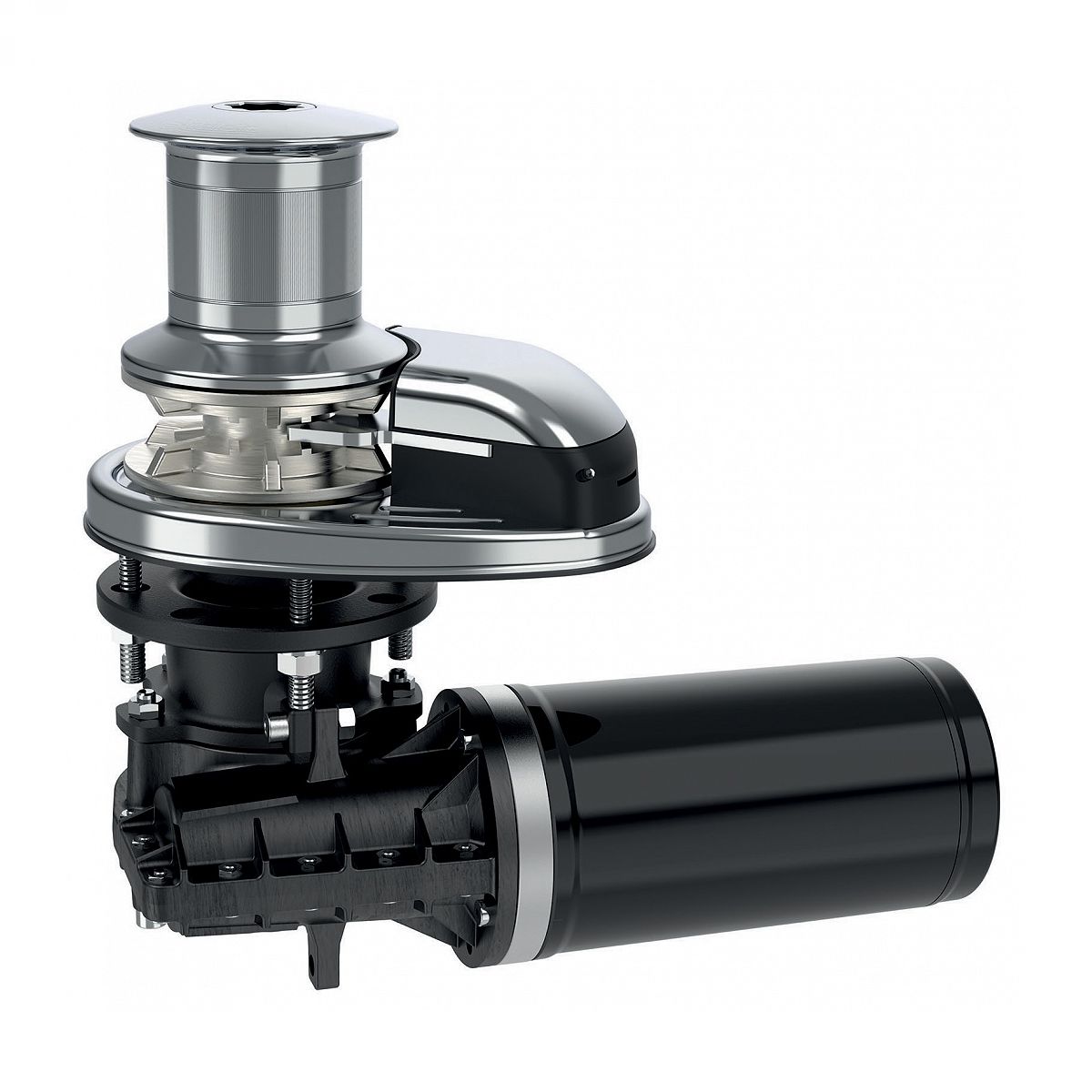

QUICK sidreno vitlo PRINCE DP1 512 D (500W 12V)
BAZA INOX, lančanik 6mm (uključen sklopnik)
DP1 spada u okomite modele sidrenih vitla i namjenjen je brodovima s ograničenim palubnim prostorom. Izrađen je od visoko kvalitetnih materijala.
- Za brodice od 5 do 9 metara
- Okomiti model sidrenog vitla
- Baza od nehrđajućeg čelika Aisi 316 i anodiziranog aluminija
- sa bubnjem
- Integrirani senzor i magnet za mjerač lanca
- Ručni sistem "Free-Fall"
- Inspekcijski ulaz lanca
- IP66 vodonepropusno kućište motora
- Reduktor - tehnopolimer
- Lanac 6mm
- 12V DC
........................................................................................................................
Vertical windlasses
Aisi 36 Stainless steel base
With and without drum
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Inspection cover
IP66 Watertight motor
Anodized aluminium gearbox
Gypsy and Drum
Ø 90 mm / 3" 35/64
........................................................................................................................
DP1 500/500D

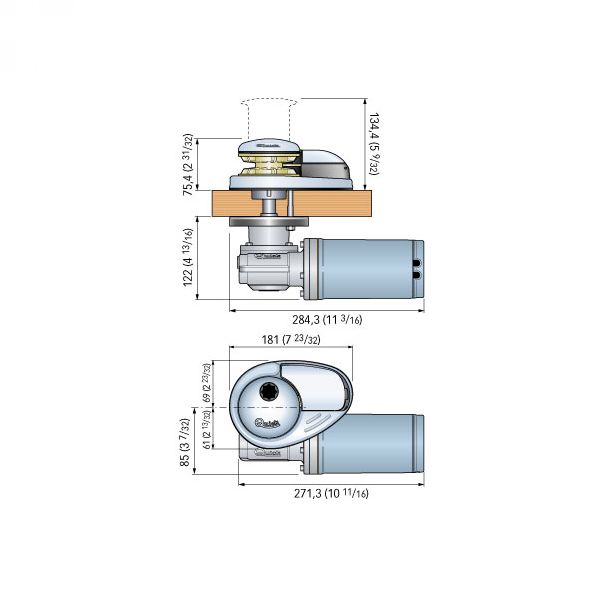

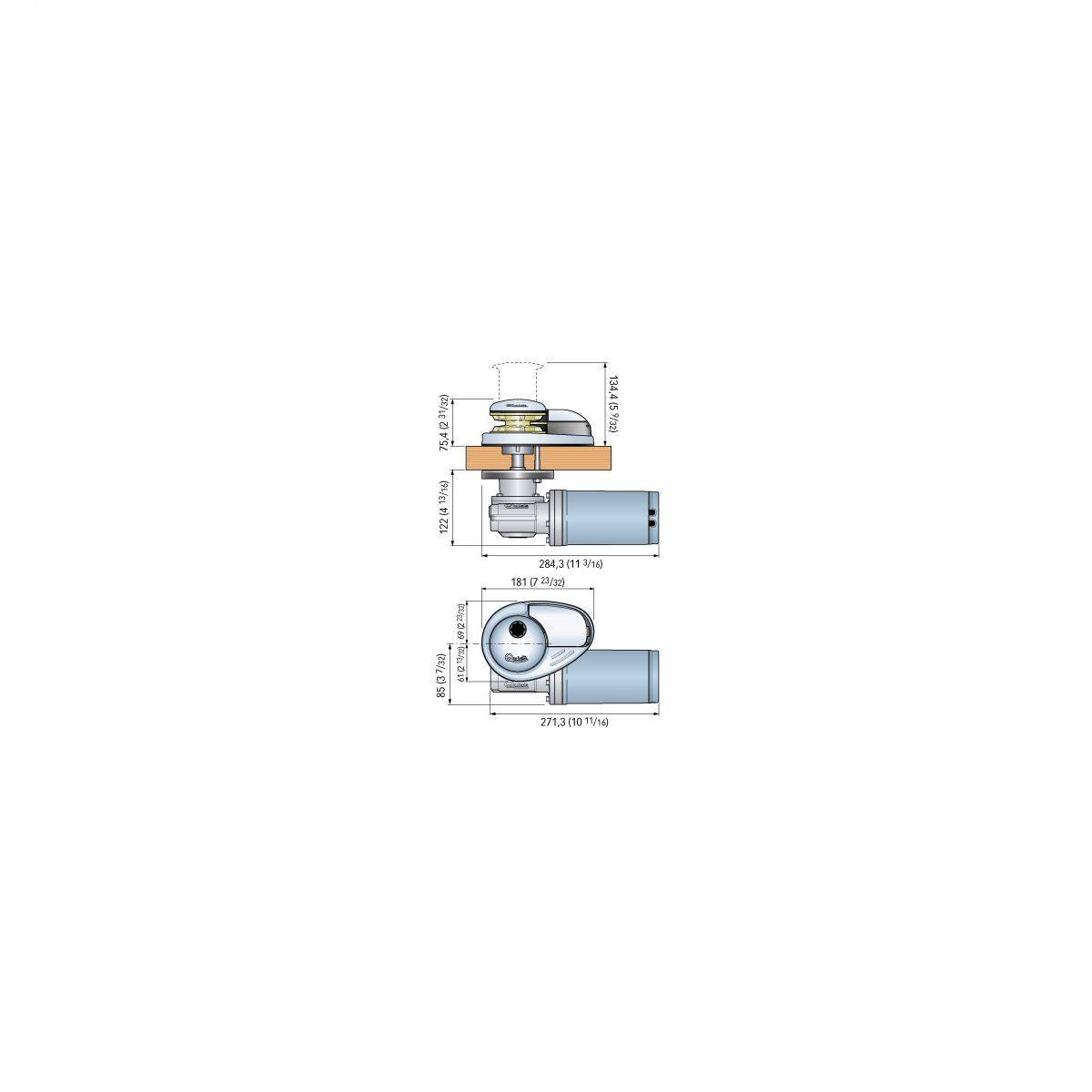

Deck thickness:
20÷30 mm (25/32"÷1" 3/16)
On request, shaft and studs can be supplied
for greater deck thicknesses.
........................................................................................................................
| Standard version |
DP1 500 / 500 D |
| Motor power |
500 W |
| Motor supply voltage |
12 V |
24 V |
| Maximum pull |
660 Kg | 1455 lb |
| Maximum working load |
200 Kg
441 lb |
220 Kg
485 lb |
| Working load |
65 Kg
143 lb |
70 Kg
154 lb |
| Current absorbtion @ working load (1) |
80 A |
40 A |
| Maximum chain speed (2) |
25,2 m/min
82,7 ft/min |
25,2 m/min
82,7 ft/min |
| Maximum chain speed @ working load(2) |
18,5 m/min
59,7 ft/min |
19,3 m/min
63,3 ft/min |
| Weight - DP1 - [without drum] |
7,4 Kg | 16.3 lb |
| Weight - DP1 D - [with drum] |
8,8 Kg | 19,4 lb |
| HI-SPEED version |
DP1 500 / 500 D |
| Motor power |
500 W |
| Motor supply voltage |
12 V |
24 V |
| Maximum pull |
600 Kg | 1323 lb |
| Maximum working load |
170 Kg
375 lb |
200 Kg
441 lb |
| Working load |
65 Kg
143 lb |
70 Kg
154 lb |
| Current absorbtion @ working load (1) |
100 A |
50 A |
| Maximum chain speed (2) |
39 m/min
128 ft/min |
39 m/m
128 ft/min |
| Maximum chain speed @ working load (2) |
28,5 m/min
93,5 ft/min |
28 m/min
91,9 ft/min |
| Weight - DP1 - [without drum] |
7,4 Kg | 16.3 lb |
| Weight - DP1 D - [with drum] |
8,8 Kg | 19.4 lb |
| 1) |
After an initial period of use |
| 2) |
Measurements taken with a gypsy for a 6 mm chain |
