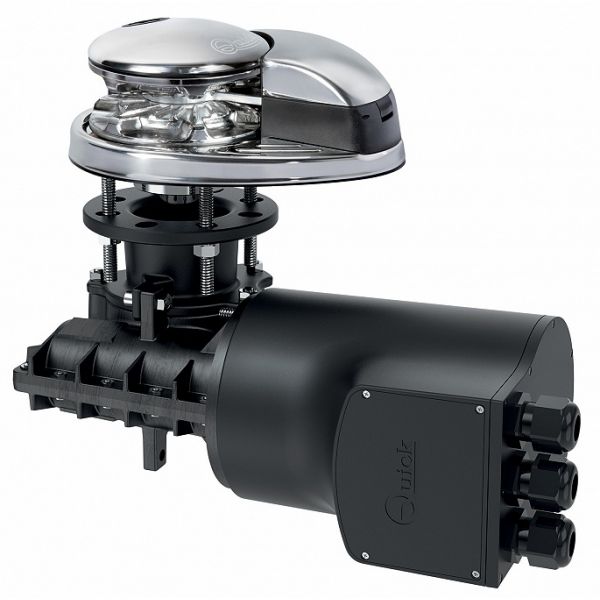

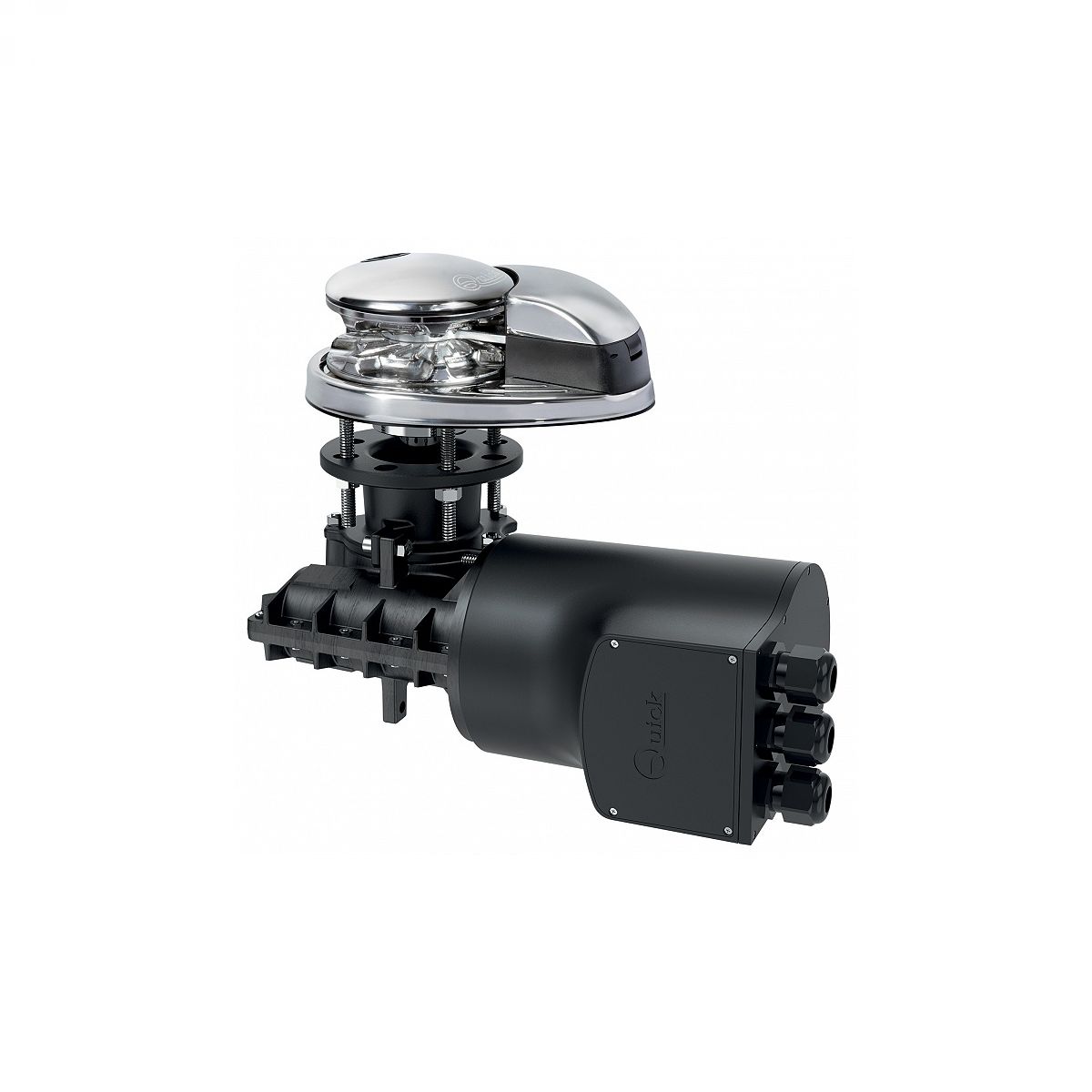

QUICK sidreno vitlo PRINCE DP2 1012 (1000W 12V) bez bubnja
(model sa bubnjem - na upit )
..............................................................................
NOVI MODEL - BAZA INOX, lančanik 6 ili 8mm (uključen sklopnik)
..............................................................................
- Vertical windlasses
- Stainless steel Aisi 316 base
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for
chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 Motor watertight (700 - 1000 W)
- IP66 Motor watertight (300 - 500 W)
- Anodized aluminium gearbox
Gypsy and Drum
Ø 105 mm / 4" 9/64
..............................................................................
DP2 1000/1000D
Deck thickness:
25÷50 mm (31/32"÷1" 31/32)
On request, shaft and studs can be supplied
for greater deck thicknesses.

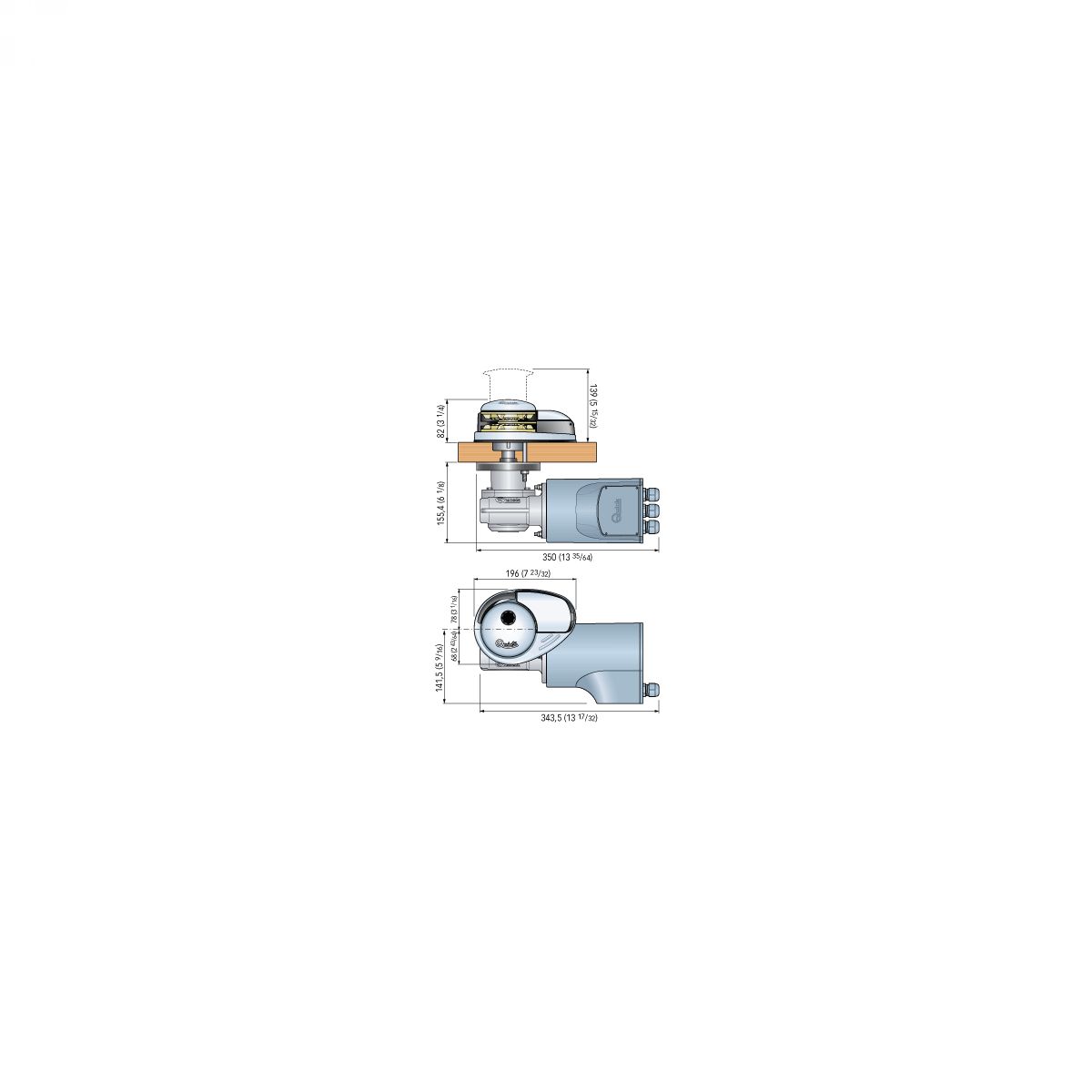

Dimensions in mm (inch)
............................................................................
| |
for boats from 5 to 13 meters (16 - 43 ft) |
| DP |
300 W |
5 - 7 m |
16 - 23 ft |
| DP |
500 W |
6 - 9 m |
20 - 30 ft |
| |
DP |
700 W |
7 - 10 m |
23 - 33 ft |
| |
DP |
1000 W |
10 - 13 m |
33 - 43 ft |
............................................................................
 |
6 mm |
7 mm - 1/4" |
8 mm |
5/16" |
 |
6 mm |
6 mm |
7 mm |
7 mm |
1/4" |
1/4" |
8 mm |
8 mm |
5/16" |
5/16" |
| DIN 766 |
ISO |
DIN 766 |
ISO |
G4 |
BBB |
DIN 766 |
ISO |
BBB |
G4 |
 |
1/2" (12,7 mm) |
| The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Quick®" system. |
| Standard version |
DP2 1000 / 1000 D |
| Motor power |
1000 W |
| Motor supply voltage |
12 V |
24 V |
| Maximum pull |
930 Kg / 2050 lb |
| Maximum working load |
420 Kg
926 lb |
480 Kg
1058 lb |
| Working load |
140 Kg
309 lb |
160 Kg
353 lb |
| Current absorbtion @ working load (1) |
130 A |
75 A |
| Maximum chain speed (2) |
31,2 m/min
102.4 ft/min |
30,1 m/min
98.8 ft/min |
| Maximum chain speed @ working load (2) |
16,5 m/min
54.1 ft/min |
19,1 m/min
62.7 ft/min |
| Weight - DP2 - [without drum] |
16,7 Kg / 36.8 lb |
| Weight - DP2 - [with drum] |
17,4 Kg / 38.4 lb |
| 1) |
After an initial period of use |
| 2) |
Measurements taken with a gypsy for a 8 mm chain |
