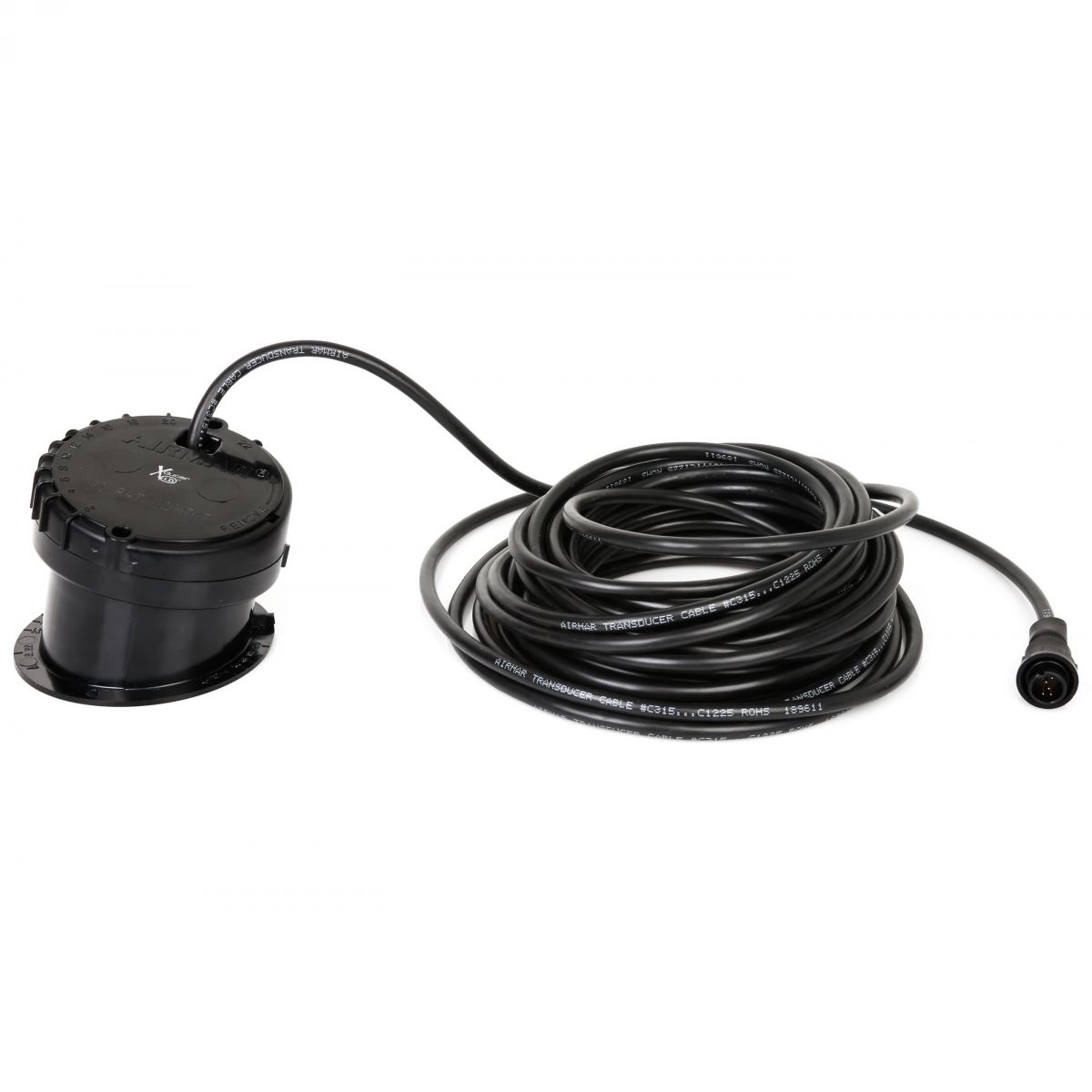

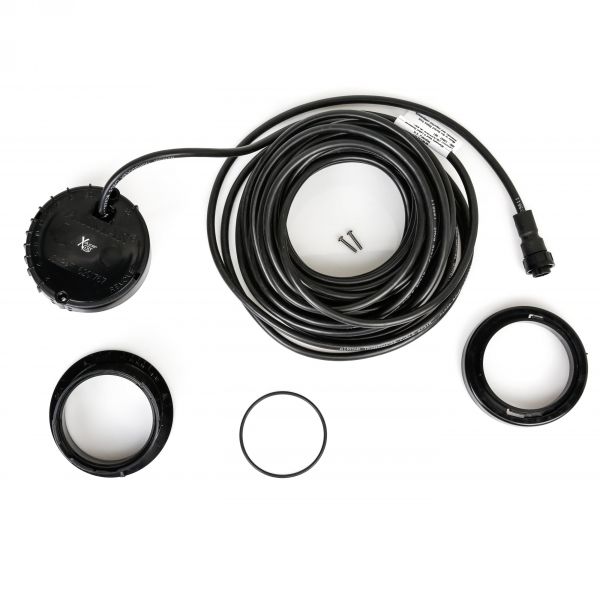

Sonda Airmar® P79 Traditional/CW
Part No: 000-13942-001
Features
- In-Hull
- 600W
- 50/200
- Adjusts to hull deadrise angles from 2° to 22°
- No holes to drill
- Depth only
- Recommended for solid fiberglass hulls
- Aheres to aluminum hulls under 3.8 mm (0.16”) thick
- Recommended for planing-hull power boats, trailered boats, rigid inflatable boats (RIBS), and racing sailboats
- No hull protrusions
- Boat Size: Up to 8 m (25’)
- Exclusive Xducer ID® technology
Specifications
- Weight: 2.3 kg (5 lb)
- Hull Deadrise: 0° to 22°
- Acoustic Window: Layered plastic urethane
Detailed Description

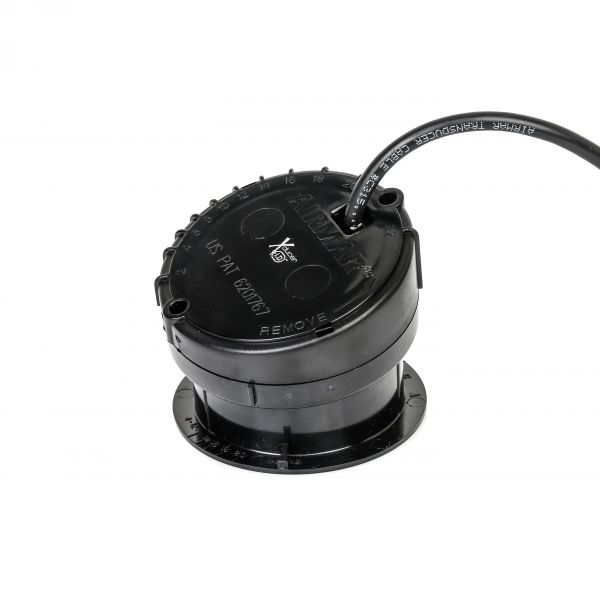

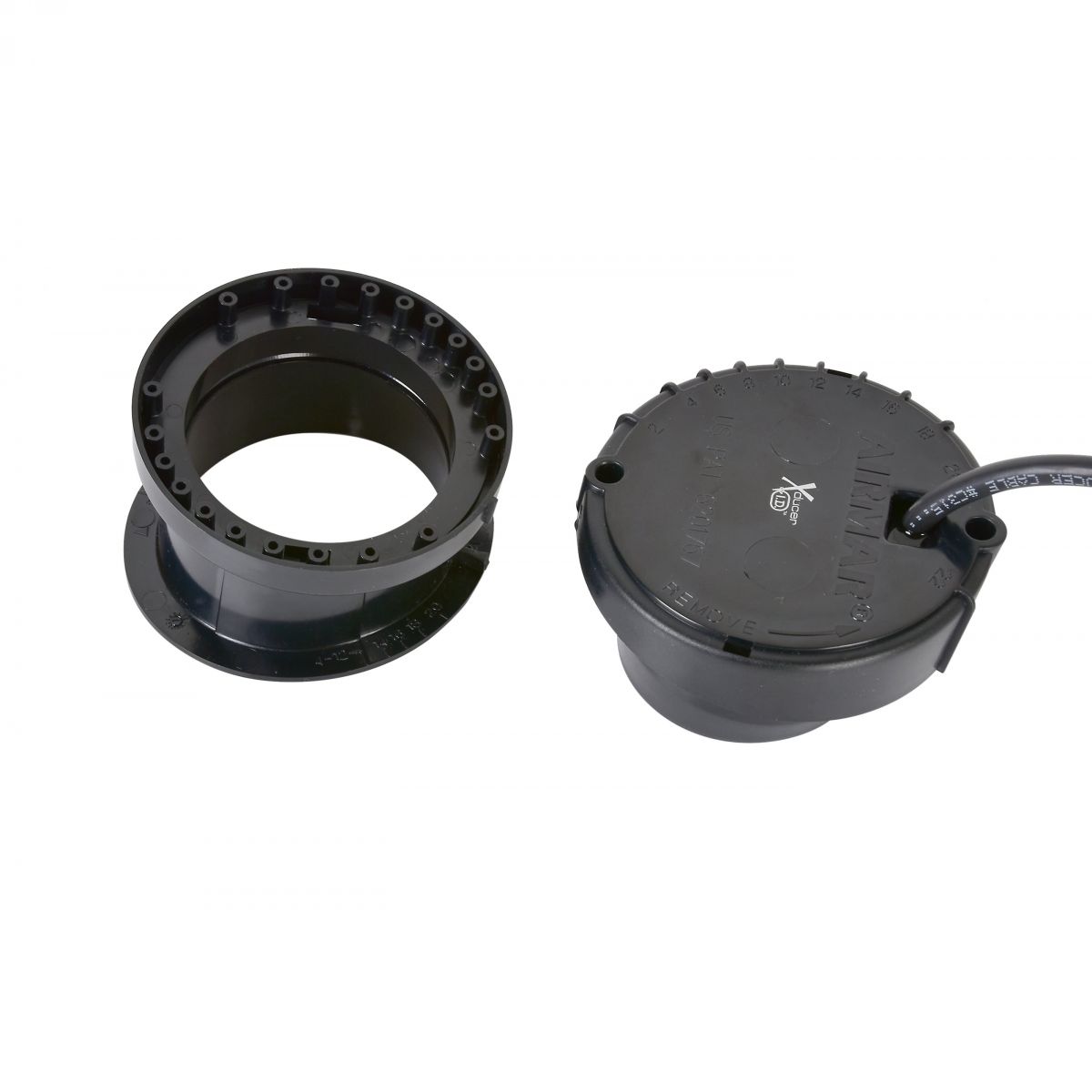

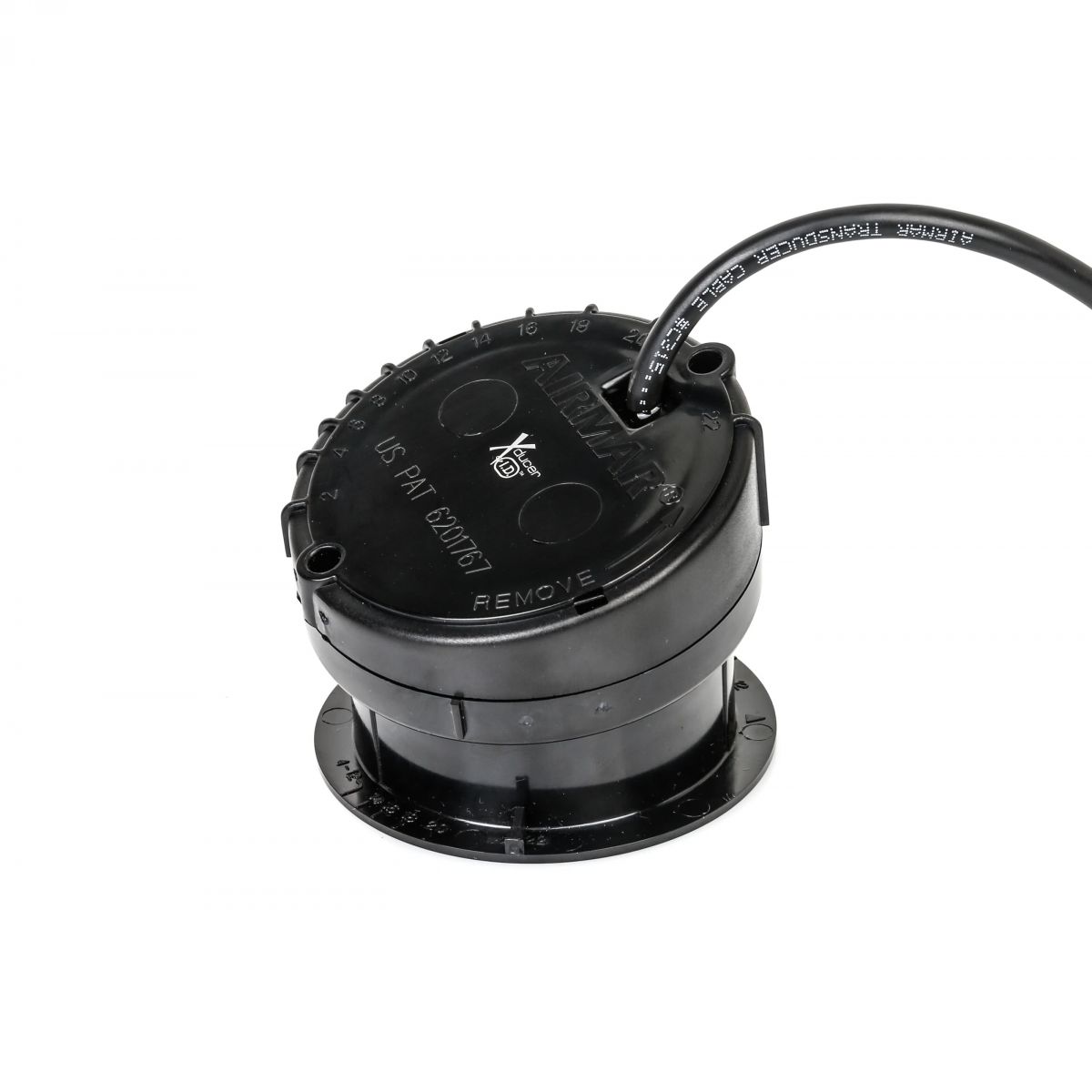

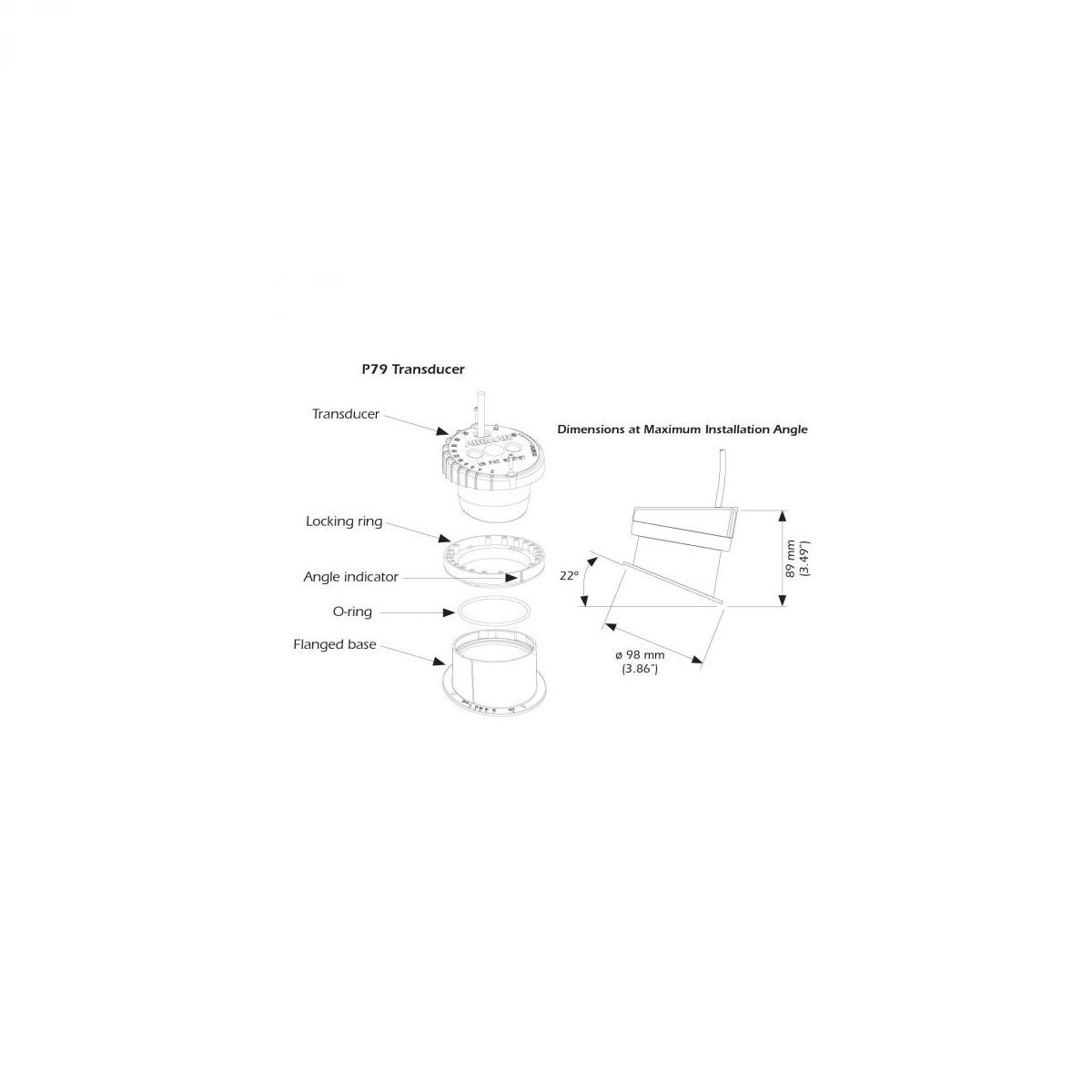

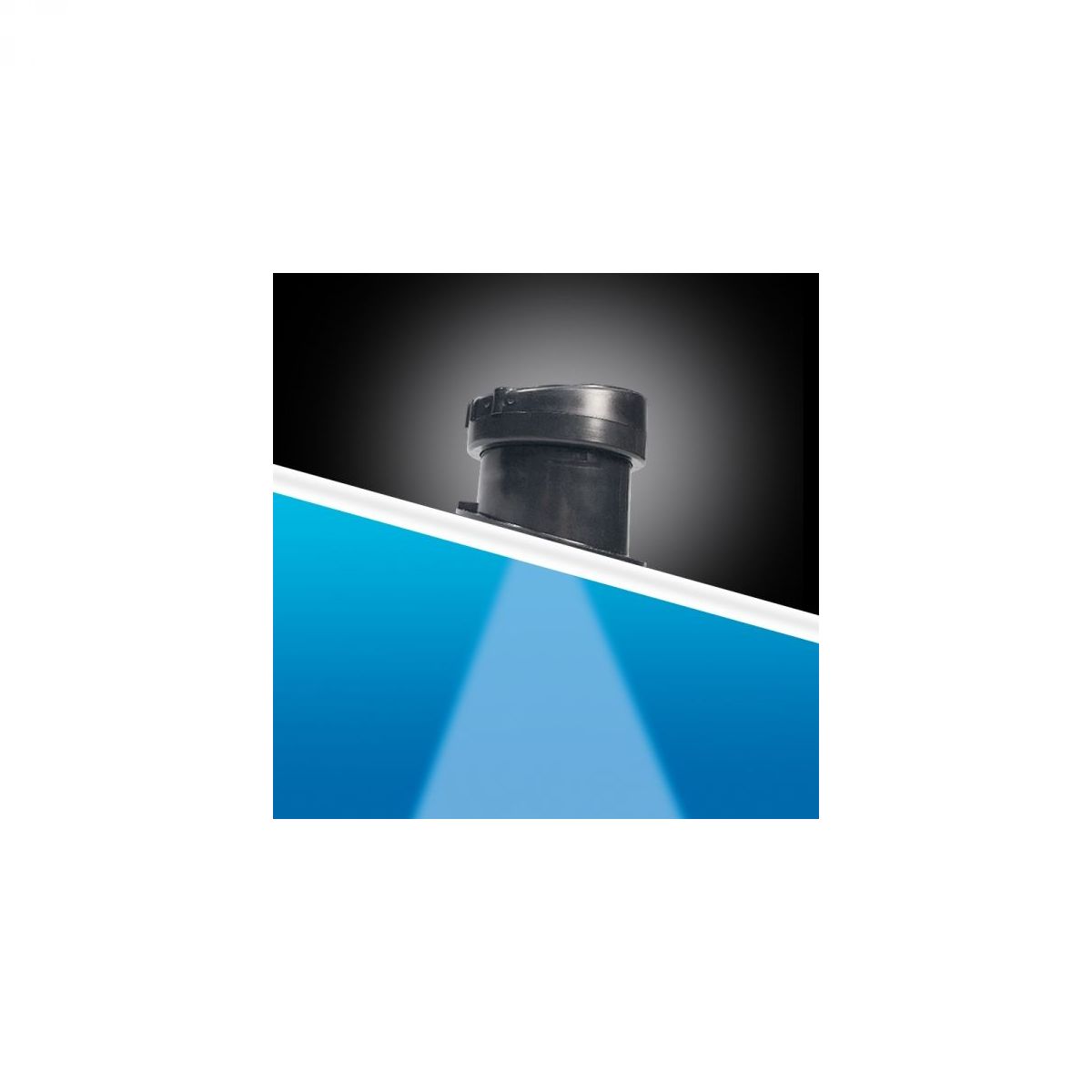

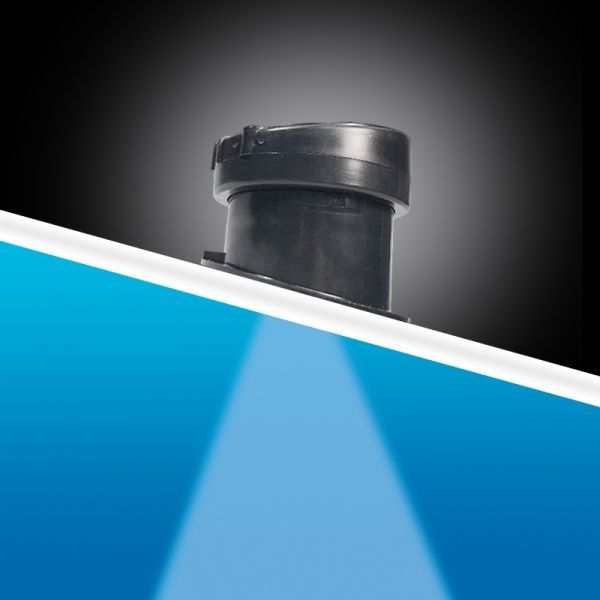

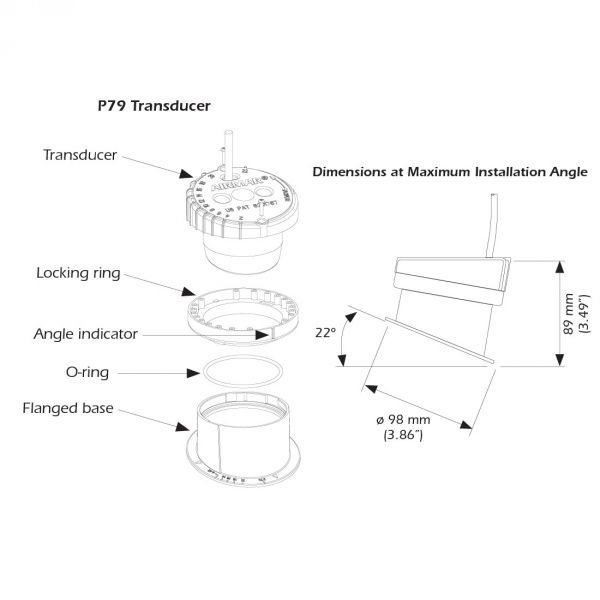

Our P79 in-hull transducer easily adjusts to hull dead rise angles up to 22 º. This ensures that the beam is vertically oriented to receive echoes, resulting in accurate depth readings. Unlike traditional "puck" type transducers, our P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance.
.............................................................................................................................
P79 Tradicionalni/CW u trupu
- Kategorija: Traditional/CW
- Snaga: 600W
- Funkcija: Dubina
- Frekvencija: 50/200 kHz
- Stil nosača: Unutar trupa
- Materijal kućišta: plastika
P79 Tradicionalni/CW u trupu
600 W
Naš P79 je dvofrekventni, samo dubinski pretvornik unutar trupa koji se lako prilagođava kutovima trupa do 22°. P79 uključuje plastičnu bazu za ugradnju koja je poravnata sa središnjom linijom i pričvršćena unutar trupa. Zatim se napuni netoksičnim antifrizom. Sonda je umetnuta u bazu i podešena za ispravan pomak mrtve strmine, osiguravajući da zraka pada ravno prema dolje za maksimalan povrat jeke. Rashladno sredstvo osigurava najbolji medij za prijenos kroz čvrstu stakloplastiku u okolnu vodu. Glavna prednost sondi u trupu nije izbočenje na vanjskoj strani trupa, što ga čini savršenim izborom za prikolice ili podignute brodove. Dizajniran za manje brodove do 8 m (25') s čvrstim trupom od stakloplastike.
Značajke
Samo dubina
600 W
Dvofrekventni element:
50 kHz sa širinom snopa od 45° za performanse dubine do 294 m (1000')
200 kHz sa širinom snopa od 12° za performanse dubine do 180 m (600')
Prilagođava se kutovima trupa do 22°
Montaža bez bušenja
Preporučeno za motorne čamce s glisirajućim trupom, čamce s prikolicom, krute čamce na napuhavanje (RIBS) i regatne jedrilice
Bez izbočina trupa
Kućište sonde od uretana s podesivom plastičnom bazom za montažu
Dostupan samo izborni model od 200 kHz
Instaliran pomoću ručno podesive baze. Nije potrebno rezanje.
Tehnički podaci
- Težina: 2,3 kg (5 lb.)
- Preporučena duljina plovila: do 8 m (25')
- Materijal trupa: Samo čvrsta stakloplastika
- Mrtvi kut trupa: do 22°
- Akustični prozor: slojeviti plastični uretan
- Uključuje: Podesivo postolje za montažu
P79 Traditional/CW In‑hull
- Category: Traditional/CW
- Power: 600W
- Function: Depth
- Frequency: 50/200 kHz
- Mount Style: In-Hull
- Housing Material: Plastic
P79 Traditional/CW In‑hull
600 W
Our P79 is a dual-frequency, depth only, in-hull transducer that easily adjusts to hull deadrise angles up to 22°.The P79 includes a plastic mounting base which is aligned to the centerline and secured inside the hull. Then it is filled with nontoxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, insuring the beam is shooting straight down for maximum echo returns. The coolant provides the best medium to transmit through the solid fiberglass and into the surrounding water. The major benefit of in-hull transducers is no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 8 m (25') with a solid fiberglass hull.
Features
Depth only
600 W
Dual-frequency element:
50 kHz with a 45° beamwidth for depth performance to 294 m (1,000')
200 kHz with an 12° beamwidth for depth performance to 180 m (600')

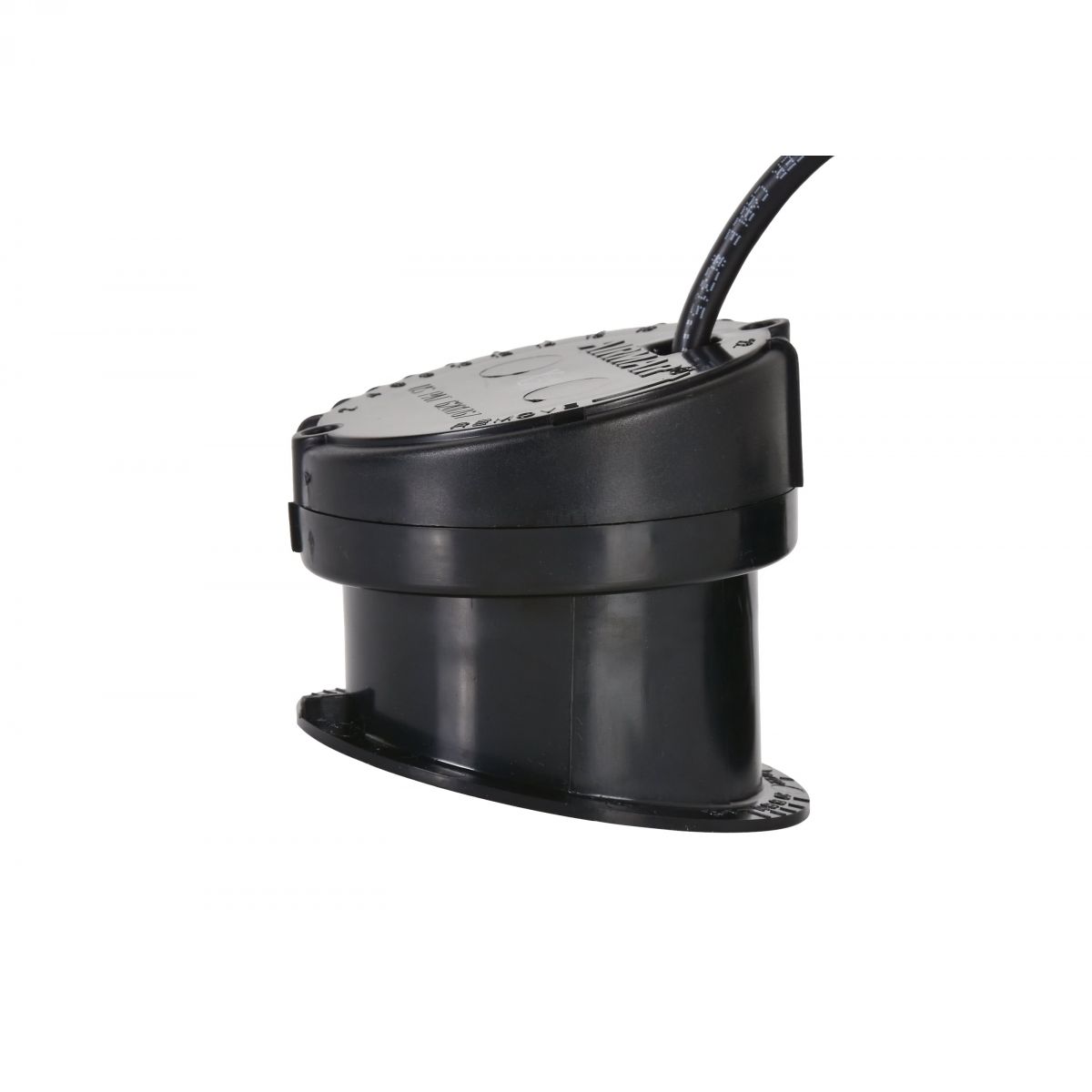

Adjusts to hull deadrise angles up to 22°
Drill-free installation
Recommended for planing-hull powerboats, trailered boats, rigid inflatable boats (RIBS), and racing sailboats
No hull protrusions
Urethane transducer housing with adjustable, plastic, mounting base
Optional 200 kHz only model available
Installed with a hand-adjustable base. No cutting is needed.
Specifications
- Weight: 2.3 kg (5 lb.)
- Recommended Boat Length: Up to 8 m (25')
- Hull Material: Solid fiberglass only
- Hull Deadrise: Up to 22°
- Acoustic Window: Layered plastic urethane

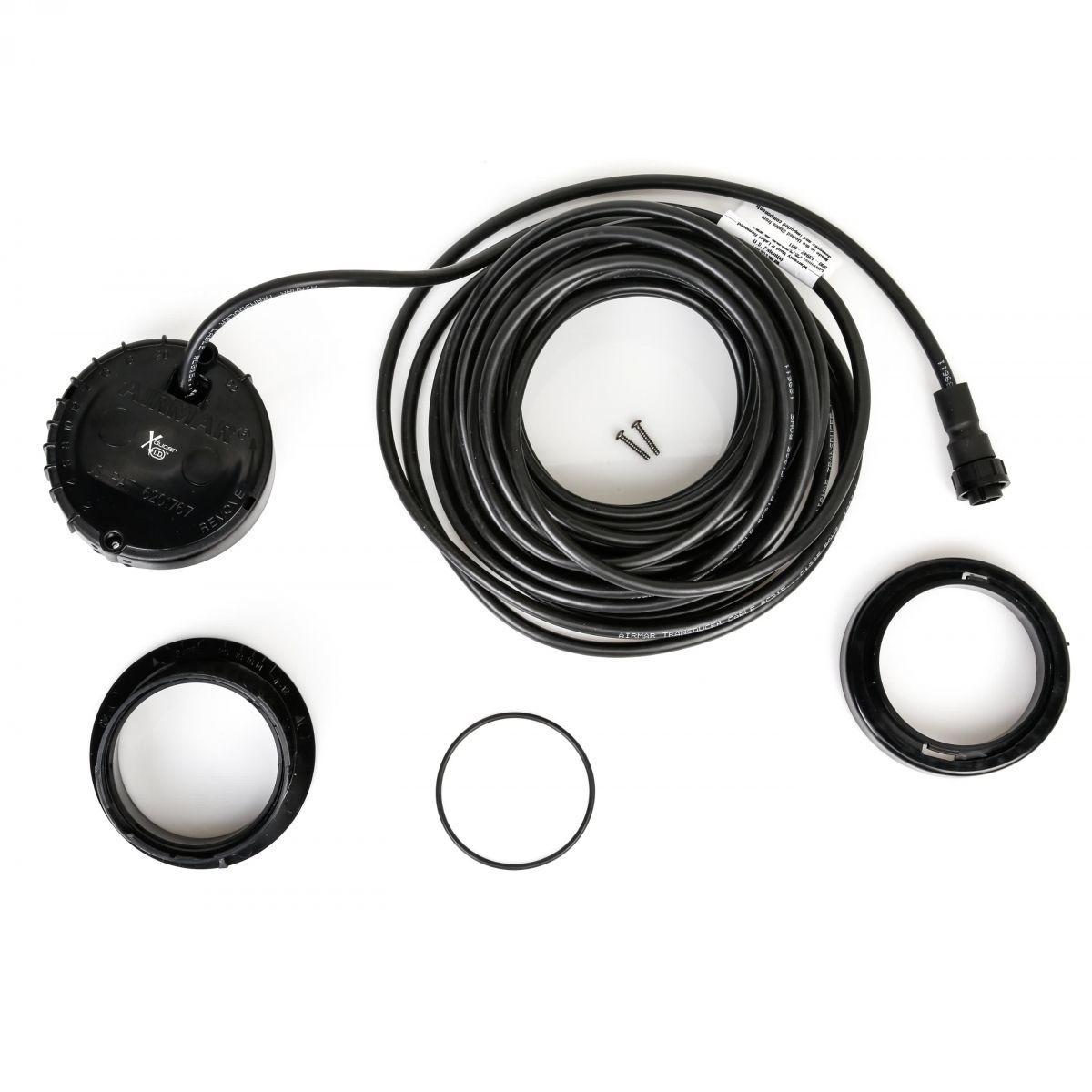

- Includes: Adjustable mounting base
