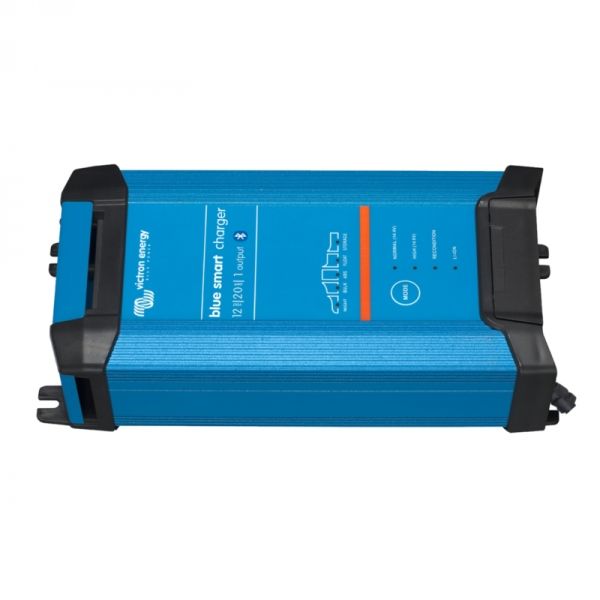

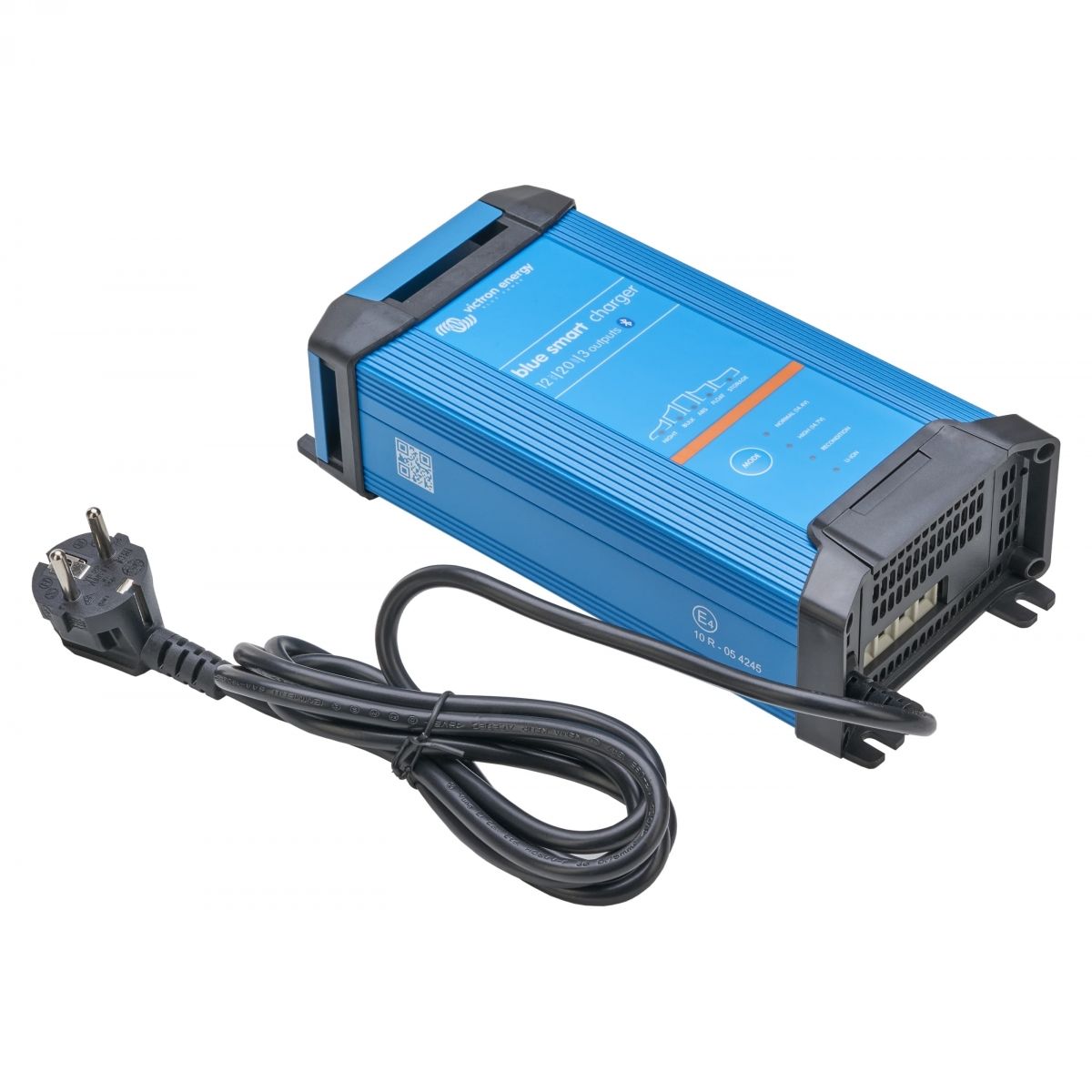

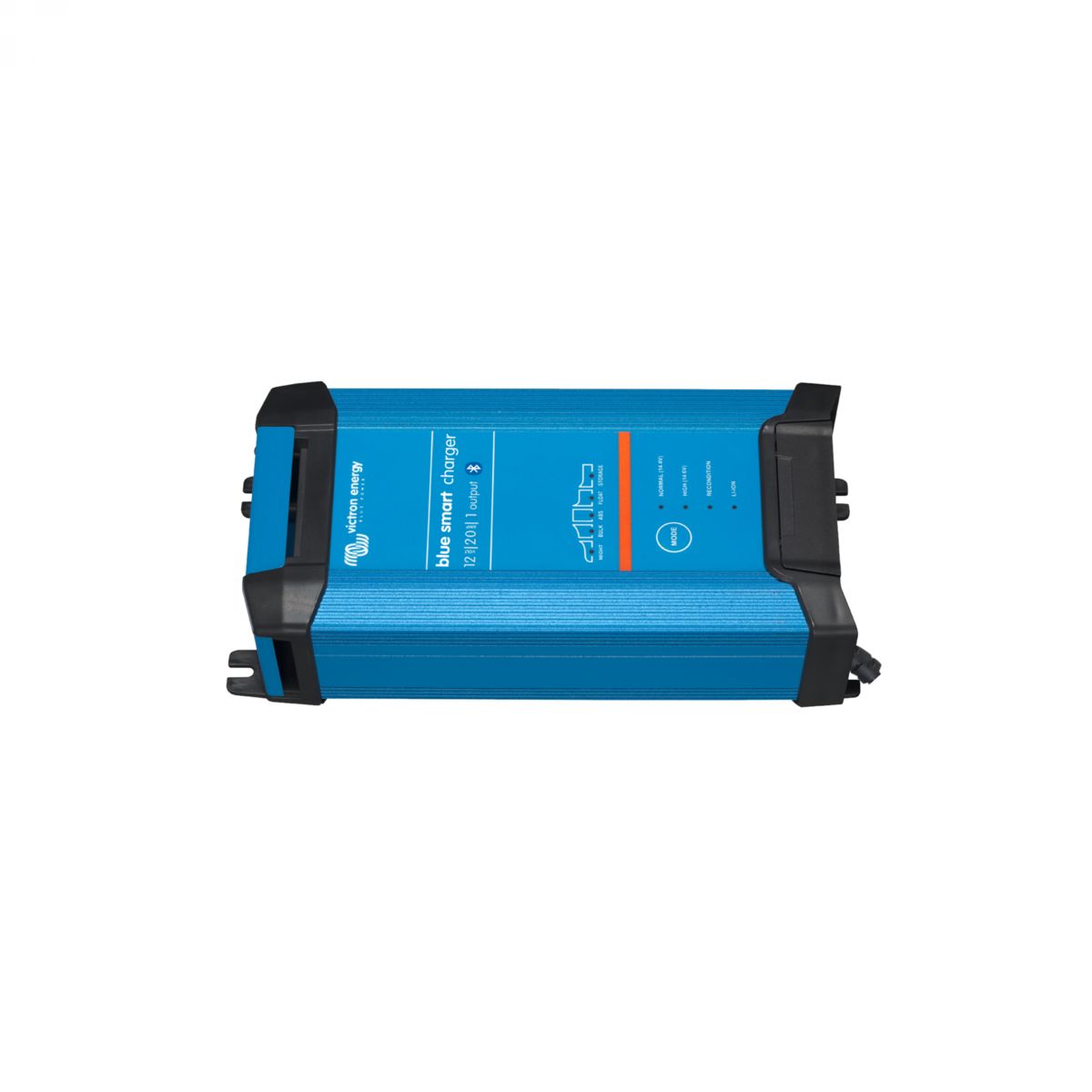

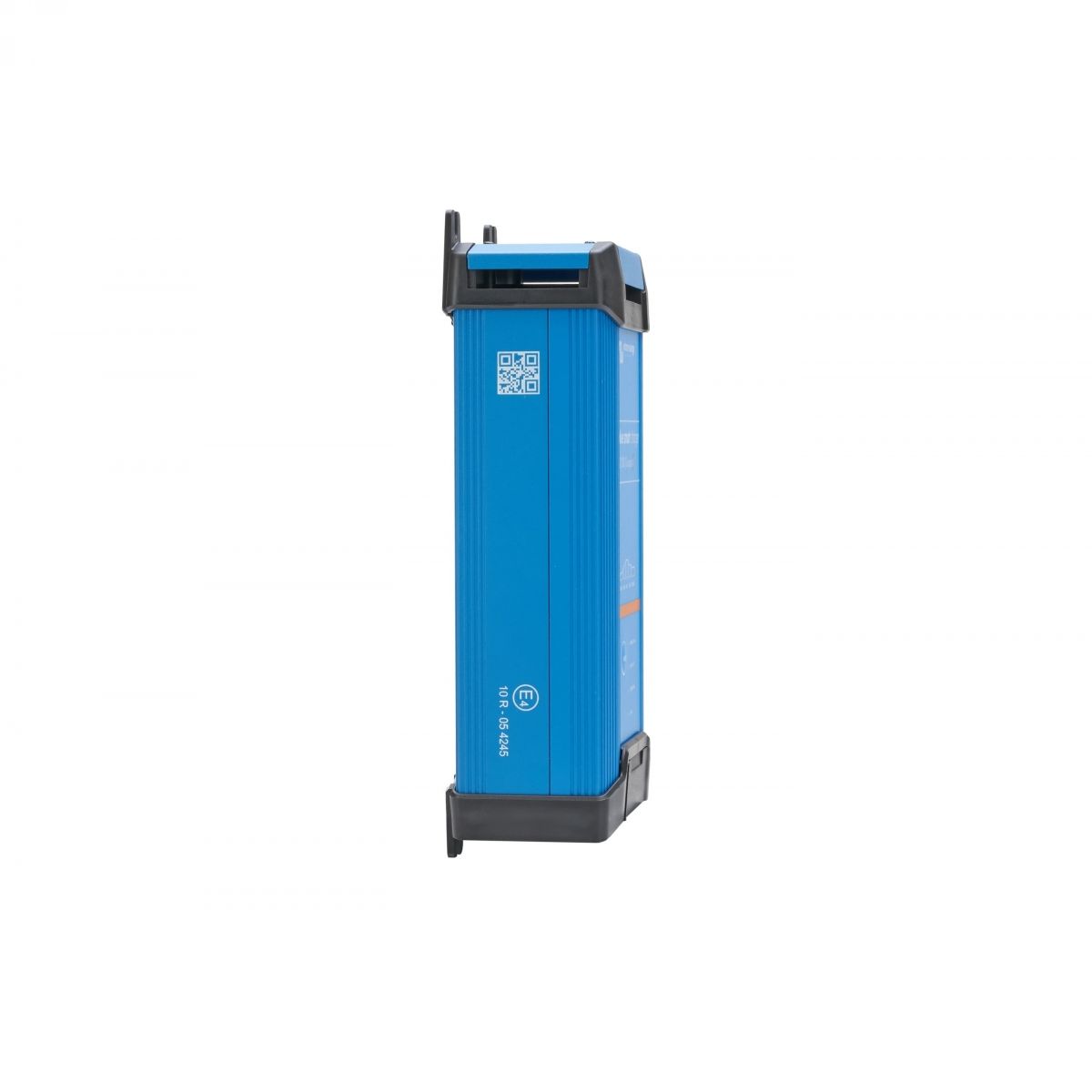

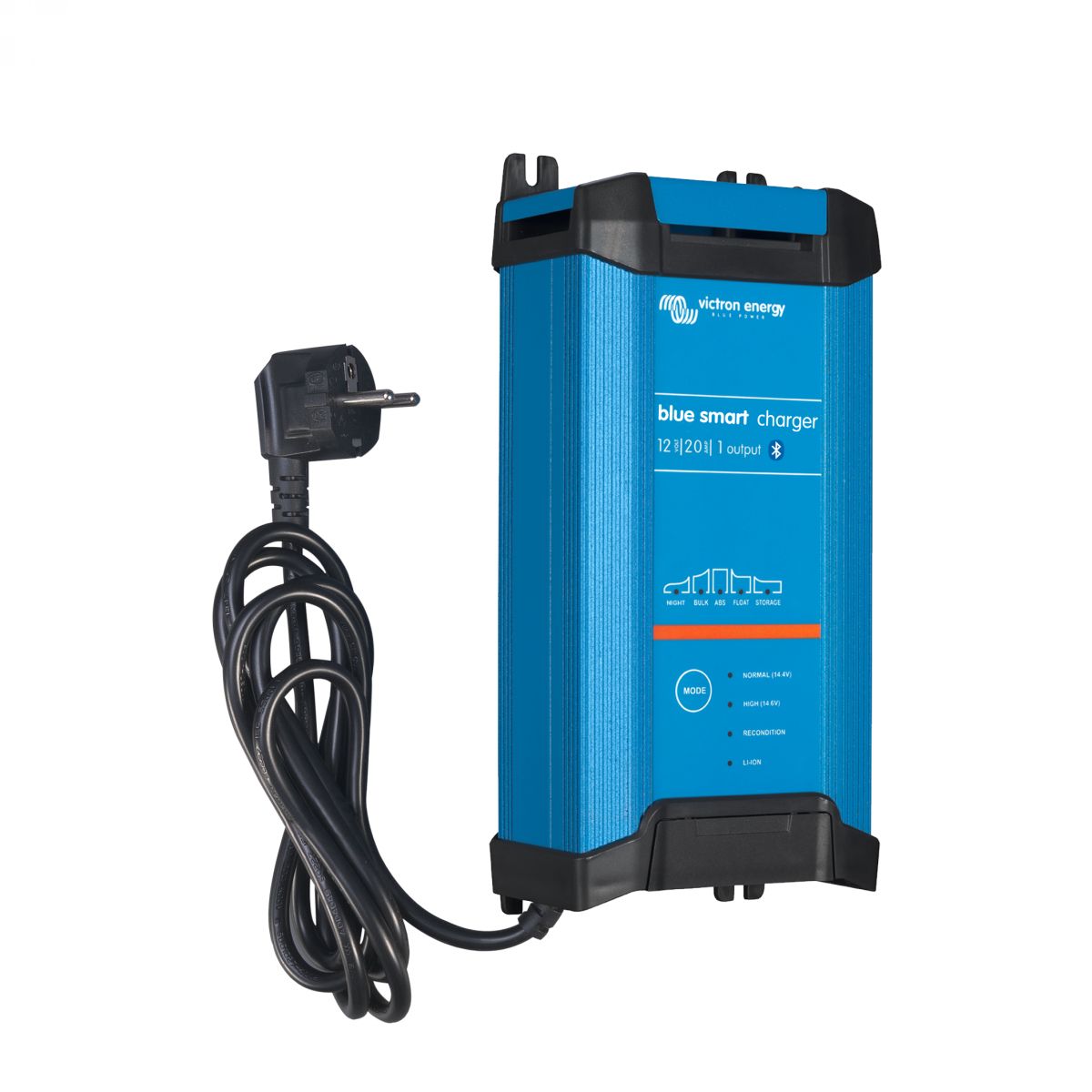

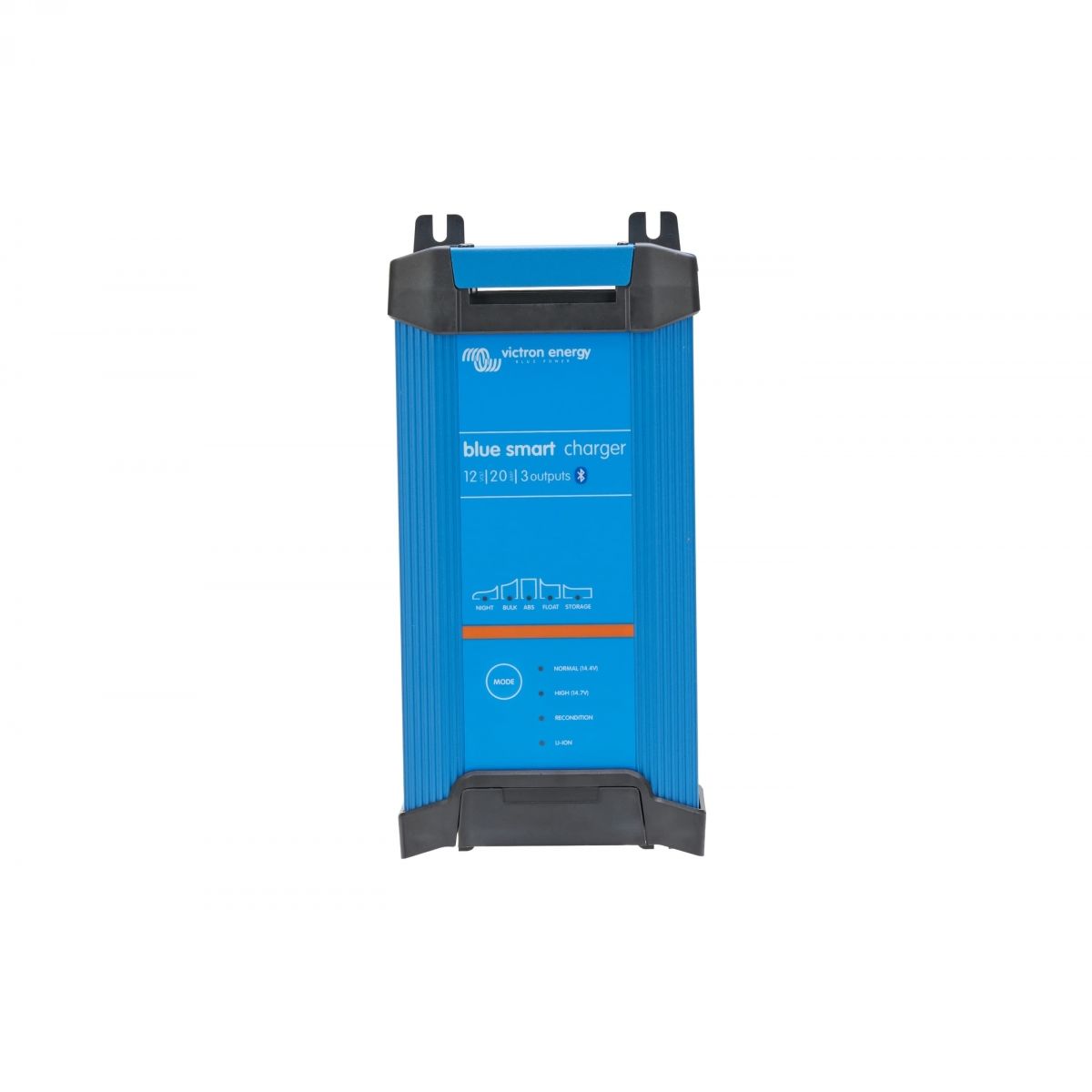

Victron Energy Bluesmart IP22 12V/20A/3izlaza 230V punjač akumulatora
Šifra art. BPC122044002
20A Blue Smart IP22 6-stupanjski punjač baterija s ugrađenim Bluetoothom je punjač profesionalne kvalitete s tehnologijom prilagodljivog punjenja kojom upravlja mikroprocesor. Softver za upravljanje baterijom prati način na koji se baterija koristi i automatski optimizira proces punjenja kako bi odgovarao obrascu korištenja, čime se baterija održava u najboljem mogućem stanju.
Ovaj pametni, višestupanjski punjač radi s učinkovitošću do 93% i stvara do 4x manje topline od nekih drugih usporedivih punjača. Kada je baterija potpuno napunjena i nije korištena 24 sata, uključuje se način pohrane i potrošnja energije pada na manje od 0,5 W. Hlađenje se postiže gotovo nečujnim ventilatorom, a jedinica je potpuno zaštićena od previsoke temperature, kratkog spoja i obrnutog polariteta.
Ugrađeni Bluetooth omogućuje praćenje statusa vašeg punjača putem bilo kojeg Android ili Apple uređaja, a sve postavke punjača mogu se konfigurirati pomoću aplikacije VictronConnect.
Prikladno za sve olovne baterije (osobito baterije za slobodno vrijeme ili 'dubokog ciklusa') i litij-ionske baterije koje se koriste u karavanima, kamperima, kamperima, automobilima, čamcima, terenskim, industrijskim i komercijalnim vozilima
Preporuča se za akumulatore kapaciteta u rasponu od 100 - 150Ah
Značajke
- Prilagodljivo punjenje u 6 stupnjeva (testiranje - masovno - apsorpcija - ponovno stanje - plutajuće - skladištenje)
- Visoka učinkovitost i nisko stvaranje topline
- Puni sve olovne baterije (natopljene, AGM, Gel) i litij-ionske baterije
- NOĆNA i NISKA postavka - smanjuje na 50% nominalne snage i bez ventilatora za tihi rad
- Gotovo tihi ventilator
- Zaštita od previsoke temperature
- Zaštita od kratkog spoja za DC izlaz
- Zaštita od obrnutog polariteta za AC ulaz (ATO nožni osigurač)
- Zeleni LED za označavanje UKLJUČENOSTI
- Žuti LED za indikaciju statusa napunjenosti (brzo treperi masovno / upijanje - sporo trepće / pluta čvrsto / skladištenje isključeno)
- Vijčane stezaljke za spajanje
- Može se koristiti kao napajanje kada nije priključena baterija
- Punjač smanjuje izlaznu struju pri visokoj temperaturi umjesto da se isključi
- Postavljanje, konfiguracija i nadzor putem Bluetooth veze
- 5 godina jamstva proizvođača
.................................................................................................................................
Bluetooth omogućen - Blue Smart IP22 punjač bežično je rješenje za praćenje napona i struje, promjenu postavki i ažuriranje punjača kada nove značajke postanu dostupne.
Visoka učinkovitost - Uz učinkovitost do 94%, ovi punjači generiraju do četiri puta manje topline u usporedbi s industrijskim standardom. A kada je baterija potpuno napunjena, potrošnja energije smanjuje se na 0,5 W, nekih pet do deset puta bolje od industrijskog standarda
Prilagodljivi algoritam punjenja u 6 stupnjeva: test - masovno - apsorpcija - popravak - float - skladištenje. Blue Smart Charger ima mikroprocesorski kontrolirano 'adaptivno' upravljanje baterijom. Prilagodljiva značajka automatski će optimizirati proces punjenja u odnosu na način na koji se baterija koristi.
Način skladištenja - manje održavanja i starenja kada se baterija ne koristi. Način pohranjivanja uključuje se kad god se baterija ne isprazni tijekom 24 sata. U načinu pohranjivanja, napon plovka smanjen je na 2,2 V/ćeliji (13,2 V za bateriju od 12 V) kako bi se smanjilo stvaranje plina i korozija pozitivnih ploča. Jednom tjedno napon se podiže natrag na razinu apsorpcije kako bi se baterija 'izjednačila'. Ova značajka sprječava raslojavanje elektrolita i sulfatizaciju, glavni uzrok ranog kvara baterije.
Li-ionske (LiFePO₄) baterije - LiFePO₄ baterije se pune jednostavnim algoritmom bulk – apsorpcija – float.
NIGHT i LOW postavka - Kada je u NIGHT ili LOW modu, izlazna struja se smanjuje na max. 25% nazivne snage i punjač će biti potpuno bešuman. NOĆNI način rada automatski se isključuje nakon 8 sati. Način LOW može se prekinuti ručno.
Zaštićen od pregrijavanja - Izlazna struja će se smanjiti kako temperatura poraste do 50°C, ali Blue Smart Charger neće otkazati.
Jedanaest LED dioda za indikaciju statusa - Algoritam punjenja: TEST / BULK / APSORPCIJA / RECONDITION / FLOAT / STORAGE / READY.
Victron Energy Bluesmart IP22 12V/20A/3izlaza 230V punjač akumulatora
The 20A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor-controlled, adaptive charging technology. The battery management software monitors the way the battery is used and automatically optimises the charging process to suit the usage pattern, so maintaining your battery in the best possible condition.
This smart, multi-stage charger operates at up to 93% efficiency and generates up to 4x less heat than some other comparable chargers. When the battery is fully charged and has not been used for 24 hours, storage mode kicks in and power consumption drops to less than 0.5W. Cooling is achieved by a near-silent fan and the unit is fully protected against over-temperature, short circuit and reverse polarity.
Built-in Bluetooth allows you to monitor the status of your charger via any Android or Apple device and all settings of the charger can be configured with the VictronConnect app.
Suitable for all lead-acid batteries (particularly leisure or 'deep-cycle' batteries) and Lithium-ion batteries used in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles
Recommended for batteries with a capacity in the range of 100 - 150Ah
Features
- 6-stage adaptive charging (Test - Bulk - Absorption - Recondition - Float - Storage)
- High efficiency and low heat generation
- Charges all lead-acid batteries (flooded, AGM, Gel) and Lithium-Ion batteries
- NIGHT and LOW setting - reduces to 50% nominal output and no-fan for silent operation
- Near-silent fan
- Over-temperature protection
- Short-circuit protection for DC output
- Reverse polarity protection for AC input (ATO blade fuse)
- Green LED to indicate Power ON
- Yellow LED for charge status indication (Bulk-fast blinking / Absorption-slow blinking / Float-solid / Storage-off)
- Screw terminals for connection
- Can be used as a power supply when no battery is connected
- Charger reduces output current at high temp rather than shut-down
- Setup, configuration and monitoring by Bluetooth connection
- 5-year manufacturer's warranty
.....................................................................................................................................
Bluetooth Enabled - The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High Efficiency - With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard
Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage. The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode - less maintenance and aging when the battery is not in use. The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Li-ion (LiFePO₄) batteries - LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.
NIGHT and LOW setting - When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating - Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication - Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
Victron Energy Bluesmart IP22 12V/20A/3izlaza 230V punjač akumulatora
- Input voltage rating: 180 - 265V AC
- Output voltage (Absorption/Float/Storage): 14.2-14.7/13.5-13.8/13.2-13.5 VDC
- Max. charge current: 20A
- NIGHT or LOW charge current: 10A
- No. charging stages: 6 (adaptive)
- No. outputs: 3 (and a common negative)
- Minimum battery capacity: 75Ah
- 'No load' power consumption: 0.5W
- Operating temperature: -40ºC to +60ºC (full rated output up to +40ºC, then output reduces)
- Cooling method: Fan-assisted
- Mains connection: BS1363 UK 3-pin plug on 1.5m cable

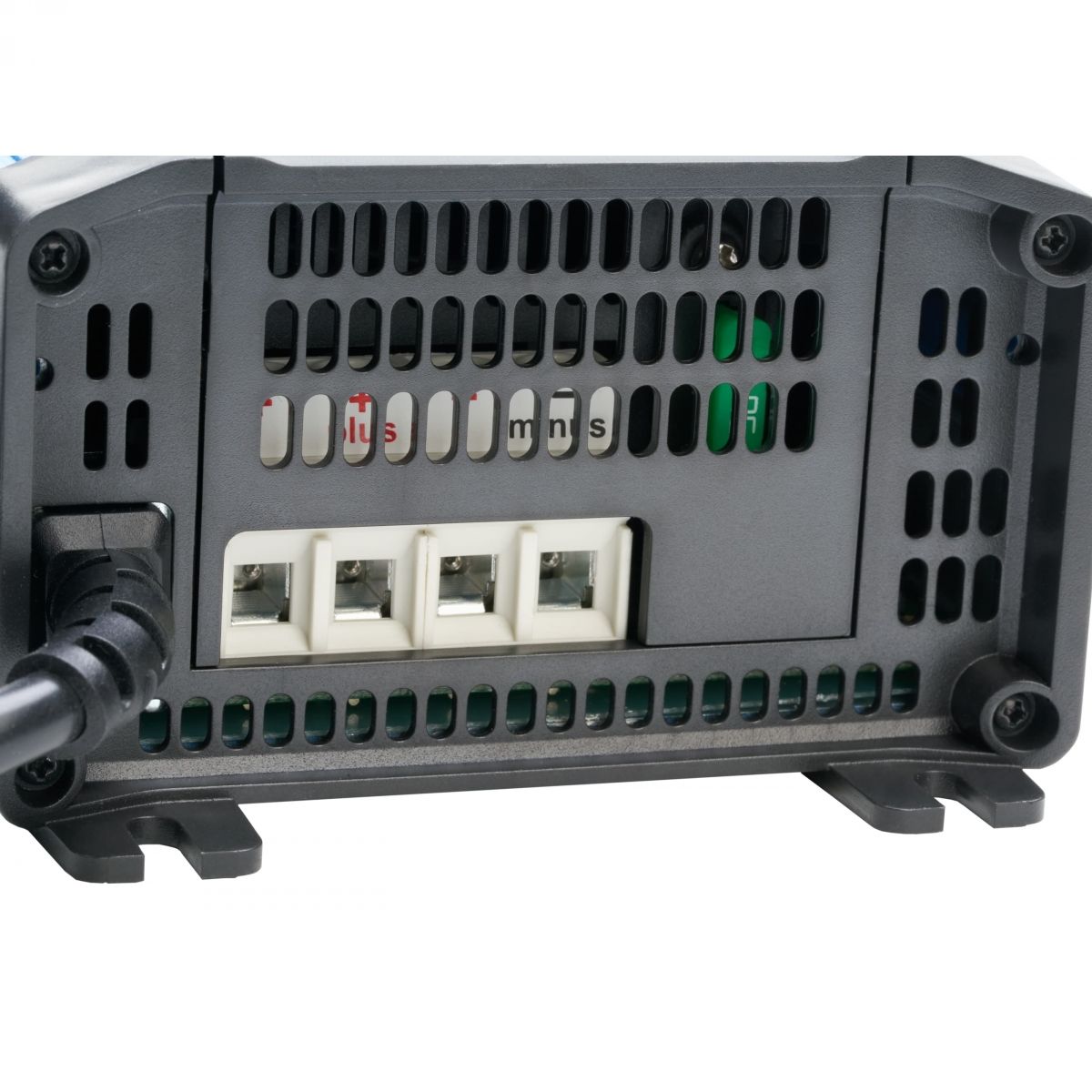

- Battery connection: Screw clamp terminals for max. 16mm² cable (note: output cables and connections not included)
- Ingress Protection rating: IP22
- Body material: Aluminium (blue RAL5012)

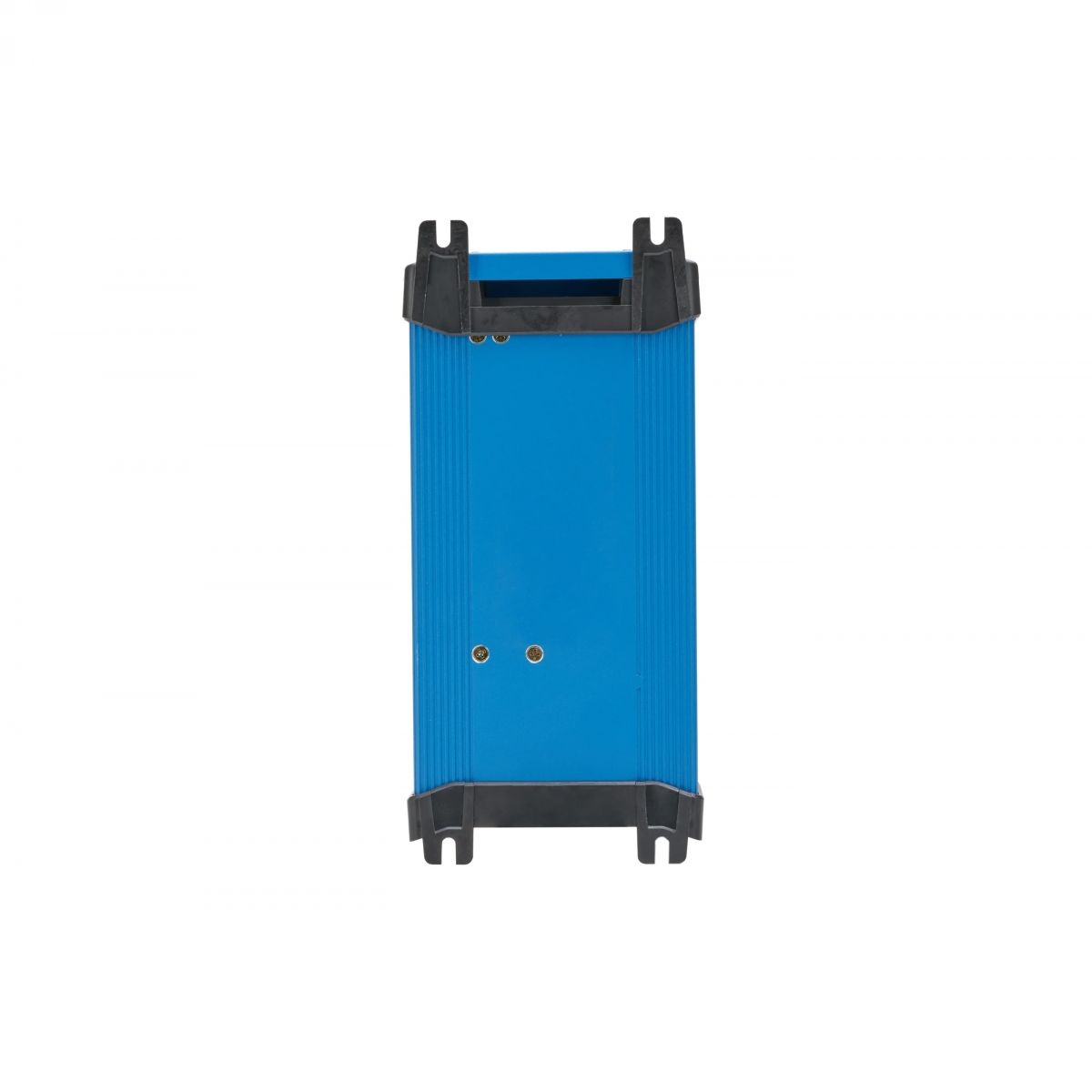

- Mounting holes:(download datasheet in downloads for details)
- Weight: 1.3kg
- Overall dimensions: 235 (L) x 108 (W) x 65 (H) mm
